997301 - Ariens Zenith E 60" Zero-Turn Mower, Electric, Side-Discharge (SN: 000101 - 000299) Wheels Parts Diagram

Zenith E 60" Zero-Turn Mower, Electric, Side-Discharge

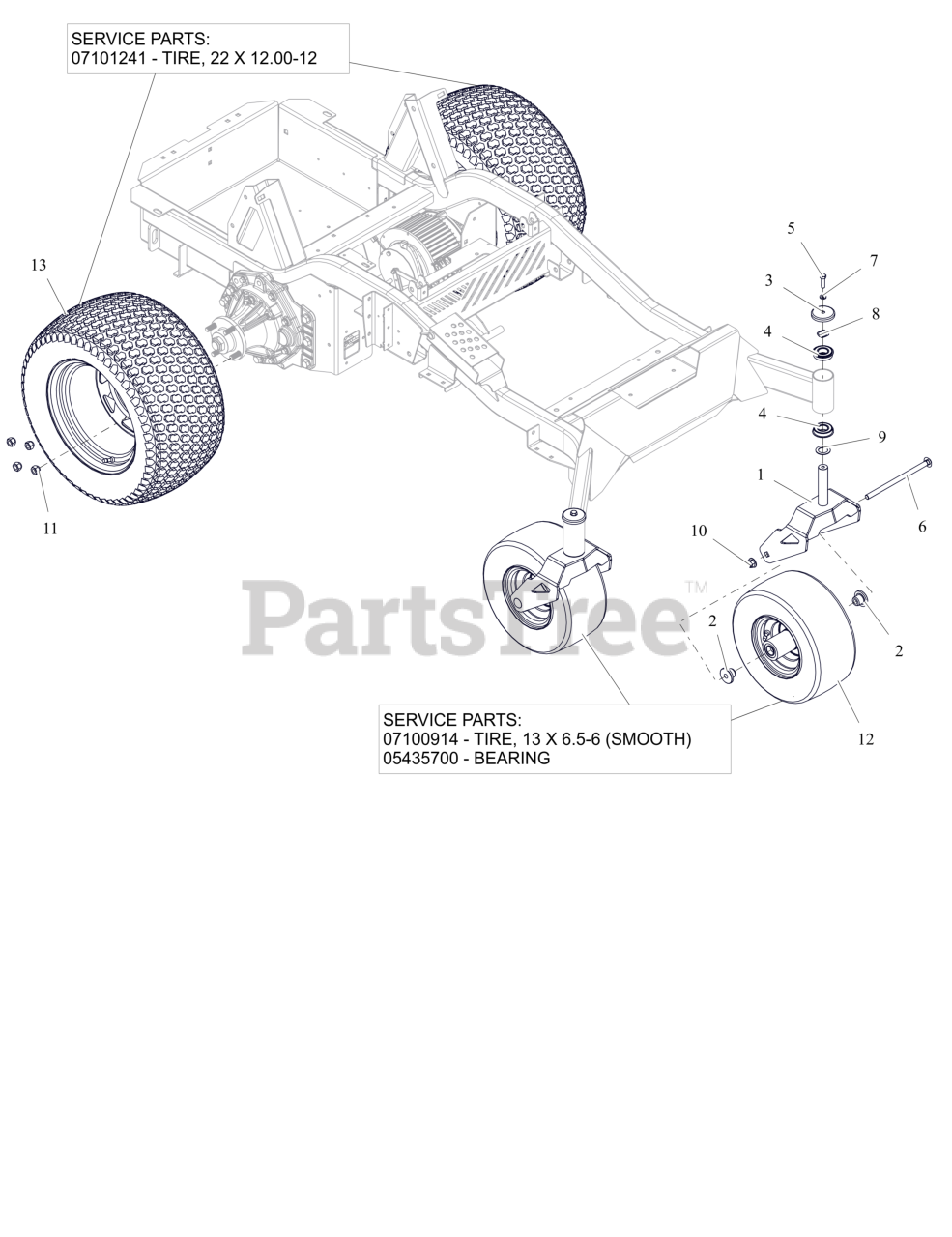

Wheels Parts Diagram

  • Title

1

Ariens 09187059

WLDMT, CASTER FORK-HD (ORANGE)

$115.99

$

Usually ships in 4-12 days

0

2

Ariens 00675300

SPACER, FRONT WHEEL

$9.99

$

In Stock, Qty 20+

0

3

Ariens 05198400

SHIELD, AXLE BEARING

$7.99

$

In Stock, only 1 left!

0

4

Ariens 05400728

BEARING, BALL -2.000 OD X 1.000 ID X .5625 W/RING

$14.99

$

In Stock, Qty 20+

0

5

Ariens 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

6

Ariens 06200322

BLT, RHSN .50-13X9.00 G5 ZCC
(Superseded to 06200510)

$9.49

$

In Stock, Qty 20+

0

7

Ariens 06300120

WSHR, LK-HVY .375X.115 ZCC

$5.49

$

In Stock, Qty 18

0

8

Ariens 06401030

WSHR-WAVE 1.0X1.25X.028 .145FH

$6.99

$

In Stock, Qty 20+

0

9

Ariens 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$4.99

$

In Stock, Qty 20+

0

10

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$2.49

$

In Stock, Qty 20+

0

11

Ariens 06500926

NUT, WHEEL .50-20 ZCC

$2.49

$

In Stock, Qty 20+

0

12

Ariens 07101226

ASM, WHL/TIRE 13X6.50-6

$143.99

$

In Stock, Qty 15

0

12

Ariens 07100914

LAWN TIRE FRONT, 13X6.50-6 SMOOTH

Note: Component Service Part

$76.99

$

In Stock, only 4 left!

0

12

Ariens 05435700

BRG, 25MM ID X 52MM OD X 15MM

Note: Component Service Part

$26.99

$

In Stock, Qty 20+

0

13

Ariens 07101227

ASM, WHL/TIRE 22X12.00-12 K500

$300.99

$

In Stock, only 1 left!

0

13

Ariens 07101241

TIRE, 22X12.00-12

Note: Component Service Part

$164.99

$

Usually ships in 4-12 days

0
