997302 - Ariens Zenith E 60" Zero-Turn Mower, Electric, Rear-Discharge (SN: 000300 & Above) Electrical - RD Parts Diagram

Zenith E 60" Zero-Turn Mower, Electric, Rear-Discharge

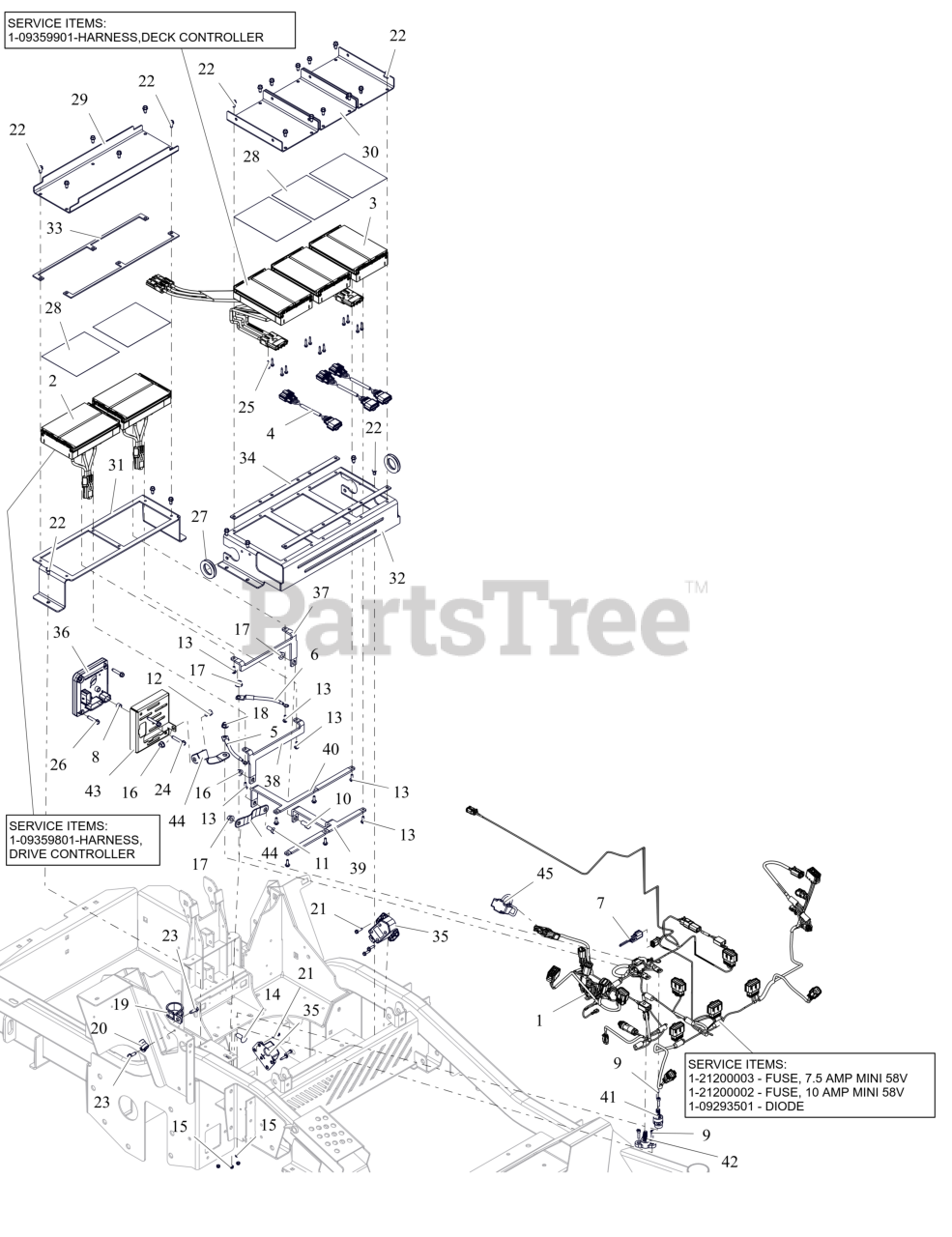

Electrical - RD Parts Diagram

  • Title

1

Ariens 05284000

HARNESS, ELECTRICAL - PT-EV

$

$

Currently unavailable

1

Ariens 21200003

FUSE, 7.5 AMP MINI 58V

Note: Service Component Part

$

$

Currently unavailable

1

Ariens 21200002

FUES, 10 AMP MINI 58V

Note: Service Component Part

$

$

Currently unavailable

1

Ariens 09293501

DIODE, CONNECTOR SHELL

Note: Service Component Part

$13.99

$

In Stock, Qty 20+

0

2

Ariens 09359800

ASM, DRIVE CONTROLLER W-HARNESS

$

$

Currently unavailable

2

Ariens 09359801

HARNESS, DRIVE CONTROLLER

Note: Service Component Part

$118.99

$

Usually ships in 4-12 days

0

3

Ariens 09359900

ASM, DECK CONTROLLER W-HARNESS

$

$

Currently unavailable

3

Ariens 09359901

HARNESS, DECK CONTROLLER

Note: Service Component Part

$118.99

$

Usually ships in 4-12 days

0

4

Ariens 09395200

HARNESS, DECK CNTRL JUMPER

$

$

Not available

5

Ariens 09425300

CABLE, GROUND

$

$

Currently unavailable

6

Ariens 09425400

CABLE, POSITIVE

$

$

Currently unavailable

7

Ariens 04841000

JUMPER, HARNESS

$

$

Currently unavailable

8

Ariens 05501433

SPCR, .334X.500X.324

$

$

Currently unavailable

9

Ariens 05901624

SCR, SKH M5-.8 X 20 GR12.9 ROHS

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 05901702

BLT,HEX .38-16X.75 G5 ZCC

$1.99

$

In Stock, Qty 10

0

11

Ariens 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

12

Ariens 05901904

BLT, HEX .31-18X.50 GR5 ZCC

$1.99

$

In Stock, Qty 13

0

13

Ariens 05902103

BLT,HEX M5-.8X16 EP30 G8.8 ZCC

$

$

Currently unavailable

14

Ariens 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

15

Ariens 06500801

NUT, LK-NYL M5-0.8 GR8.8 ZC120

$1.99

$

Usually ships in 4-12 days

0

16

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06501014

NUT, LK-NYL-FLG .31-18 GR5 ZC120

$

$

Currently unavailable

19

Ariens 06900526

CLAMP, CUSHIONED STEEL 1.25

$18.99

$

Usually ships in 4-12 days

0

20

Ariens 06908200

CLAMP, CUSHIONED STEEL

$6.49

$

Usually ships in 4-12 days

0

21

Ariens 07400118

SCR, TAP #10-24X.75 HWH ZCC

$3.99

$

In Stock, Qty 6

0

22

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

23

Ariens 07400131

SCR,TAP .25-20X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 6

0

24

Ariens 07400140

SCR,TAP .25-20X1.50 HWH TR ZCC

$3.99

$

Usually ships in 4-12 days

0

25

Ariens 07400206

SCR-TAP #6-32X.75 HWH ZCC

$

$

Currently unavailable

26

Ariens 07400207

SCR-TAP .25-20X1.25 HWH TR ZCC

$4.99

$

Usually ships in 4-12 days

0

27

Ariens 07536800

GROMMET 1.25ID X 1.5OD

$14.99

$

Usually ships in 4-12 days

0

28

Ariens 09182200

PAD, THERMAL

$36.99

$

Usually ships in 4-12 days

0

29

Ariens 09194300

PLATE, HEAT SINK-REAR

$

$

Currently unavailable

30

Ariens 09194400

PLATE, HEAT SINK-FRONT

$

$

Currently unavailable

31

Ariens 09194551

MOUNT, CNTRL -DRIVE (BLACK)

$

$

Currently unavailable

32

Ariens 09195551

MOUNT, CONTROLLER PLATE-FRONT (BLACK)

$

$

Currently unavailable

33

Ariens 09196151

SPCR, HEAT SINK (BLACK)

$

$

Currently unavailable

34

Ariens 09197251

SPCR, HEAT SINK - FRONT (BLACK)

$

$

Currently unavailable

35

Ariens 09197500

SENSOR, STEERING

$

$

Currently unavailable

36

Ariens 09366400

BOX, VCM (ASI)

$

$

Currently unavailable

37

Ariens 09368200

BAR, BUSS -POS. WHL

$

$

Currently unavailable

38

Ariens 09368300

BAR, BUSS-NEG. WHL

$

$

Currently unavailable

39

Ariens 09368400

BAR, BUSS-POS

$

$

Currently unavailable

40

Ariens 09368500

BAR, BUSS -NEG

$

$

Currently unavailable

41

Ariens 09379500

STUD, POSITIVE POWER

$

$

Not available

42

Ariens 09380200

STUD, NEGATIVE POWER

$

$

Not available

43

Ariens 09381100

COVER, VCMA ALUMINUM

$

$

Currently unavailable

44

Ariens 09381200

STRAP, GROUND

$

$

Currently unavailable

45

Ariens 09663300

COVER, CONNECTOR DUST

$

$

Currently unavailable
