997303 - Ariens Zenith E 48" Zero-Turn Mower, Electric, Side-Discharge (SN: 000101 - 000999) Battery Hold Down and Latch Assembly (Continued) Parts Diagram

Zenith E 48" Zero-Turn Mower, Electric, Side-Discharge

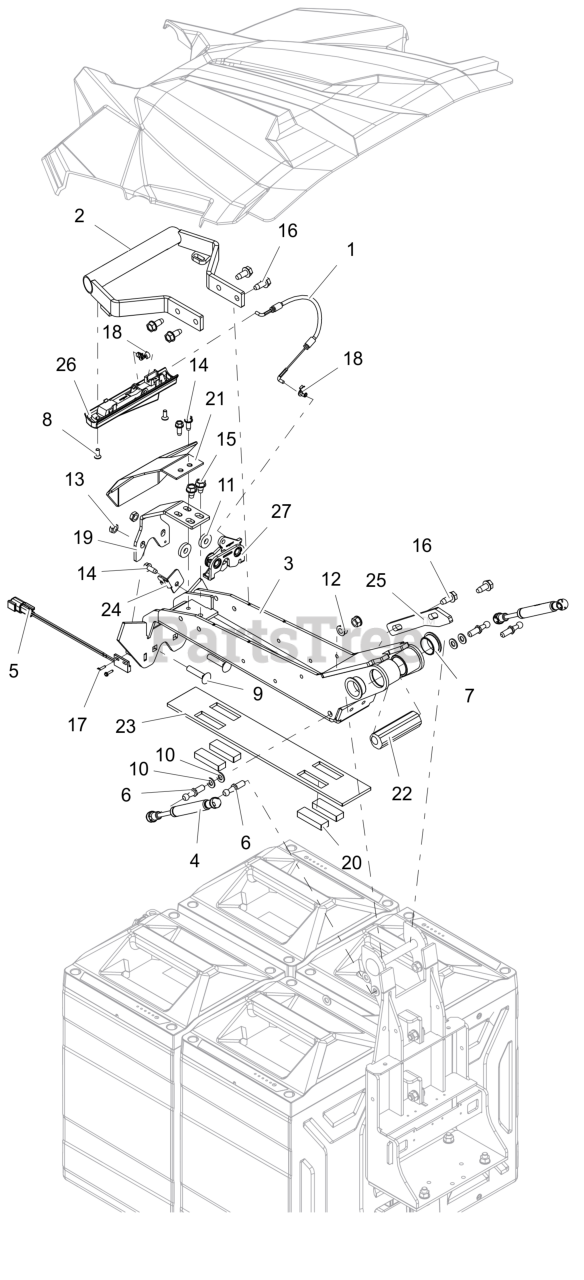

Battery Hold Down and Latch Assembly (Continued) Parts Diagram

  • Title

1

Ariens 06900730

CABLE, HOOD RELEASE

$

$

Currently unavailable

2

Ariens 09192059

WLDMT, HANDLE (ORANGE)

$90.99

$

Usually ships in 4-12 days

0

3

Ariens 09192259

WLDMT, MAIN HOLD DOWN (ORANGE)

$205.99

$

Usually ships in 4-12 days

0

4

Ariens 09195900

DAMPER, GAS

$

$

Currently unavailable

5

Ariens 30142100

SWITCH, MAGNETIC

$56.99

$

Usually ships in 4-12 days

0

6

Ariens 04097100

STUD-BALL-THREADED

$2.49

$

In Stock, Qty 15

0

7

Ariens 05501124

BSHG-FLG 1.0X1.125X.50X1.375 R

$3.99

$

In Stock, only 1 left!

0

8

Ariens 06100302

SCR, FLCSKH M5-0.8X14 GR10.9 ROHS

$

$

Currently unavailable

9

Ariens 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.49

$

In Stock, Qty 9

0

10

Ariens 06401002

WSHR,FLT .323X.625X.062 ZCC

$1.49

$

In Stock, only 2 left!

0

11

Ariens 06401103

WSHR, FLT .328X.870X.179 ZCC

$3.49

$

In Stock, only 1 left!

0

12

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$0.99

$

In Stock, only 2 left!

0

13

Ariens 06500913

NUT-LK-CTR-JAM .312-18 GB ZCC

$0.99

$

In Stock, Qty 9

0

14

Ariens 07400135

SCR,TAP .25-20X.625 HWH ZCC

$2.49

$

In Stock, only 3 left!

0

15

Ariens 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

16

Ariens 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.49

$

In Stock, only 2 left!

0

17

Ariens 07400205

SCR-TAP #4-40x.50 HWH ZCC

$3.49

$

Usually ships in 4-12 days

0

18

Ariens 07500437

CLIP, RETAINER

$

$

Currently unavailable

19

Ariens 09194959

BRKT, LATCH MTG (ORANGE)

$25.99

$

Usually ships in 4-12 days

0

20

Ariens 09195000

PAD, RUBBER

$

$

Currently unavailable

21

Ariens 09195259

COVER, LATCH (ORANGE)

$37.99

$

Usually ships in 4-12 days

0

22

Ariens 09195300

ECCENTRIC, HOOD LATCH-FRONT

$

$

Currently unavailable

23

Ariens 09195400

PAD, RUBBER

$

$

Currently unavailable

24

Ariens 09362051

RETAINER, CABLE (BLACK)

$

$

Currently unavailable

25

Ariens 09364351

STOP, HOOD (BLACK)

$

$

Currently unavailable

26

Ariens 09364800

HANDLE, SQUEEZE ACTUATOR

$

$

Currently unavailable

27

Ariens 09364900

LATCH, PUSH TO CLOSE

$

$

Currently unavailable
