997305 - Ariens Zenith E 60" Zero-Turn Mower, Electric, Side-Discharge (SN: 000101 - 000999) Wheels - 60" Parts Diagram

Zenith E 60" Zero-Turn Mower, Electric, Side-Discharge

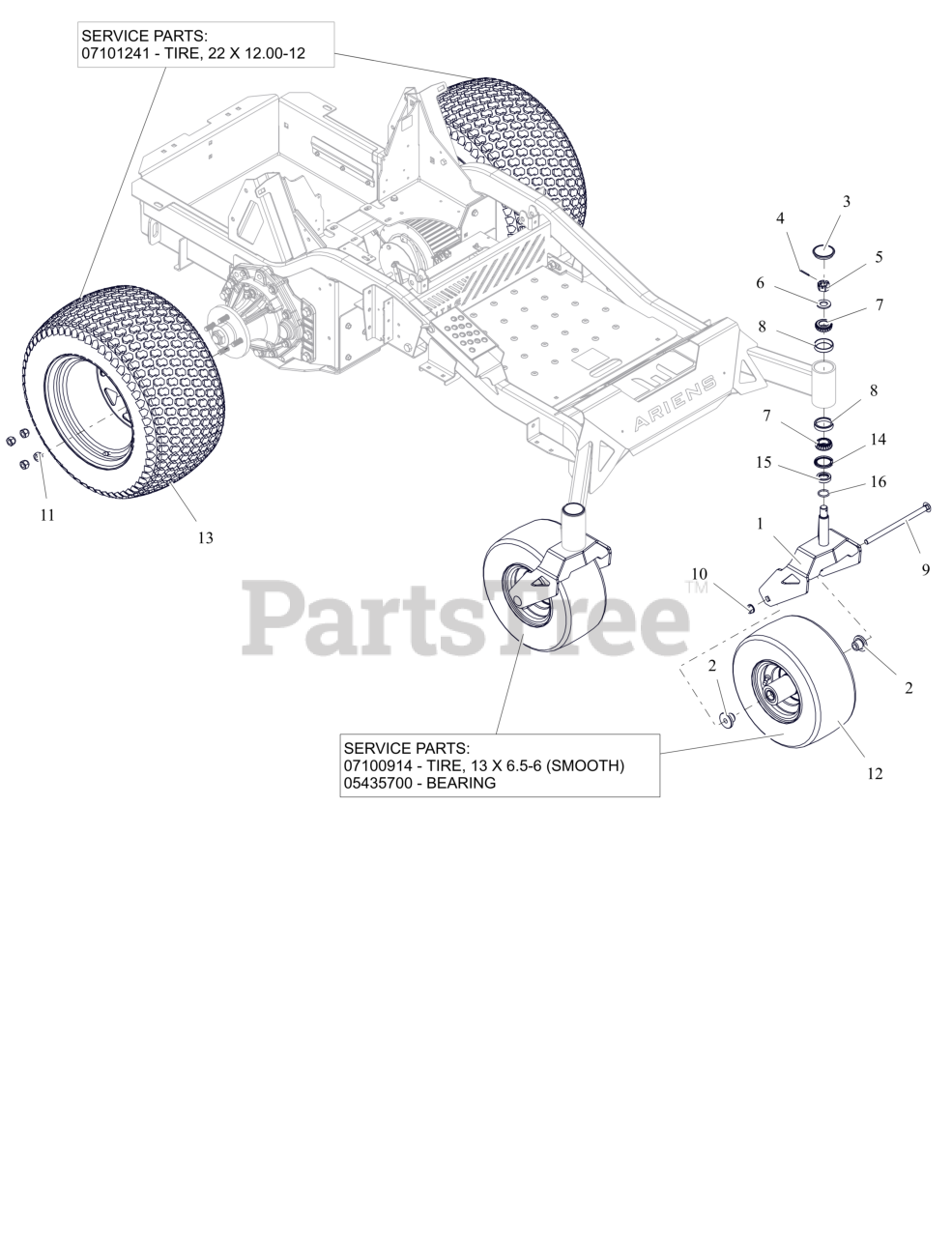

Wheels - 60" Parts Diagram

  • Title

1

Ariens 09476059

WLDMT- CASTER FORK

$187.99

$

Usually ships in 4-12 days

0

2

Ariens 00675300

SPACER, FRONT WHEEL

$9.99

$

In Stock, Qty 20+

0

3

Ariens 00456800

CAP, DUST

$19.99

$

In Stock, only 4 left!

0

4

Ariens 06700212

PIN,CTR.12X1.25EXTPRSQCT ZC120

$1.49

$

In Stock, Qty 12

0

5

Ariens 00595500

NUT, SLOTTED .75-16

$4.99

$

In Stock, Qty 5

0

6

Ariens 06401140

WSHR, FLT .812X1.469X.134 ZCC

$2.49

$

In Stock, Qty 20+

0

7

Ariens 05406900

BRG-CONE 1.0X.58

$21.99

$

In Stock, Qty 20+

0

8

Ariens 05407000

BRG-CUP1.980X.420

$19.99

$

In Stock, Qty 17

0

9

Ariens 06200322

BLT, RHSN .50-13X9.00 G5 ZCC
(Superseded to 06200510)

$9.49

$

In Stock, Qty 20+

0

10

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$2.49

$

In Stock, Qty 20+

0

11

Ariens 06500926

NUT, WHEEL .50-20 ZCC

$2.49

$

In Stock, Qty 20+

0

12

Ariens 07101226

ASM, WHL/TIRE 13X6.50-6

$143.99

$

In Stock, Qty 15

0

12

Ariens 07100914

LAWN TIRE FRONT, 13X6.50-6 SMOOTH

Note: Component Service Part

$76.99

$

In Stock, only 4 left!

0

12

Ariens 05435700

BRG, 25MM ID X 52MM OD X 15MM

Note: Component Service Part

$26.99

$

In Stock, Qty 20+

0

12

Ariens 07101508

TIRE TUBE, 13/6.5-6 4 PLY TR87 90 BENT VALVE

Note: Component Service Part

$34.99

$

Usually ships in 4-12 days

0

13

Ariens 07101227

ASM, WHL/TIRE 22X12.00-12 K500

$300.99

$

In Stock, only 1 left!

0

13

Ariens 07101241

TIRE, 22X12.00-12

Note: Component Service Part

$164.99

$

Usually ships in 4-12 days

0

13

Ariens 07140500

TIRE TUBE 22,23,24/8.50/9.50/10.00/10.50/12.00-12 4 PLY TR13 STRAIGHT VALVE

Note: Component Service Part

$54.99

$

Usually ships in 4-12 days

0

14

Ariens 00531400

BEARING SEAL 1.5 X 2 X .18

$11.99

$

In Stock, Qty 19

0

15

Ariens 04720200

SPCR, CASTER FORK (1.00)

$27.99

$

Usually ships in 4-12 days

0

16

Ariens 05610000

O-RING 1.000X1.250X

$4.99

$

Usually ships in 4-12 days

0
