997311 - Ariens Zenith E 60" Zero-Turn Mower, Electric, Side-Discharge (SN: 000101 - 001499) Steering Controls Parts Diagram

Zenith E 60" Zero-Turn Mower, Electric, Side-Discharge

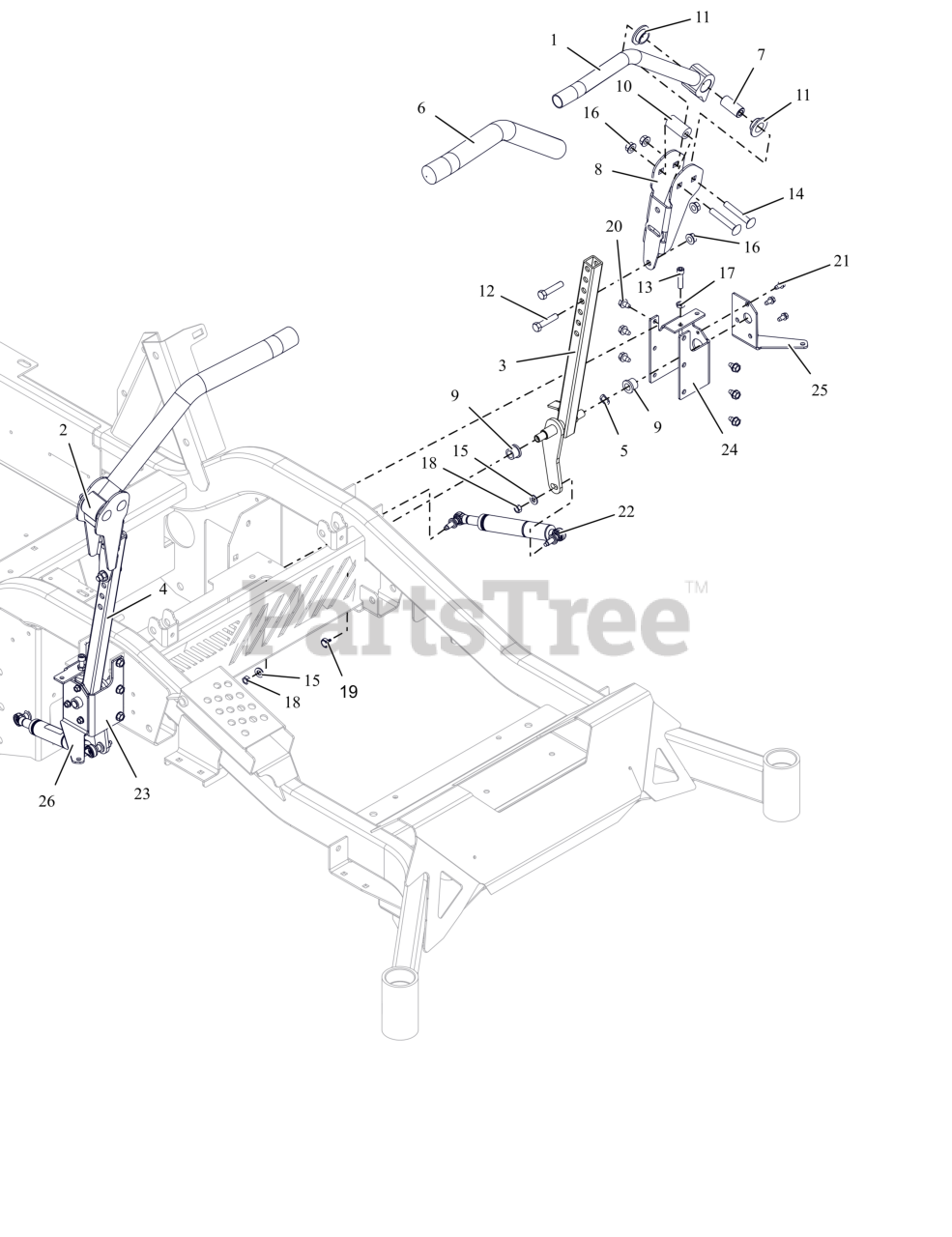

Steering Controls Parts Diagram

  • Title

1

Ariens 05261851

WLDMT, CONTROL HANDLE-LH (BLACK)

$74.99

$

Usually ships in 4-12 days

0

2

Ariens 05262151

WLDMT, CONTROL HANDLE-RH (BLACK)

$80.99

$

In Stock, only 1 left!

0

3

Ariens 09191151

WLDMT, STEERING -LH (BLACK)

$

$

Currently unavailable

4

Ariens 09191251

WLDMT, STEERING RH (BLACK)

$

$

Currently unavailable

5

Ariens 00325400

WAVE WASHER .531X.781X.125FH

$1.49

$

In Stock, Qty 20+

0

6

Ariens 04383600

GRIP, HANDLEBAR

$36.99

$

In Stock, Qty 6

0

7

Ariens 04413600

SPACER, STEERING ARM

$6.99

$

Usually ships in 4-12 days

0

8

Ariens 05068751

ADJ UPPER CONTROL ARM BRKT-BLK

$40.99

$

Usually ships in 4-12 days

0

9

Ariens 05500901

BSHG, FLG .516X.750X.625X.937

$6.49

$

Usually ships in 4-12 days

0

10

Ariens 05501223

BSHG, ECCENTRIC.406X.875X1.625

$5.49

$

In Stock, only 2 left!

0

11

Ariens 05501517

BSHG-FLG .762X1.48X.44 IGLIDER

$2.99

$

Usually ships in 4-12 days

0

12

Ariens 05901809

BLT, HEX .38-16X1.75 G5 ZCC

$1.99

$

In Stock, only 4 left!

0

13

Ariens 05901826

BLT, SHCS .312-18X1.25 G8 SS

$2.99

$

Usually ships in 4-12 days

0

14

Ariens 06200315

BLT, RHSSN.38-16X2.50 G5 ZCC

$3.99

$

In Stock, only 2 left!

0

15

Ariens 06401113

WSHR, HRDN 0.344X0.688X0.065

$5.49

$

Usually ships in 4-12 days

0

16

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06500909

NUT-JAM .312-18 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06501016

NUT, HEX-JAM CTR-LK M8-1.25 ZCC

$1.49

$

Usually ships in 4-12 days

0

19

Ariens 07001914

BOLT, MAGNETIC STEERING SENSOR

$

$

Currently unavailable

20

Ariens 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

21

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

22

Ariens 09175600

DAMPER, NEUTRALIZING

$

$

Currently unavailable

23

Ariens 09178359

WLDMT, STEERING MOUNTING- RH (ORANGE)

$

$

Currently unavailable

24

Ariens 09178459

BRKT, STEERING MOUNTING -LH (ORANGE)

$

$

Currently unavailable

25

Ariens 09198651

BRKT, FRONT FENDER MOUNT-LH (BLACK)

$

$

Currently unavailable

26

Ariens 09198751

BRKT, FRONT FENDER MOUNT-RH (BLACK)

$

$

Currently unavailable
