997312 - Ariens Zenith E 48" Zero-Turn Mower, Electric, Rear-Discharge (SN: 000101 - 001499) Frame - 48" and 52" - RD Parts Diagram

Zenith E 48" Zero-Turn Mower, Electric, Rear-Discharge

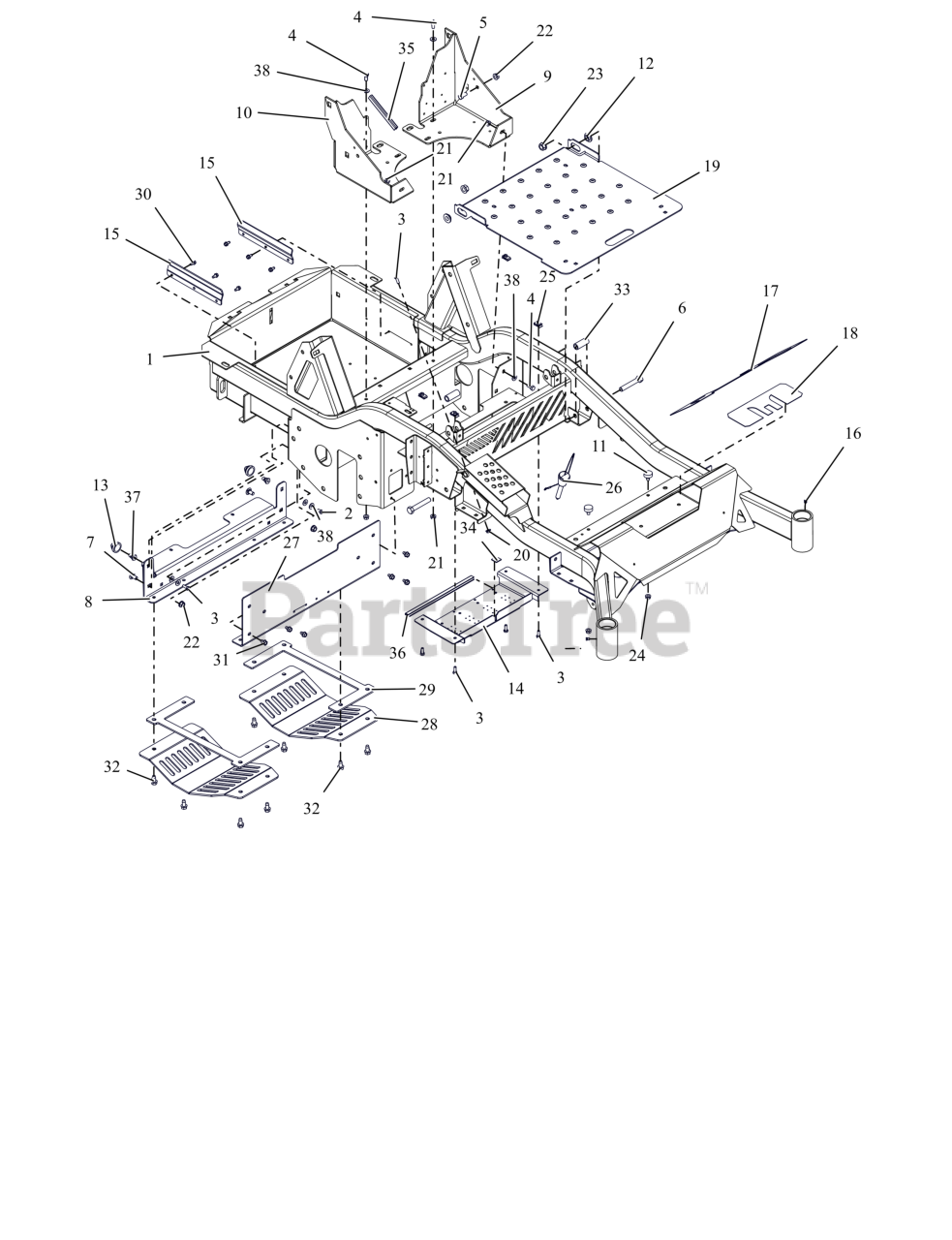

Frame - 48" and 52" - RD Parts Diagram

  • Title

1

Ariens 59701300

KIT,EV FRAME(SM)W/DECALS-A

$

$

Currently unavailable

2

Ariens 05901705

BLT,HEX .25-20X.50 G5 ZCC

$0.99

$

In Stock, only 3 left!

0

3

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 12

0

4

Ariens 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

5

Ariens 05901702

BLT,HEX .38-16X.75 G5 ZCC

$1.99

$

In Stock, Qty 11

0

6

Ariens 05901737

BLT, HEX .50-13X3.00 G5 ZCC

$5.49

$

In Stock, Qty 8

0

7

Ariens 06200336

BLT, RHSSN .38-16X.75 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

8

Ariens 09192659

BRKT, SKID PLATE MTG. (ORANGE)

$

$

Currently unavailable

9

Ariens 09179159

BRKT, SUPPORT ROPS -LH (ORANGE)

$

$

Currently unavailable

10

Ariens 09179059

BRKT, SUPPORT ROPS-RH (ORANGE)

$

$

Currently unavailable

11

Ariens 07533600

BUMPER, RUBBER

$12.99

$

In Stock, only 3 left!

0

12

Ariens 03989100

BSHG-FLG .515X.750X.395X1.120

$3.99

$

In Stock, Qty 19

0

13

Ariens 07500429

COUPLING, RUBBER PUSH-IN

$2.49

$

In Stock, Qty 20+

0

14

Ariens 09192559

COVER, BOTTOM ACCESS -OPEN (ORANGE)

$

$

Currently unavailable

15

Ariens 09439659

DEFLECTOR, BATTERY -EV (ORANGE)

$

$

Currently unavailable

16

Ariens 07001727

FTG, .25-28 FLUSH MNT GREASE

$3.99

$

In Stock, Qty 10

0

17

Ariens 05104800

GRIP, FRONT

$18.99

$

Usually ships in 4-12 days

0

18

Ariens 07801139

GRIP, TAPE FRONT

$

$

Currently unavailable

19

Ariens 59113600

PANEL, ACCESS

$138.99

$

Usually ships in 4-12 days

0

20

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 9

0

21

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

25

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06800218

PIN- MAGNETIC .50X2.70

$25.99

$

In Stock, only 2 left!

0

27

Ariens 09192459

PLATE, FRONT FRAME (ORANGE)

$

$

Currently unavailable

28

Ariens 09180051

PLATE, SKID (BLACK)

$

$

Currently unavailable

29

Ariens 09180151

PLATE, SKID TENSION (BLACK)

$

$

Currently unavailable

30

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

31

Ariens 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

32

Ariens 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

33

Ariens 05501319

SPACER, .515X.75X1.83

$5.49

$

Usually ships in 4-12 days

0

34

Ariens 07525100

STOP

$2.49

$

In Stock, only 2 left!

0

35

Ariens 00918200

STRIP, COWL

$6.49

$

Usually ships in 4-12 days

0

36

Ariens 00918200

STRIP, COWL

$6.49

$

Usually ships in 4-12 days

0

37

Ariens 05275900

STUD, BALL FEMALE .250-20 THREAD

$9.99

$

In Stock, Qty 20+

0

38

Ariens 06401124

WSHR, FLT .312X.734X.065 ZCC

$1.49

$

In Stock, Qty 20+

0
