998004 (EV48 RD) - Gravely Pro-Stance 48" Stand-On Mower, Electric, Rear Discharge (SN: 001000 & Above) Tower and Dash Parts Diagram

Pro-Stance 48" Stand-On Mower, Electric, Rear Discharge

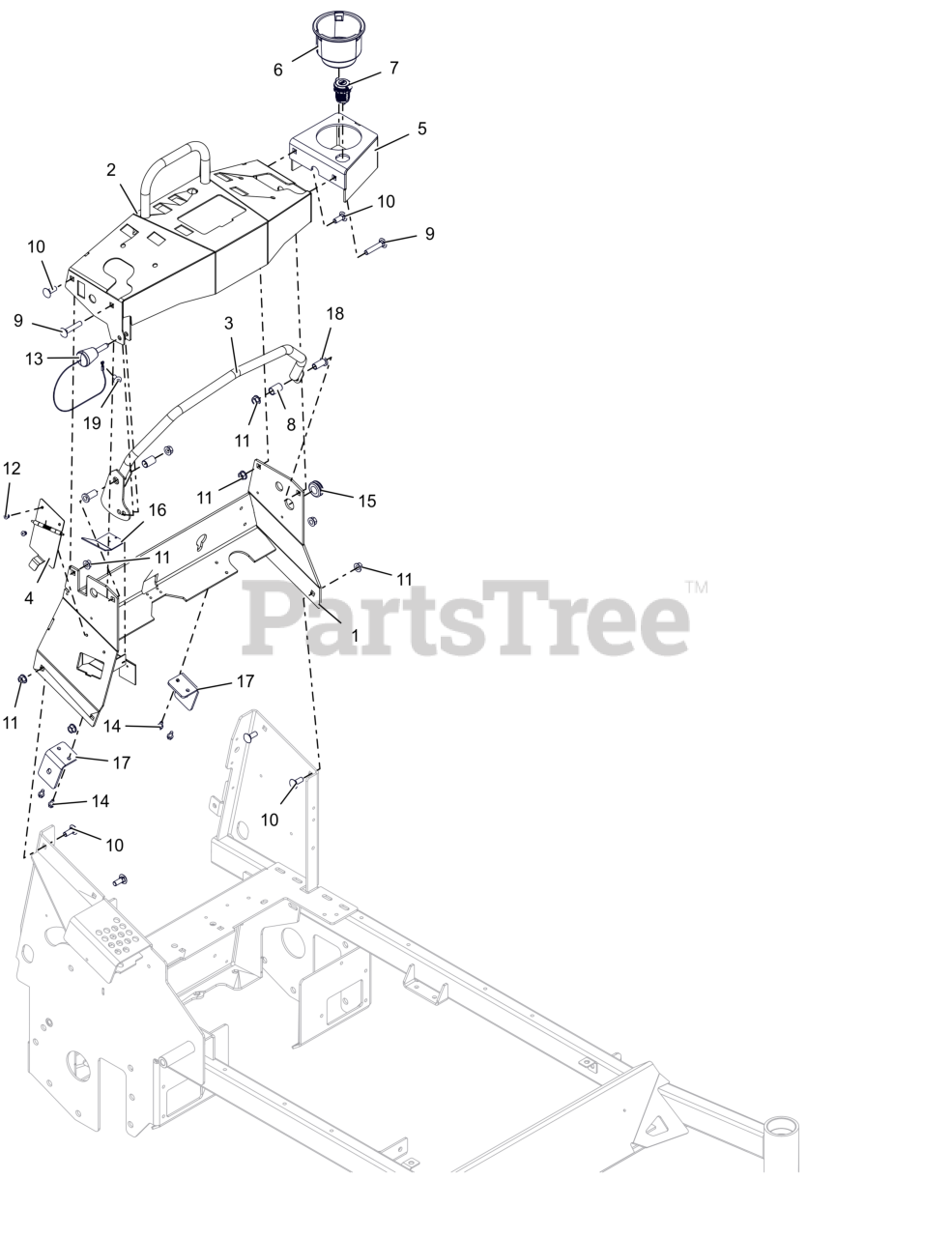

Tower and Dash Parts Diagram

  • Title

1

Gravely 09697753

WLDMT- TOWER

$224.99

$

Usually ships in 4-12 days

0

2

Gravely 59800800

KIT- PSEV DASH

$

$

Currently unavailable

3

Gravely 09698051

WLDMT- CRUISE BAR

$122.99

$

Usually ships in 4-12 days

0

4

Gravely 30118500

ASM, CHARGER COVER

$

$

Currently unavailable

5

Gravely 30197453

WLDMT, CUP HOLDER (RED)

$

$

Currently unavailable

6

Gravely 04192700

CUPHOLDER, SNAP-IN 3.75OD

$23.99

$

Usually ships in 4-12 days

0

7

Gravely 30145700

USB, DUAL PORT USB-C, 12V BLK

$50.99

$

Usually ships in 4-12 days

0

8

Gravely 05400812

BRG, .500 x .625 x1.000

$

$

Currently unavailable

9

Gravely 06200314

BLT, RHSN .38-16X2.00 G5 ZCC

$3.99

$

In Stock, Qty 9

0

10

Gravely 06200313

BLT, RHSN .38-16X1.00 G5 ZCC

$2.99

$

In Stock, only 4 left!

0

11

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06800119

RVT, POP .187x.250 MULTIGRIP AL

$

$

Not available

13

Gravely 06800222

PIN- MAGNETIC .375 X 1.5

$36.99

$

Usually ships in 4-12 days

0

14

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

15

Gravely 07500423

GROMMET,RUBBER.688 IDX1.000 OD

$6.49

$

Usually ships in 4-12 days

0

16

Gravely 09697853

COVER- CHARGER BRACKET

$11.99

$

Usually ships in 4-12 days

0

17

Gravely 09698153

BRKT- DAMPER MTG

$14.99

$

Usually ships in 4-12 days

0

18

Gravely 05501535

BSHG, FLANGED

$

$

Currently unavailable

19

Gravely P80-332-A

XMAS TREE FASTNER-BLACK

$2.99

$

Usually ships in 4-12 days

0
