998301 - Ariens Arrow E 48" Stand-On Mower, Electric, Side-Discharge (SN: 000101 - 000499) Brake Parts Diagram

Arrow E 48" Stand-On Mower, Electric, Side-Discharge

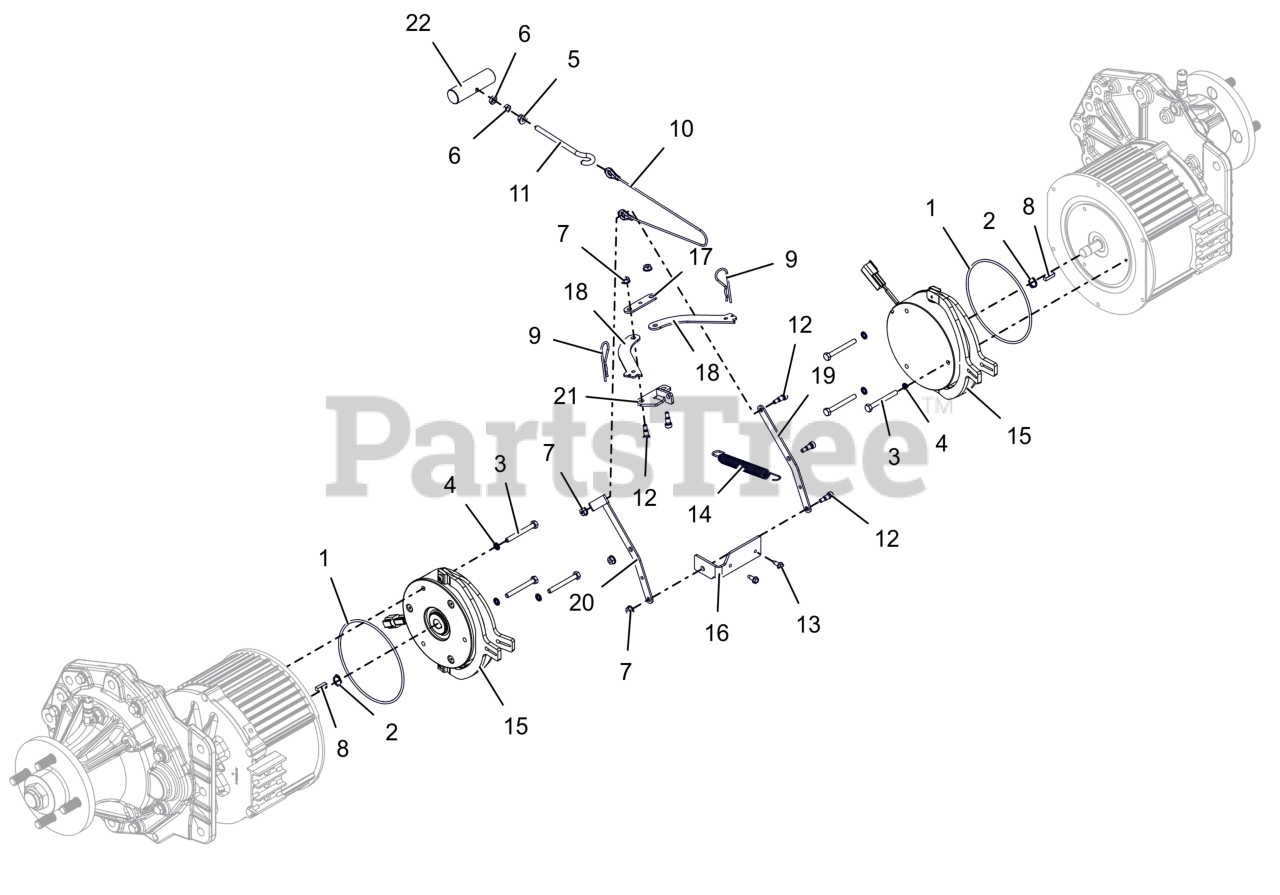

Brake Parts Diagram

  • Title

1

Ariens 05600521

O-RING 126MM IDX3MM

$

$

Currently unavailable

2

Ariens 05700226

RING, RETAINING-EXTERNAL 25MM X 1.2MM

$

$

Currently unavailable

3

Ariens 05902123

BLT,HEX M6-1X55 EP30 G8.8 ZCC

$

$

Currently unavailable

4

Ariens 06401223

WSHR-FL-STL, SEAL 6MMX11MMX1MM

$

$

Currently unavailable

5

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 9

0

6

Ariens 06500908

NUT-JAM .250-20 G2 ZCC

$1.49

$

Usually ships in 4-12 days

0

7

Ariens 06500932

NUT, FLG-TOP LK #10-24 GF ZCC

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 06600228

KEY-STR 5X5X18MM RD ENDS

$

$

Currently unavailable

9

Ariens 06700215

PIN, HAIR-#7 .094X2.31 ZC120

$6.99

$

In Stock, Qty 5

0

10

Ariens 06900504

CABLE, LOWER TRACTION (CMPCT)

$10.99

$

Usually ships in 4-12 days

0

11

Ariens 07002218

BOLT, EYE .250-20 x 3.00

$

$

Currently unavailable

12

Ariens 07070101

BLT-SHLDR .25X.375

$6.49

$

Usually ships in 4-12 days

0

13

Ariens 07400130

SCR,TAP #10-24X.50 HWH TR ZCC

$2.49

$

In Stock, Qty 5

0

14

Ariens 08300538

SPRING, SWIVEL HOOK EXTENSION

$15.99

$

In Stock, Qty 20+

0

15

Ariens 09189300

BRAKE, MOTOR

$

$

Currently unavailable

16

Ariens 09388500

PIVOT, BRAKE LINK MAIN

$

$

Currently unavailable

17

Ariens 09389200

PLATE, BRAKE PULL DOUBLER

$10.99

$

Usually ships in 4-12 days

0

18

Ariens 09696300

LINK, PUSH

$5.49

$

Usually ships in 4-12 days

0

19

Ariens 30149300

LINK MIDDLE

$5.49

$

Usually ships in 4-12 days

0

20

Ariens 30149400

LINK- MIDDLE

$11.99

$

Usually ships in 4-12 days

0

21

Ariens 30149500

LINK- T

$9.99

$

Usually ships in 4-12 days

0

22

Ariens 30149900

HANDLE- BRAKE

$65.99

$

Usually ships in 4-12 days

0
