998301 - Ariens Arrow E 48" Stand-On Mower, Electric, Side-Discharge (SN: 000101 - 000499) Frame and Fenders Parts Diagram

Arrow E 48" Stand-On Mower, Electric, Side-Discharge

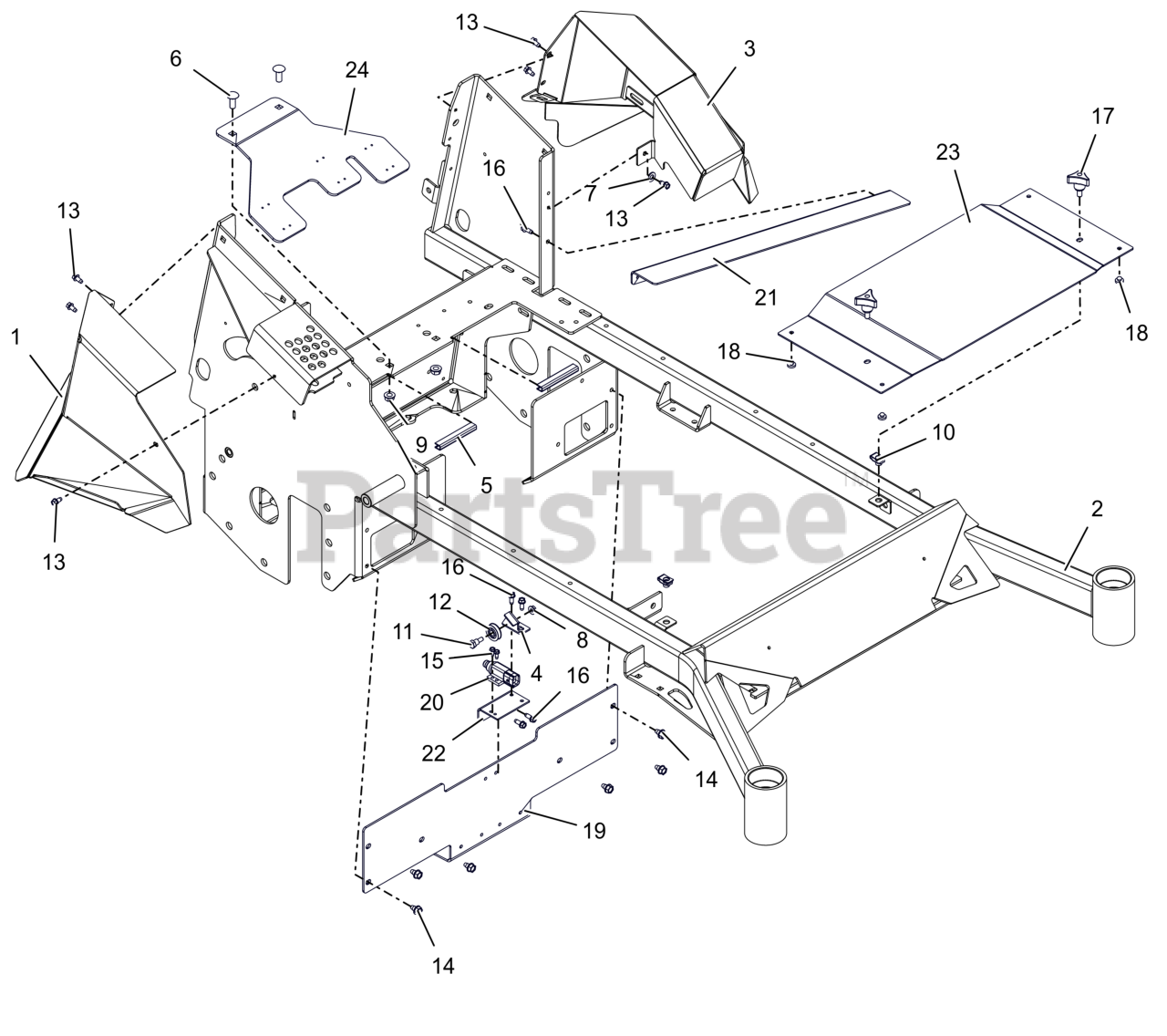

Frame and Fenders Parts Diagram

  • Title

1

Ariens 09193251

WLDMT, RH FENDER (BLACK)

$201.99

$

Usually ships in 4-12 days

0

2

Ariens 09695359

WLDMT- PROSTANCE MAIN FRAME

$

$

Currently unavailable

3

Ariens 09695651

WLDMT, LH FENDER (BLACK)

$145.99

$

Usually ships in 4-12 days

0

4

Ariens 00373000

BRKT, CABLE PULLEY

$5.49

$

Usually ships in 4-12 days

0

5

Ariens 00918200

STRIP, COWL

$6.49

$

Usually ships in 4-12 days

0

6

Ariens 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

7

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 9

0

9

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 07000829

NUT-CLIP RETAINER 5/16-18X.56

$2.99

$

In Stock, Qty 20+

0

11

Ariens 07001737

BOLT, SHLDR -.375 X .375 X .25-20

$3.99

$

In Stock, only 4 left!

0

12

Ariens 07300012

PULLEY, CABLE

$5.49

$

In Stock, only 2 left!

0

13

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

14

Ariens 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

15

Ariens 07400130

SCR,TAP #10-24X.50 HWH TR ZCC

$2.49

$

In Stock, Qty 5

0

16

Ariens 07400135

SCR,TAP .25-20X.625 HWH ZCC

$2.99

$

In Stock, only 3 left!

0

17

Ariens 07500008

KNOB,WING STUD 5/16-18 X .75

$6.99

$

In Stock, Qty 20+

0

18

Ariens 07503100

BUMPER GROMMET

$3.99

$

In Stock, Qty 20+

0

19

Ariens 09695759

PLATE- FRONT FRAME

$64.99

$

Usually ships in 4-12 days

0

20

Ariens 30182700

SWITCH, SEALED PLUNGER

$

$

Currently unavailable

21

Ariens 30148851

BRKT, DRIP EDGE (BLACK)

$

$

Currently unavailable

22

Ariens 30149159

BRKT- LOWER BRAKE RELEASE

$

$

Currently unavailable

23

Ariens 30149259

COVER

$

$

Currently unavailable

24

Ariens 30176959

BRKT, ANDERSON MTG (ORANGE)

$

$

Currently unavailable
