998302 - Ariens Arrow E 52" Stand-On Mower, Electric, Side-Discharge (SN: 000101 - 000499) Electrical - Controllers and Mounts - 52" Parts Diagram

Arrow E 52" Stand-On Mower, Electric, Side-Discharge

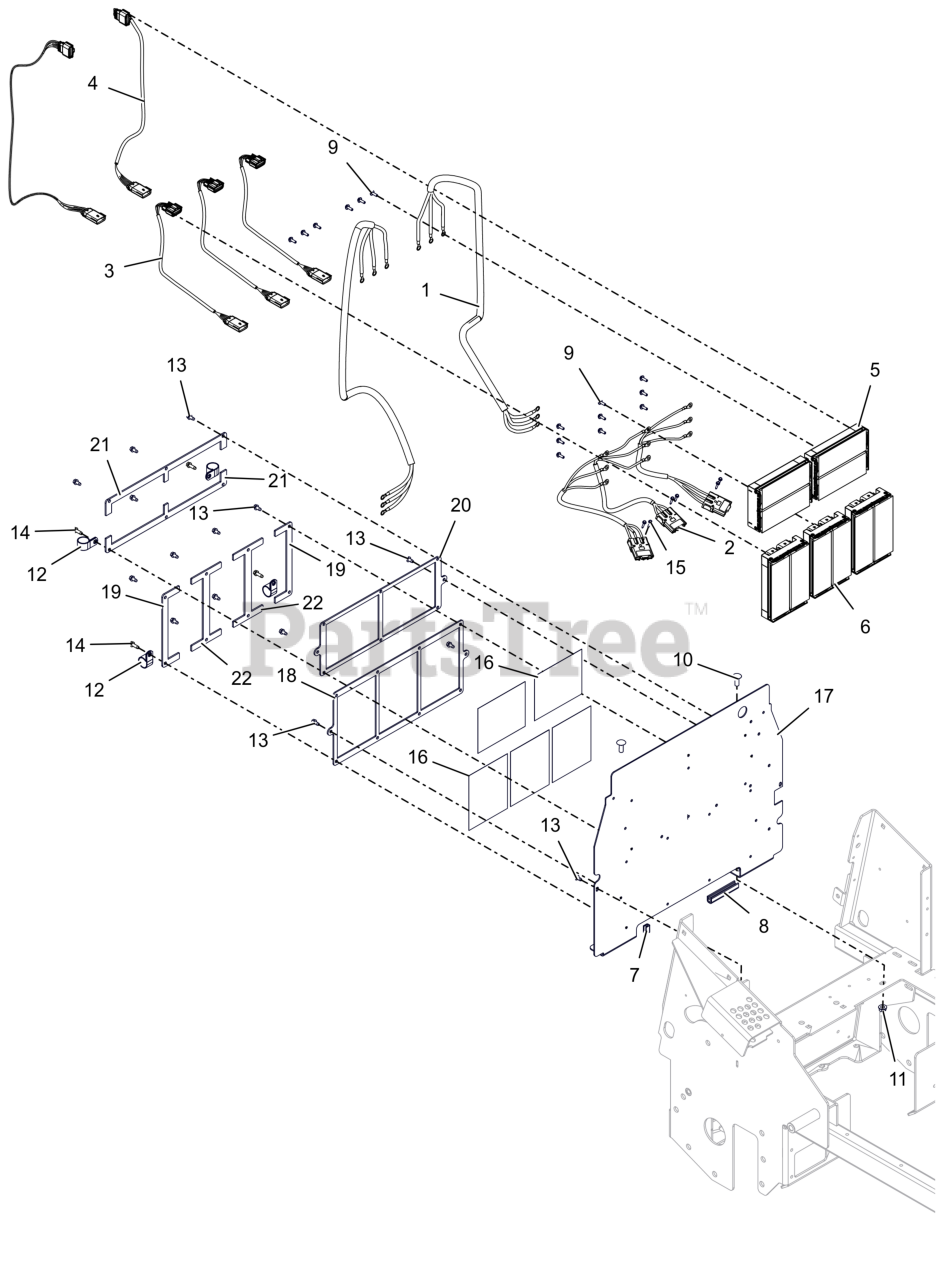

Electrical - Controllers and Mounts - 52" Parts Diagram

  • Title

1

Ariens 09681900

HARNESS, TRACTION PHASE

$

$

Not available

2

Ariens 09682000

HARNESS, DECK PHASE

$

$

Not available

3

Ariens 09682100

HARNESS, DECK SIGNAL

$

$

Not available

4

Ariens 09682200

HARNESS, TRACTION SIGNAL

$

$

Not available

5

Ariens 59800300

CONTROLLER, TM PSEV

$

$

Currently unavailable

6

Ariens 59704700

KIT, MY23 52 DECK CONTROLLER

$

$

Currently unavailable

7

Ariens 00918200

STRIP, COWL

$6.49

$

Usually ships in 4-12 days

0

8

Ariens 00982400

GAURD- PLASTIC EDGE & TRIM

$1.49

$

Usually ships in 4-12 days

0

9

Ariens 05902103

BLT,HEX M5-.8X16 EP30 G8.8 ZCC

$

$

Currently unavailable

10

Ariens 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

11

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06917900

CLAMP, COUSHIONED STEEL REV

$15.99

$

Usually ships in 4-12 days

0

13

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

14

Ariens 07400131

SCR,TAP .25-20X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 6

0

15

Ariens 07400206

SCR-TAP #6-32X.75 HWH ZCC

$

$

Currently unavailable

16

Ariens 09182200

PAD, THERMAL

$36.99

$

Usually ships in 4-12 days

0

17

Ariens 09698700

PANEL, CONTROLLER MTG

$

$

Currently unavailable

18

Ariens 09698851

PLATE, HEAT SINK SPCR (BLACK)

$43.99

$

Usually ships in 4-12 days

0

19

Ariens 09698951

PLATE, LOWER CONTROLLER MTG (BLACK)

$13.99

$

Usually ships in 4-12 days

0

20

Ariens 09699051

PLATE, HEAT SINK SPCR (BLACK)

$33.99

$

Usually ships in 4-12 days

0

21

Ariens 09699151

PLATE- UPPER CONTROLLER MTG

$23.99

$

Usually ships in 4-12 days

0

22

Ariens 30149751

PLATE, LOWER CONTROLLER MTG (BLACK)

$

$

Currently unavailable
