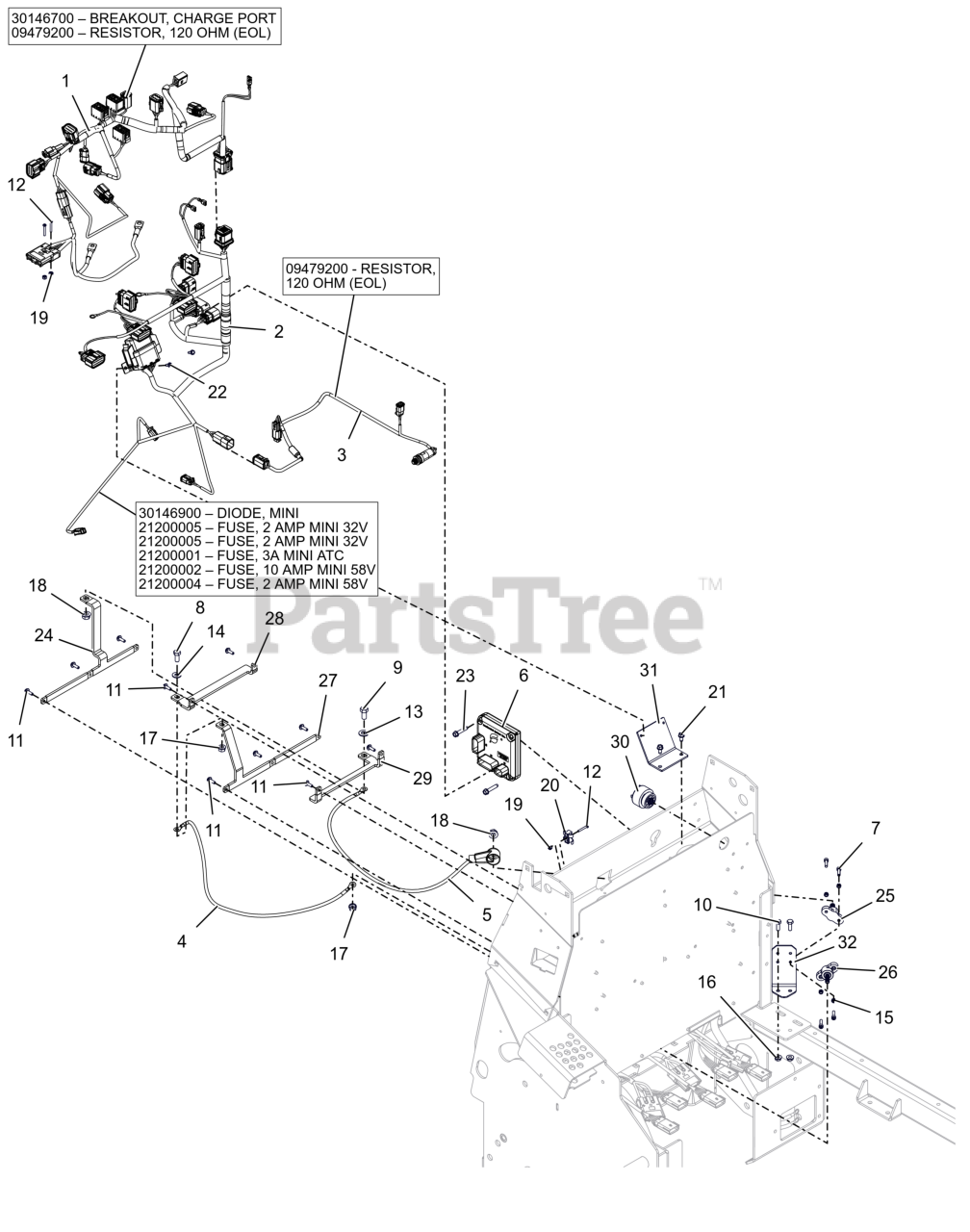

998304 - Ariens Arrow E 48" Stand-On Mower, Electric, Rear-Discharge (SN: 000101 - 000499) Electrical - RD Parts Diagram

Arrow E 48" Stand-On Mower, Electric, Rear-Discharge

Electrical - RD Parts Diagram

  • Title

1

Ariens 09677701

HARNESS, ELECTRICAL -PSEV

$

$

Not available

1

Ariens 30146700

BREAKOUT, CHARGE PORT

Note: Component Service Part

$

$

Currently unavailable

1

Ariens 09479200

RESISTOR, 120 OHM (EOL)

Note: Component Service Part

$

$

Currently unavailable

2

Ariens 09677702

HARNESS, ELECTRICAL -PSEV

$537.99

$

Usually ships in 4-12 days

0

2

Ariens 30146900

DIODE- MINI

Note: Component Service Part

$13.99

$

Usually ships in 4-12 days

0

2

Ariens 21200005

FUSE- 2 AMP MINI 32V

Note: Component Service Part

$

$

Not available

2

Ariens 21200001

FUSE, 3A MINI ATC

Note: Component Service Part

$3.99

$

Usually ships in 4-12 days

0

2

Ariens 21200002

FUES, 10 AMP MINI 58V

Note: Component Service Part

$

$

Currently unavailable

2

Ariens 21200004

FUSE- 2 AMP MINI 58V

Note: Component Service Part

$

$

Not available

3

Ariens 09677703

HARNESS, ELECTRICAL -PSEV

$237.99

$

Usually ships in 4-12 days

0

3

Ariens 09479200

RESISTOR, 120 OHM (EOL)

Note: Component Service Part

$

$

Currently unavailable

4

Ariens 09699300

CABLE, NEG 26"

$131.99

$

Usually ships in 4-12 days

0

5

Ariens 09699400

CABLE, POS 26"

$131.99

$

Usually ships in 4-12 days

0

6

Ariens 59800200

VCM, RD ASSY

$

$

Currently unavailable

7

Ariens 05901624

SCR, SKH M5-.8 X 20 GR12.9 ROHS

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

9

Ariens 05901702

BLT,HEX .38-16X.75 G5 ZCC

$1.99

$

In Stock, Qty 10

0

10

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 12

0

11

Ariens 05902103

BLT,HEX M5-.8X16 EP30 G8.8 ZCC

$

$

Currently unavailable

12

Ariens 06100305

SCR, PH PAN HD #6-32X1.000 ZCC

$

$

Currently unavailable

13

Ariens 06401010

WSHR, FLT .406X.812X.065 RAW

$

$

Currently unavailable

14

Ariens 06401124

WSHR, FLT .312X.734X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06500801

NUT, LK-NYL M5-0.8 GR8.8 ZC120

$1.99

$

Usually ships in 4-12 days

0

16

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 9

0

17

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06538900

@NUT-LK-NYL 6-32 W/INSRT YWZC

$1.49

$

Usually ships in 4-12 days

0

20

Ariens 07001622

CLIP,T,.31-.38,

$3.99

$

Usually ships in 4-12 days

0

21

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

22

Ariens 07400130

SCR,TAP #10-24X.50 HWH TR ZCC

$2.49

$

In Stock, Qty 5

0

23

Ariens 07400207

SCR-TAP .25-20X1.25 HWH TR ZCC

$4.99

$

Usually ships in 4-12 days

0

24

Ariens 09368400

BAR, BUSS-POS

$

$

Currently unavailable

25

Ariens 09379500

STUD, POSITIVE POWER

$

$

Not available

26

Ariens 09380200

STUD, NEGATIVE POWER

$

$

Not available

27

Ariens 09698200

BAR, BUSS -NEG

$85.99

$

Usually ships in 4-12 days

0

28

Ariens 09698300

BAR, BUSS-NEG. WHL

$71.99

$

Usually ships in 4-12 days

0

29

Ariens 09698400

BAR, BUSS -POS. WHL

$71.99

$

Usually ships in 4-12 days

0

30

Ariens 09698600

ALARM- AUDIBLE

$37.99

$

Usually ships in 4-12 days

0

31

Ariens 09699259

BRKT, FUSE BLOCK MTG (ORANGE)

$

$

Currently unavailable

32

Ariens 30152859

BRKT- BATTERY TERMINAL

$18.99

$

Usually ships in 4-12 days

0
