998304 - Ariens Arrow E 48" Stand-On Mower, Electric, Rear-Discharge (SN: 001000 & Above) Anti-Scalp Wheels and Baffles - 48" - RD Parts Diagram

Arrow E 48" Stand-On Mower, Electric, Rear-Discharge

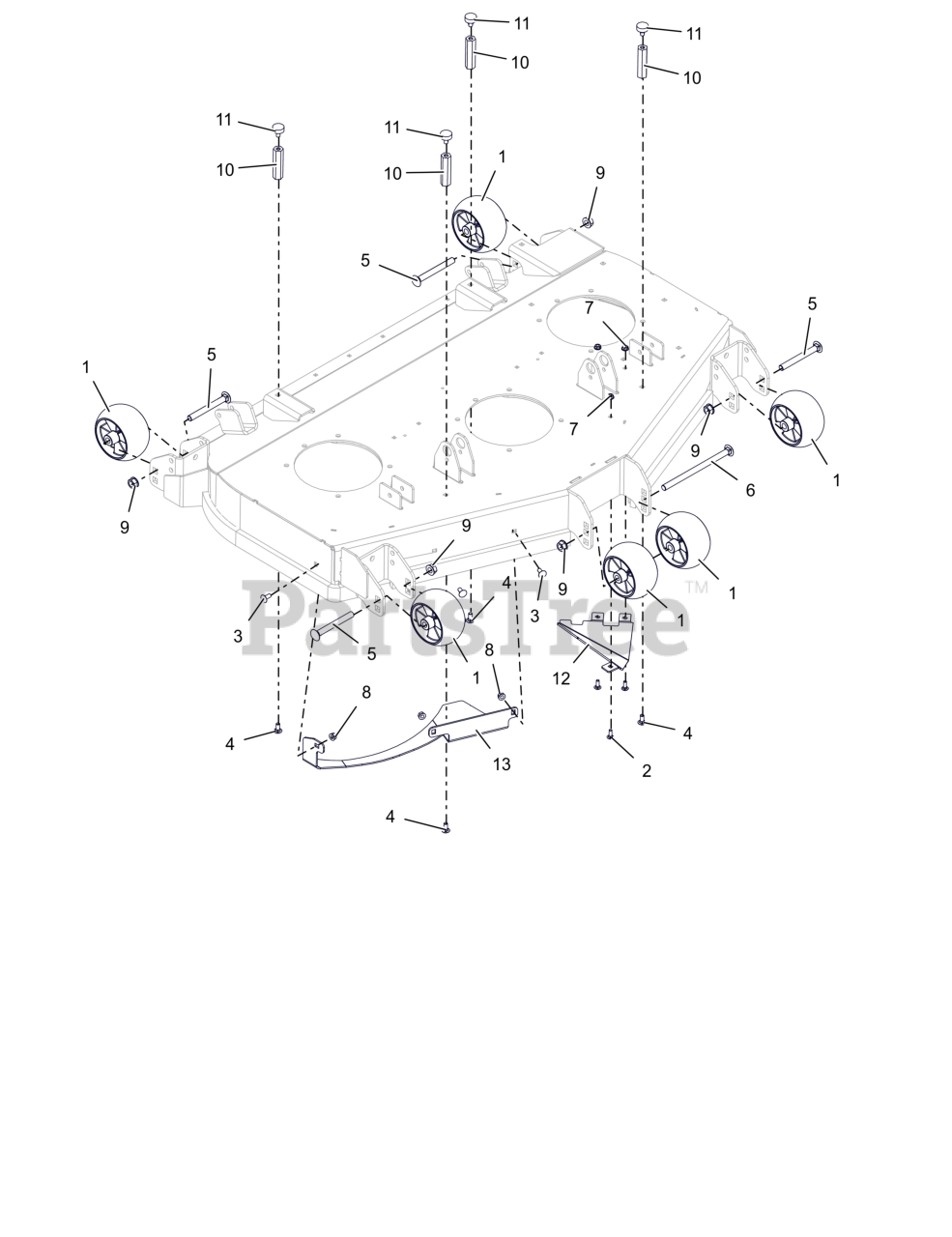

Anti-Scalp Wheels and Baffles - 48" - RD Parts Diagram

  • Title

1

Ariens 05268800

WHEEL, ANTI SCALP - 5X3 CTR W/RIBS

$12.99

$

In Stock, Qty 20+

0

2

Ariens 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$1.49

$

In Stock, Qty 7

0

3

Ariens 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

4

Ariens 06200425

BLT, RHSN .31-18X.75 G5 ZCC LT

$4.99

$

In Stock, Qty 7

0

5

Ariens 06200511

BOLT, RHNS .50-13X4.50 G5 ZCC NS

$4.99

$

In Stock, Qty 20+

0

6

Ariens 06200512

BOLT, RHNS .50-13X8.00 G5 ZCC NS

$6.49

$

Usually ships in 4-12 days

0

7

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 9

0

8

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 07000027

NUT, COUPLING .31-18 X 3.00

$29.99

$

In Stock, Qty 12

0

11

Ariens 07533600

BUMPER, RUBBER

$12.99

$

In Stock, only 3 left!

0

12

Ariens 09439359

BAFFLE, 48" TRIANGLULAR INSERT (ORANGE)

$

$

Currently unavailable

13

Ariens 09449159

DEFLECTOR, BAFFLE BOLT-IN (ORANGE)

$

$

Currently unavailable
