998310 - Ariens Arrow E 48" Stand-On Mower, Electric, Rear-Discharge (SN: 000101 - 000499) Deck, Blades and Spindle Motors - 48" - RD Parts Diagram

Arrow E 48" Stand-On Mower, Electric, Rear-Discharge

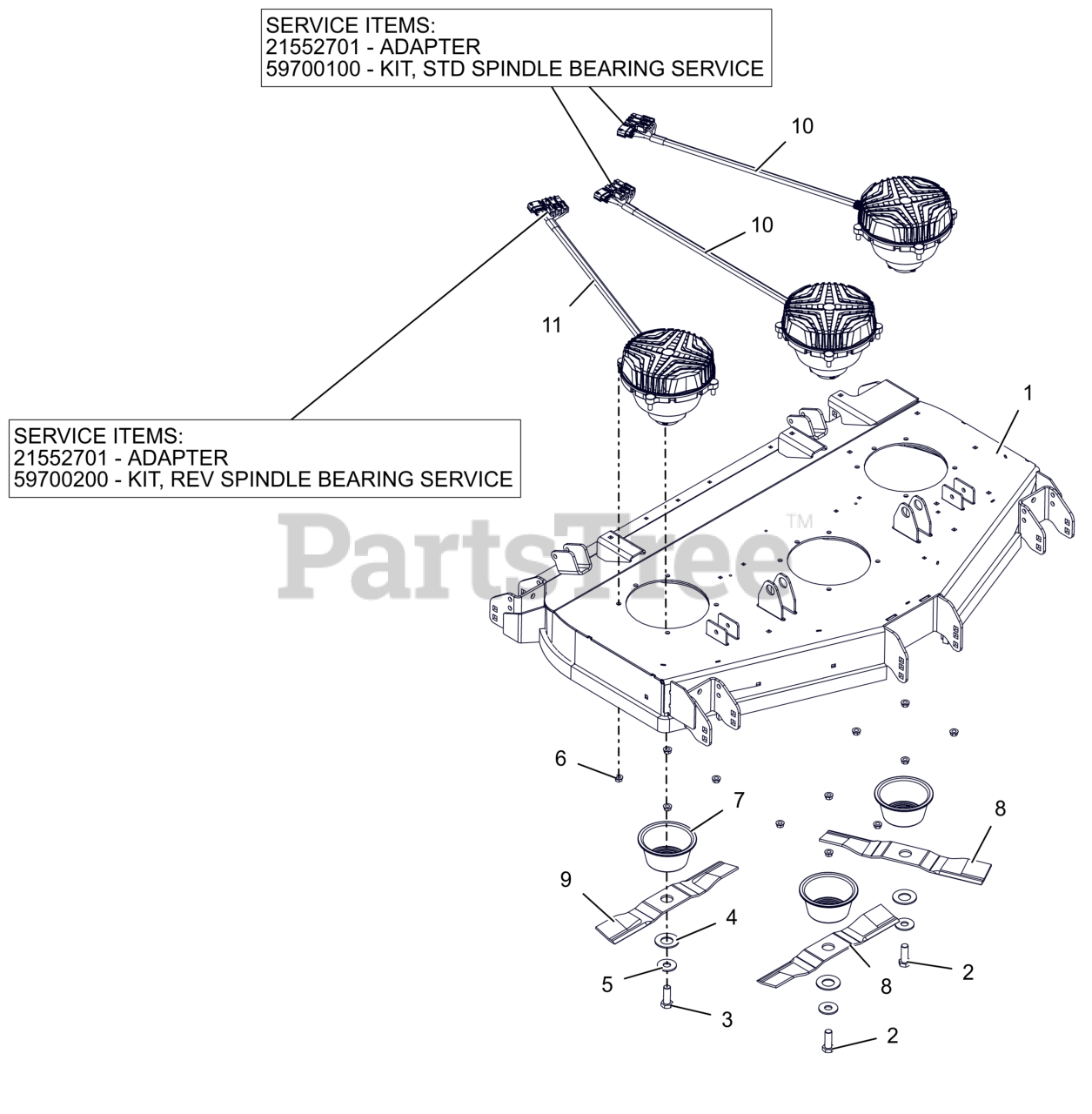

Deck, Blades and Spindle Motors - 48" - RD Parts Diagram

  • Title

1

Ariens 09699859

WLDMT, 48" PSEV REAR DISCHARGE DECK (ORANGE)

$

$

Currently unavailable

2

Ariens 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$4.99

$

In Stock, Qty 20+

0

3

Ariens 05902102

BLT, HEX 0.625-11X1.75 GR8 ZCC LH

$

$

Currently unavailable

4

Ariens 06401217

WSHR, BLVL - .56X28.5X3 PHOS.COAT

$

$

Currently unavailable

5

Ariens 06401218

WSHR, HRDN 0.687X1.75X0.134 HRD

$

$

Currently unavailable

6

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.99

$

In Stock, Qty 20+

0

7

Ariens 09163400

GUARD, SPINDLE LOWER

$

$

Currently unavailable

8

Ariens 09440000

BLADE- MOWER-16.19" LOW

$31.99

$

Usually ships in 4-12 days

0

9

Ariens 09466700

BLADE, MOWER -16.190" EFF CCW

$

$

Currently unavailable

10

Ariens 09475800

MOTOR, DECK - 48"/52" CW

$

$

Currently unavailable

10

Ariens 21552701

ADAPTER

Note: Component Service Part

$

$

Currently unavailable

10

Ariens 59700100

KIT,STD SPINDLE BEARING SERVICE

Note: Component Service Part

$

$

Currently unavailable

11

Ariens 09475900

MOTOR, DECK - 48"/52" CCW

$

$

Currently unavailable

11

Ariens 21552701

ADAPTER

Note: Component Service Part

$

$

Currently unavailable

11

Ariens 59700200

KIT,REV SPINDLE BEARING SERVICE

Note: Component Service Part

$

$

Currently unavailable
