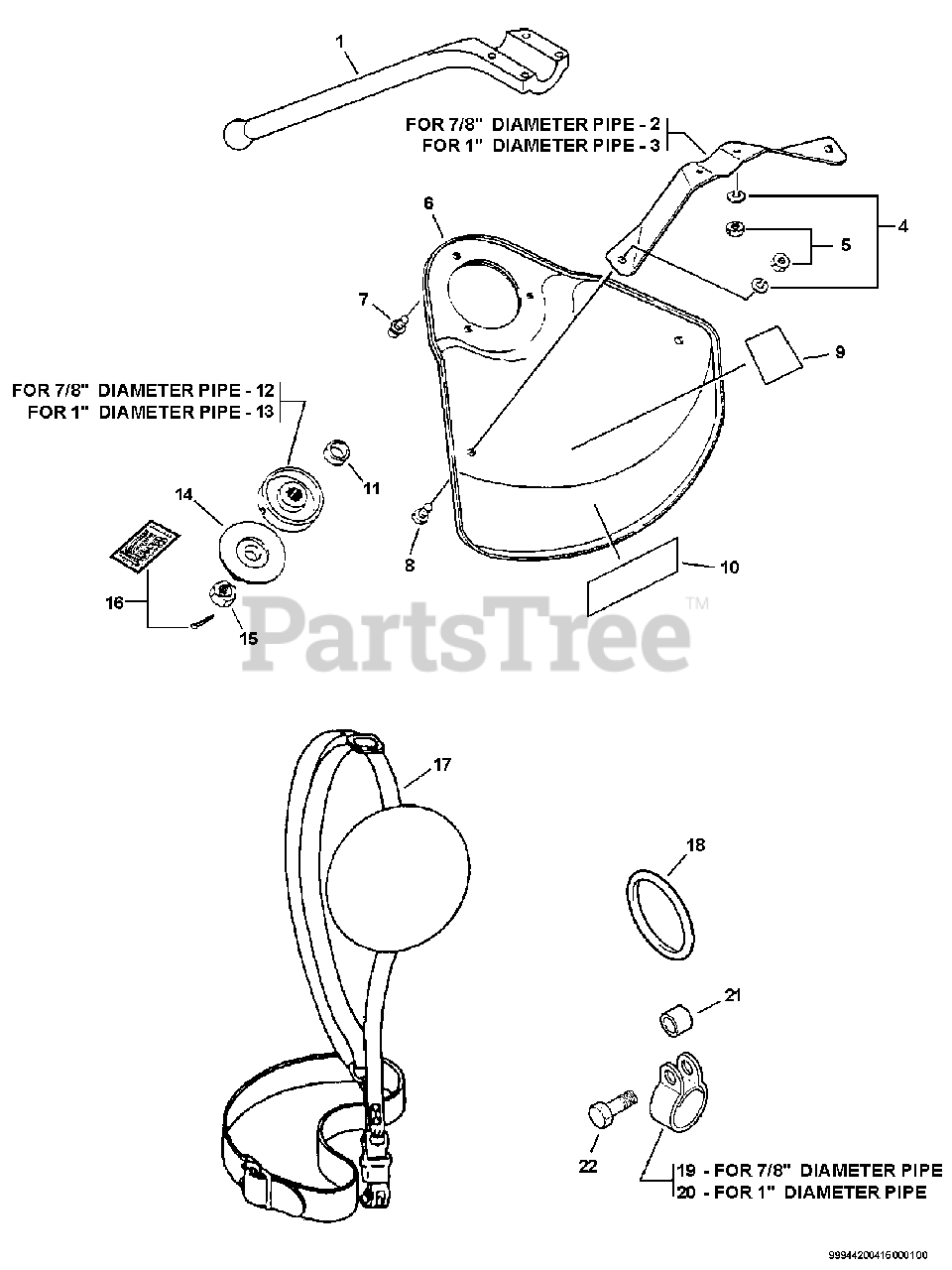

99944200415 - Echo Universal Blade Conversion Kit Barrier Bar, Shield, Harness Parts Diagram

Universal Blade Conversion Kit

Barrier Bar, Shield, Harness Parts Diagram

  • Title

1

Echo 35164351730

BAR, BARRIER

$7.49

$

Usually ships in 2-4 days

0

2

Echo 69901523431

BRACKET, SHIELD MOUNTING

Note: FOR 7/8" DIAMETER PIPE

$12.99

$

Usually ships in 2-4 days

0

3

Echo 69901523532

BRACKET, SHIELD MOUNTING

Note: FOR 1" DIAMETER PIPE

$8.49

$

Usually ships in 2-4 days

0

4

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

5

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

6

Echo C550000200

SHIELD, METAL DEBRIS

$17.99

$

In Stock, only 2 left!

0

7

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

8

Echo 90022005008

SCREW 5×8

$0.99

$

In Stock, only 3 left!

0

9

Echo 89016841031

LABEL, DANGER

$2.49

$

Usually ships in 2-4 days

0

10

Echo 89011848830

LABEL, ECHO
(Superseded to X502000320)

$0.99

$

In Stock, Qty 5

0

11

Echo 61031507130

SPACER 11.8×15×9

$4.49

$

In Stock, only 1 left!

0

12

Echo C535000160

PLATE, ADAPTOR - UPPER

Note: FOR 7/8" DIAMETER PIPE

$12.99

$

In Stock, Qty 16

0

13

Echo C535000140

PLATE, ADAPTOR - UPPER

Note: FOR 1" DIAMETER PIPE

$18.99

$

In Stock, only 2 left!

0

14

Echo C535000150

PLATE, ADAPTOR - LOWER

$10.99

$

In Stock, Qty 8

0

15

Echo 900511-00010

NUT 10

$1.99

$

In Stock, Qty 20+

0

16

Echo 900300-20022

PIN, COTTER 2×22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 14

0

17

Echo C062000070

HARNESS, SHOULDER
(Superseded to C062000310)

$25.99

$

In Stock, only 2 left!

0

18

Echo 30101652730

RING, HARNESS Ø32

$1.99

$

Usually ships in 2-4 days

0

19

Echo 301207-08930

HOOK

Note: FOR 7/8" DIAMETER PIPE

$5.99

$

Usually ships in 2-4 days

0

20

Echo 30120707530

HOOK

Note: FOR 1" DIAMETER PIPE

$6.99

$

Usually ships in 2-4 days

0

21

Echo 699012-03330

SPACER, GUARD

$1.99

$

In Stock, Qty 13

0

22

Echo 900100-05018

BOLT 5×18

$0.99

$

In Stock, Qty 8

0
