99944200470 - Echo Curved Shaft Edger Attachment (SN: S06000001001 - S06000999999) Gear Case S/N S06000001001 - S06000227400 Parts Diagram

Curved Shaft Edger Attachment

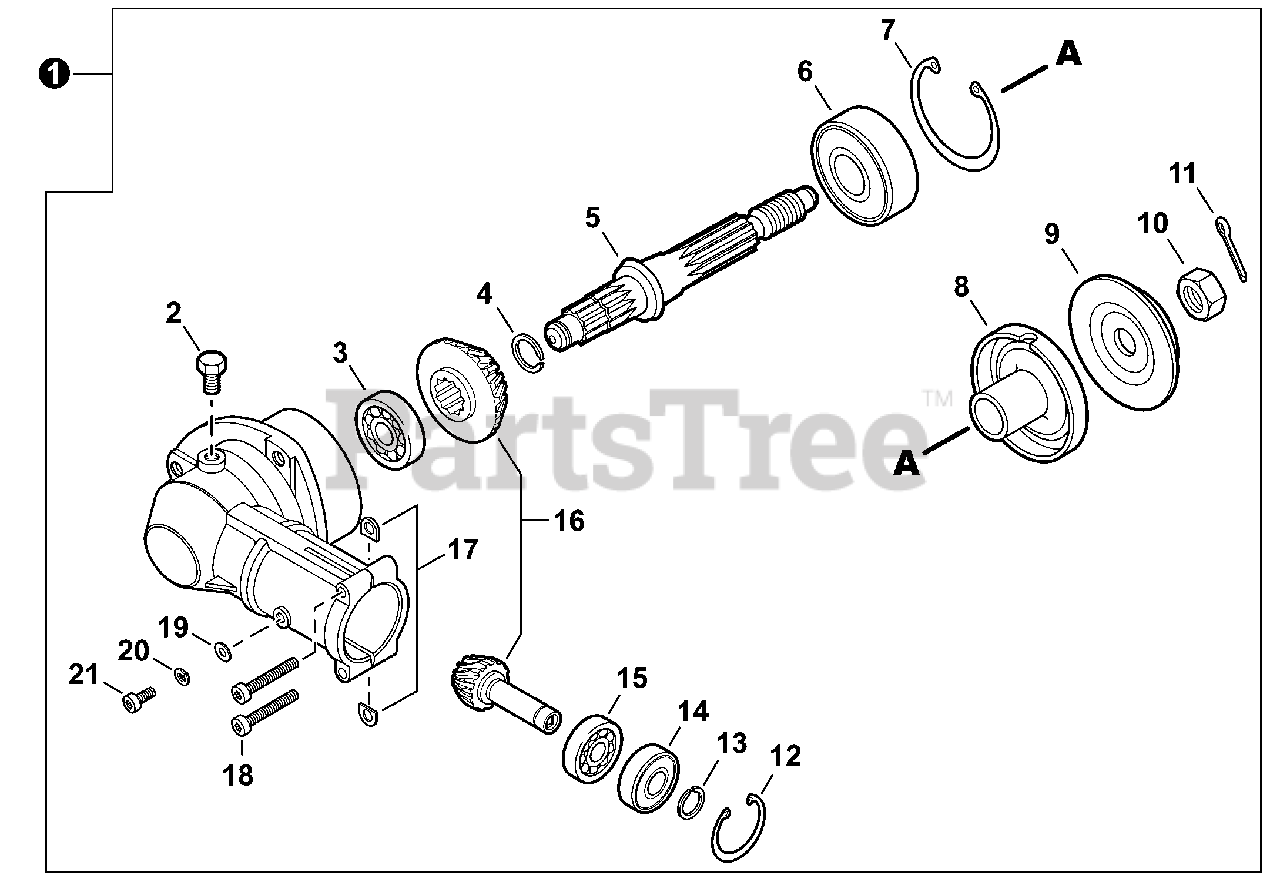

Gear Case S/N S06000001001 - S06000227400 Parts Diagram

  • Title

1

Echo P021049420

GEAR CASE ASSY

Note: Includes ITEMS 2-21

$142.99

$

In Stock, only 4 left!

0

2

Echo 61043450031

BOLT M8×8

$1.99

$

In Stock, Qty 20+

0

3

Echo 90081000629

BEARING, BALL 629

$16.99

$

Usually ships in 2-4 days

0

4

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 9

0

5

Echo C534000220

SHAFT, GEAR

$67.99

$

In Stock, only 1 left!

0

6

Echo 90081206302

BEARING, BALL 6302

$18.99

$

In Stock, Qty 9

0

7

Echo 90070200042

RING, SNAP Ø42

$1.99

$

In Stock, Qty 20+

0

8

Echo C535000100

PLATE, ADAPTOR - UPPER

$24.99

$

In Stock, Qty 9

0

9

Echo 61031404131

PLATE, ADAPTOR - LOWER
(Superseded to C535000150)

$10.99

$

In Stock, Qty 20+

0

10

Echo 90051300010

NUT 10×1.25 LH

$1.49

$

In Stock, Qty 20+

0

11

Echo 90030020022

PIN, COTTER 2×22

$0.99

$

In Stock, Qty 20+

0

12

Echo 90070200022

RING, SNAP Ø22

$2.49

$

In Stock, Qty 15

0

13

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

14

Echo 90085806900

BEARING, BALL 6900-Z

$25.99

$

In Stock, only 3 left!

0

15

Echo 90085506900

BEARING, BALL 6900

$20.99

$

In Stock, only 2 left!

0

16

Echo V000000020

GEAR SET

$67.99

$

In Stock, only 2 left!

0

17

Echo 61023904130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

18

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

19

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

20

Echo 90060500005

WASHER, SPRING 5

$0.99

$

In Stock, only 4 left!

0

21

Echo V805000130

BOLT, TORX 5×10

$0.99

$

In Stock, Qty 20+

0
