99944200475 - Echo Straight Shaft Edger Attachment (SN: S08500001001 - S08500999999) Edger Shield S/N: S08500004201 - S08500015099 Parts Diagram

Straight Shaft Edger Attachment

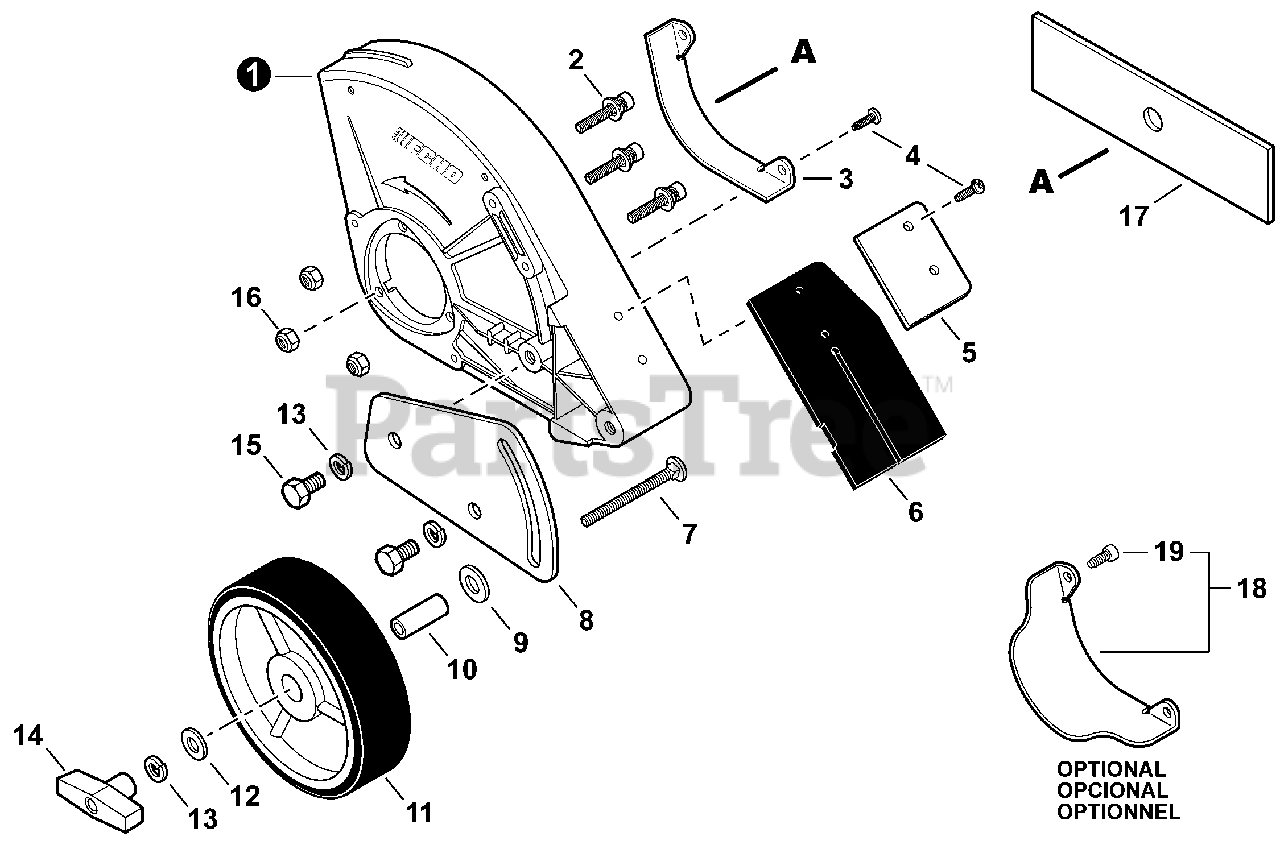

Edger Shield S/N: S08500004201 - S08500015099 Parts Diagram

  • Title

1

Echo C550000123

SHIELD, BLADE

$75.99

$

Usually ships in 2-4 days

0

2

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

3

Echo 69902552630

GUARD, SHIELD

$3.49

$

In Stock, Qty 14

0

4

Echo 90025304012

SCREW 4×12

$1.49

$

In Stock, Qty 20+

0

5

Echo C552000101

PLATE, FLAP

$1.99

$

In Stock, Qty 6

0

6

Echo C550000110

FLAP, DEBRIS

$3.49

$

In Stock, Qty 18

0

7

Echo 61025055330

BOLT 5/16"-18×2-1/2"

$1.99

$

In Stock, Qty 20+

0

8

Echo C712000110

BRACKET, WHEEL

$7.99

$

In Stock, Qty 9

0

9

Echo 90060200010

WASHER 10

$0.99

$

In Stock, Qty 20+

0

10

Echo 30242452630

COLLAR 12

$3.49

$

In Stock, Qty 20+

0

11

Echo C730000030

WHEEL
(Superseded to C730000120)

$10.99

$

In Stock, Qty 15

0

12

Echo 90060200008

WASHER 8

$0.99

$

In Stock, Qty 20+

0

13

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

14

Echo 17811355330

KNOB, FASTENER
(Superseded to V299000670)

$3.49

$

In Stock, Qty 20+

0

15

Echo 90010008014

BOLT 8×14

$0.99

$

In Stock, Qty 15

0

16

Echo 90056250005

NUT, LOCK M5

$0.99

$

In Stock, Qty 20+

0

17

Echo 69601552632

BLADE - 2 PK

$9.49

$

In Stock, only 2 left!

0
