99944200475 - Echo Straight Shaft Edger Attachment (SN: S08500001001 - S08500999999) Gear Case S/N: S08500001001 - S08500013216 Parts Diagram

Straight Shaft Edger Attachment

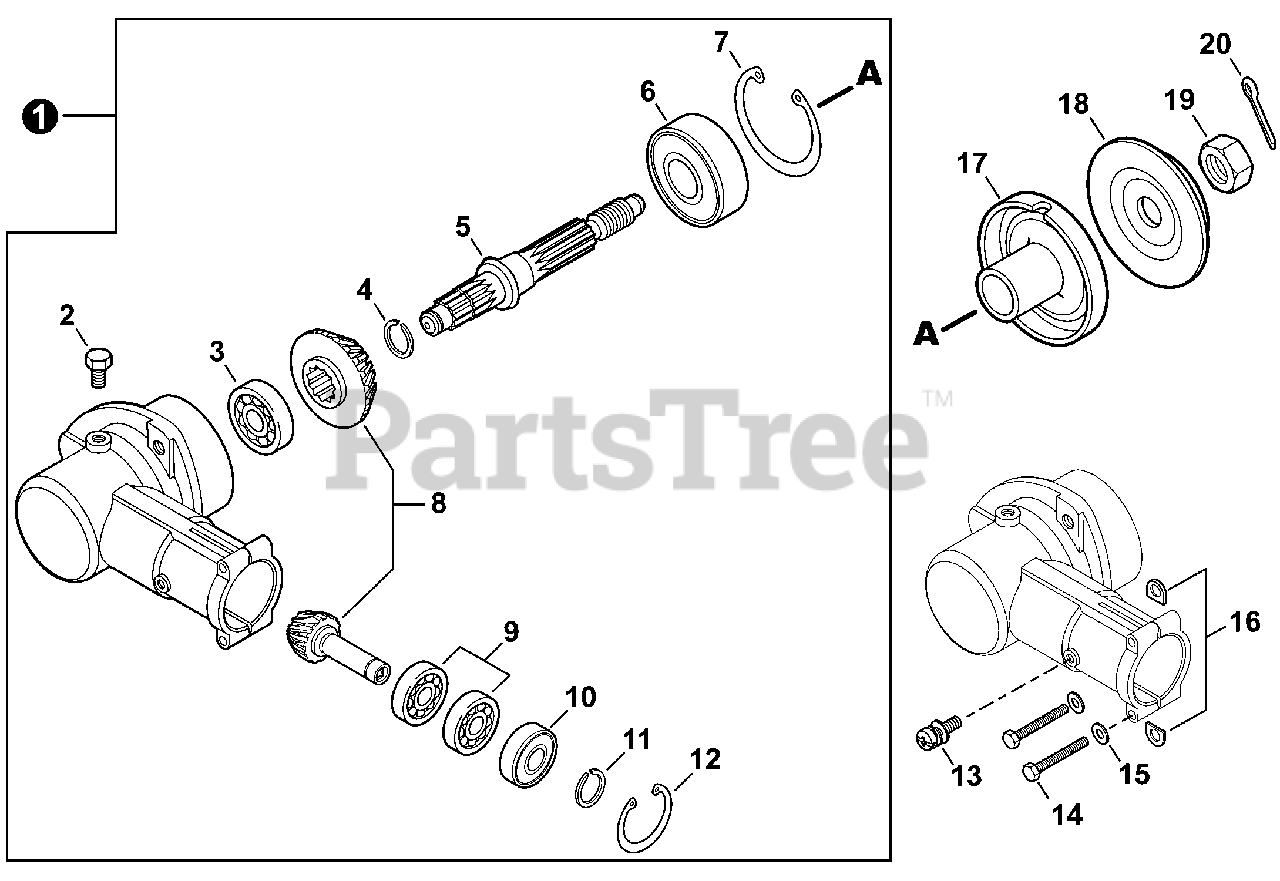

Gear Case S/N: S08500001001 - S08500013216 Parts Diagram

  • Title

1

Echo C051000331

GEAR CASE ASSY
(Superseded to C051001230)

Note: Includes ITEMS 2-12

$131.99

$

In Stock, only 3 left!

0

2

Echo 61043450031

BOLT M8×8

$1.99

$

In Stock, only 1 left!

0

3

Echo 90081000629

BEARING, BALL 629

$15.99

$

In Stock, only 2 left!

0

4

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 10

0

5

Echo C534000500

SHAFT, GEAR
(Superseded to C051001230)

$131.99

$

In Stock, only 3 left!

0

6

Echo 90081206302

BEARING, BALL 6302

$16.99

$

In Stock, Qty 8

0

7

Echo 90070200042

RING, SNAP Ø42

$1.99

$

In Stock, Qty 7

0

8

Echo P021015970

GEAR SET
(Superseded to C051001230)

$131.99

$

In Stock, only 3 left!

0

9

Echo 90085506900

BEARING, BALL 6900

$18.99

$

In Stock, Qty 7

0

10

Echo 90085806900

BEARING, BALL 6900Z

$22.99

$

In Stock, Qty 8

0

11

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

12

Echo 90070200022

RING, SNAP Ø22

$1.99

$

In Stock, only 2 left!

0

13

Echo 90024205012

SCREW 5×12

$0.99

$

In Stock, Qty 20+

0

14

Echo 90010005030

BOLT 5×30

$0.99

$

Usually ships in 2-4 days

0

15

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

16

Echo 61023904130

D-WASHER

$0.99

$

In Stock, Qty 7

0

17

Echo C535000100

PLATE, ADAPTOR - UPPER

$22.99

$

In Stock, only 4 left!

0

18

Echo C535000150

PLATE, ADAPTOR - LOWER

$9.49

$

In Stock, Qty 20+

0

19

Echo 90051300010

NUT 10×1.25 LH

$1.49

$

In Stock, Qty 20+

0

20

Echo 90030020022

PIN, COTTER 2×22

$0.99

$

In Stock, Qty 20+

0
