99944200485 - Echo Shaft Hedge Trimmer Attachment (SN: S07100001001 - S07100999999) Gear Case Parts Diagram

Shaft Hedge Trimmer Attachment

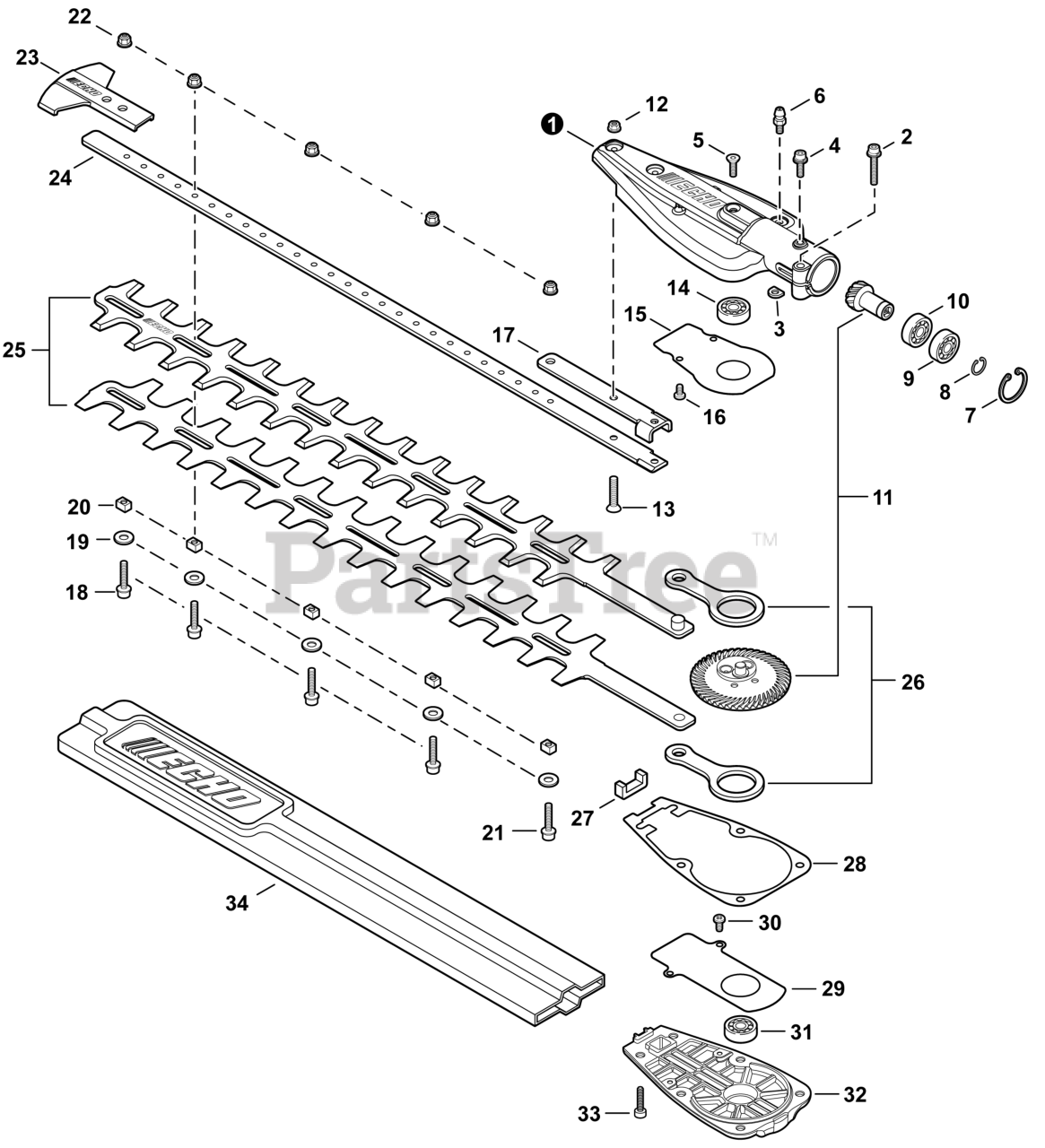

Gear Case Parts Diagram

  • Title

1

Echo C531000410

HOUSING, GEAR CASE
(Superseded to C531000411)

$42.99

$

In Stock, only 2 left!

0

2

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

3

Echo 61023904130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

4

Echo 90016205012

BOLT 5×12

$0.99

$

In Stock, Qty 20+

0

5

Echo V253000160

SCREW 5×5/8" HD-SOCKET

$0.99

$

In Stock, only 2 left!

0

6

Echo 88011054230

FITTING, GREASE

$5.99

$

In Stock, only 2 left!

0

7

Echo 61033521460

RING, RETAINING Ø24

$1.49

$

In Stock, only 4 left!

0

8

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 9

0

9

Echo 9405206901

BEARING, BALL

$17.99

$

In Stock, only 2 left!

0

10

Echo 90085806901

BEARING, BALL 6901Z
(Superseded to 9405206901)

$17.99

$

In Stock, only 2 left!

0

11

Echo P021045380

GEAR SET
(Superseded to P021045310)

$125.99

$

Usually ships in 2-4 days

0

12

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

13

Echo 90021205018

SCREW 5×18

$0.99

$

In Stock, Qty 20+

0

14

Echo 90080400608

BEARING, BALL 608ZZ

$14.99

$

In Stock, only 2 left!

0

15

Echo K123000020

PLATE, WEAR

$1.99

$

In Stock, Qty 8

0

16

Echo 9133004005

SCREW 4×5

$0.99

$

Usually ships in 2-4 days

0

17

Echo V150001860

SUPPORT, BLADE

$3.99

$

In Stock, Qty 7

0

18

Echo 90010605020

BOLT 5×20

$1.49

$

In Stock, Qty 5

0

19

Echo 17721421860

WASHER 5

$2.99

$

In Stock, Qty 20+

0

20

Echo V353000250

GUIDE, BLADE 5

$6.49

$

In Stock, Qty 20+

0

21

Echo 9110705022

BOLT, FLANGE 5×22

$0.99

$

In Stock, Qty 20+

0

22

Echo 9210805000

NUT, FLANGE M5

$1.49

$

In Stock, Qty 9

0

23

Echo E278000211

GUARD, TIP
(Superseded to 99988802000)

$10.99

$

In Stock, Qty 10

0

24

Echo X425000410

SUPPORT, BLADE

$45.99

$

In Stock, only 1 left!

0

25

Echo X411000650

CUTTER
(Superseded to X411000720)

$58.99

$

In Stock, only 1 left!

0

26

Echo C532000180

ROD, CONNECTING
(Superseded to C532000181)

$16.99

$

In Stock, only 2 left!

0

27

Echo V541000130

SEAL

$1.49

$

In Stock, Qty 20+

0

28

Echo V110000070

GASKET, GEAR CASE

$1.99

$

In Stock, Qty 20+

0

29

Echo K123000010

PLATE, WEAR

$1.99

$

In Stock, Qty 17

0

30

Echo 9133004005

SCREW 4×5

$0.99

$

Usually ships in 2-4 days

0

31

Echo 90081400628

BEARING, BALL 628ZZ

$9.49

$

In Stock, Qty 6

0

32

Echo C531000420

COVER, GEAR CASE

$43.99

$

In Stock, Qty 10

0

33

Echo 90010505012

BOLT 5×12

$1.49

$

In Stock, Qty 15

0

34

Echo X495000170

SCABBARD

$8.99

$

In Stock, only 1 left!

0
