99944200503 - Echo Curved Shaft Edger Attachment Gear Case Parts Diagram

Curved Shaft Edger Attachment

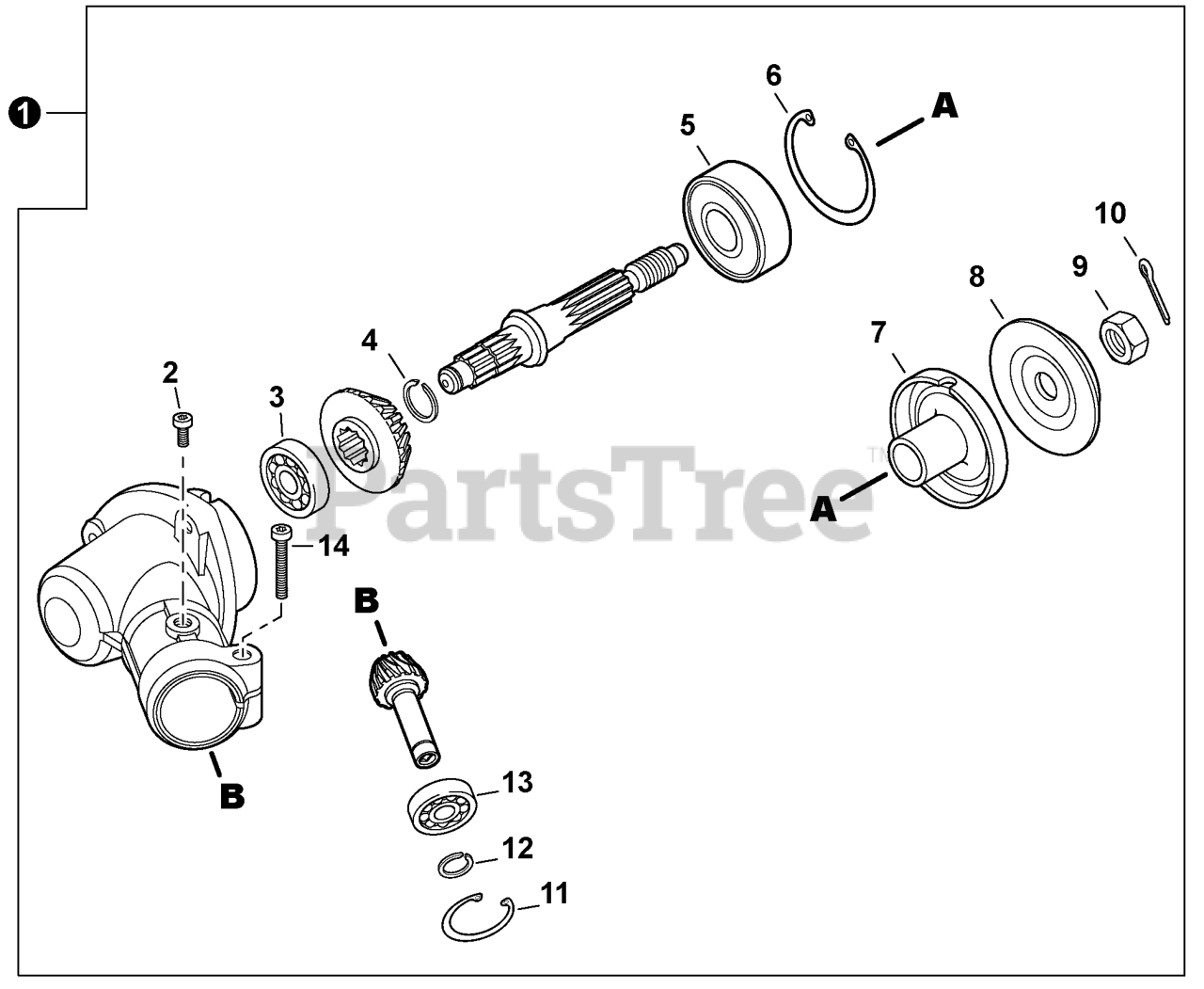

Gear Case Parts Diagram

  • Title

1

Echo P021054060

GEAR CASE ASSY

Note: Includes Items 2-14

$107.99

$

In Stock, Qty 5

0

2

Echo V805000140

BOLT, TORX 5x12

$0.99

$

In Stock, Qty 20+

0

3

Echo 9411000609

BEARING, BALL 609A

$11.99

$

In Stock, only 1 left!

0

4

Echo 90070600012

RING, SNAP 12

$1.49

$

In Stock, Qty 9

0

5

Echo 9411206201

BEARING, BALL 6201 2RS

$12.99

$

Usually ships in 2-4 days

0

6

Echo 90070200032

RING, SNAP 32

$1.99

$

In Stock, Qty 11

0

7

Echo C535001240

PLATE, ADAPTOR - UPPER

$22.99

$

In Stock, only 2 left!

0

8

Echo C535000150

PLATE, ADAPTOR - LOWER

$10.99

$

In Stock, Qty 20+

0

9

Echo 90051300010

NUT 10x1.25 LH

$1.49

$

In Stock, Qty 20+

0

10

Echo 90030020022

PIN, COTTER 2x22

$0.99

$

In Stock, Qty 20+

0

11

Echo 90070200024

RING, SNAP 24

$1.99

$

In Stock, only 4 left!

0

12

Echo 90070100009

RING, SNAP 9

$0.99

$

Usually ships in 2-4 days

0

13

Echo 9411100609

BEARING, BALL 609ZA

$11.99

$

In Stock, only 2 left!

0

14

Echo V805000170

BOLT, TORX 5x25

$0.99

$

In Stock, Qty 20+

0
