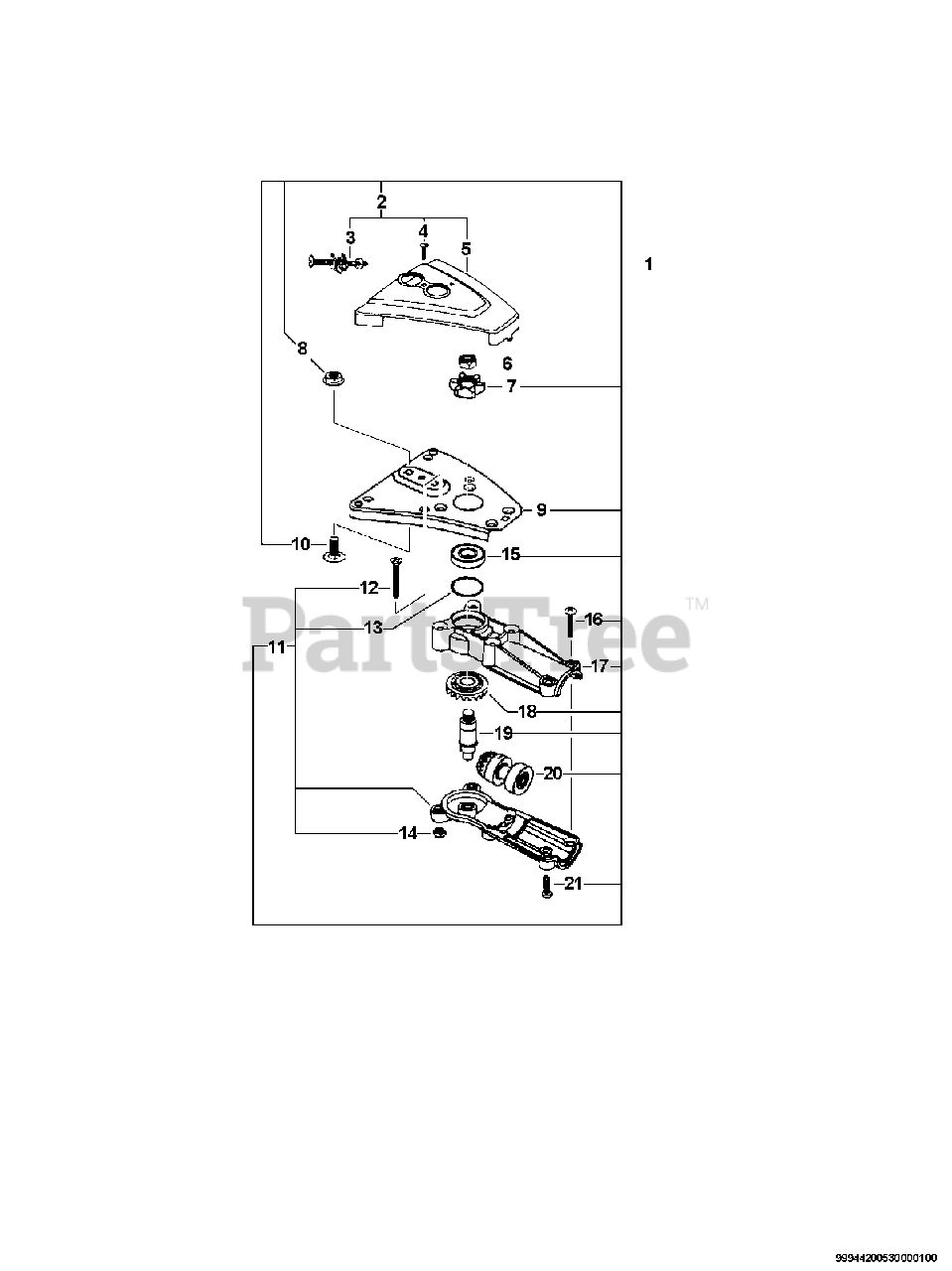

99944200530 - Echo Power Pruner Attachment Gear Case S/N: 001001 - 007319 Parts Diagram

Power Pruner Attachment

Gear Case S/N: 001001 - 007319 Parts Diagram

  • Title

1

Echo 61050922060

CUTTING HEAD ASSY

Note: TECHNIC TOOL 41014 Includes ITEMS 1-21

$221.99

$

Usually ships in 2-4 days

0

2

Echo 43300122060

SPROCKET COVER ASSY
(Superseded to Discontinued)

Note: TECHNIC TOOL 41006 Includes ITEMS 3-5

$

$

Not available

3

Echo 43301422060

ADJUSTER, CHAIN
(Superseded to 43309522360)

Note: TECHNIC TOOL 20118

$16.99

$

In Stock, only 2 left!

0

4

Echo 90005300100

SCREW - 8-32×1" - TORX PAN HEAD

Note: TECHNIC TOOL 45100

$0.99

$

Usually ships in 2-4 days

0

5

Echo 43301022060

GUARD, SPROCKET
(Superseded to Discontinued)

Note: TECHNIC TOOL 40135

$

$

Not available

6

Echo 90003000200

NUT, HEX

Note: TECHNIC TOOL 40512

$0.99

$

In Stock, only 2 left!

0

7

Echo 30281022060

SPROCKET

Note: TECHNIC TOOL 40123

$3.99

$

In Stock, only 2 left!

0

8

Echo 90004000100

NUT - FLANGE

Note: TECHNIC TOOL 40513

$0.99

$

Usually ships in 2-4 days

0

9

Echo 43300422060

SAW BAR CARRIER
(Superseded to Discontinued)

Note: TECHNIC TOOL 41001

$

$

Not available

10

Echo 90006000100

BOLT, CARRIAGE
(Superseded to Discontinued)

Note: TECHNIC TOOL 40509

$

$

Not available

11

Echo 61099024160

CASE, GEAR - RIGHT

Note: TECHNIC TOOL 41022 (WAS 41002) Includes ITEMS 12-14

$13.99

$

Usually ships in 2-4 days

0

12

Echo 90005700100

SCREW - TORX FLAT HEAD

Note: TECHNIC TOOL 45150 (WAS 40505 & 40506 2EA)

$0.99

$

Usually ships in 2-4 days

0

13

Echo 90003500400

SHIM 0.004"

Note: 40127

$1.99

$

Usually ships in 2-4 days

0

14

Echo 90003150100

NUT, LOCK 10-24 UNC

Note: TECHNIC TOOL 45170 (WAS 40508)

$0.99

$

In Stock, Qty 8

0

15

Echo 90080206001

BEARING, BALL 6001 DDU
(Superseded to 9404206001)

$11.99

$

In Stock, only 2 left!

0

16

Echo 90005300400

SCREW, TORX 10-24 UNC 1-1/4

Note: TECHNIC TOOL 45140 (WAS 40504)

$0.99

$

In Stock, only 4 left!

0

17

Echo 61046022760

CASE, GEAR - RIGHT

Note: TECHNIC TOOL 40131

$5.99

$

Usually ships in 2-4 days

0

18

Echo 61031122060

GEAR, BEVEL
(Superseded to P021011610)

Note: TECHNIC TOOL 40122

$

$

Not available

19

Echo 61030922160

SHAFT, GEAR

Note: TECHNIC TOOL 40125

$17.99

$

Usually ships in 2-4 days

0

20

Echo 61030922060

SHAFT, GEAR

Note: TECHNIC TOOL 41000

$55.99

$

In Stock, only 3 left!

0

21

Echo 90005400100

SCREW - TORX PAN HEAD
(Superseded to 9511113050)

Note: TECHNIC TOOL 40520

$0.99

$

In Stock, only 3 left!

0
