99944200552 - Echo ProSweep Attachment Gear Case Parts Diagram

ProSweep Attachment

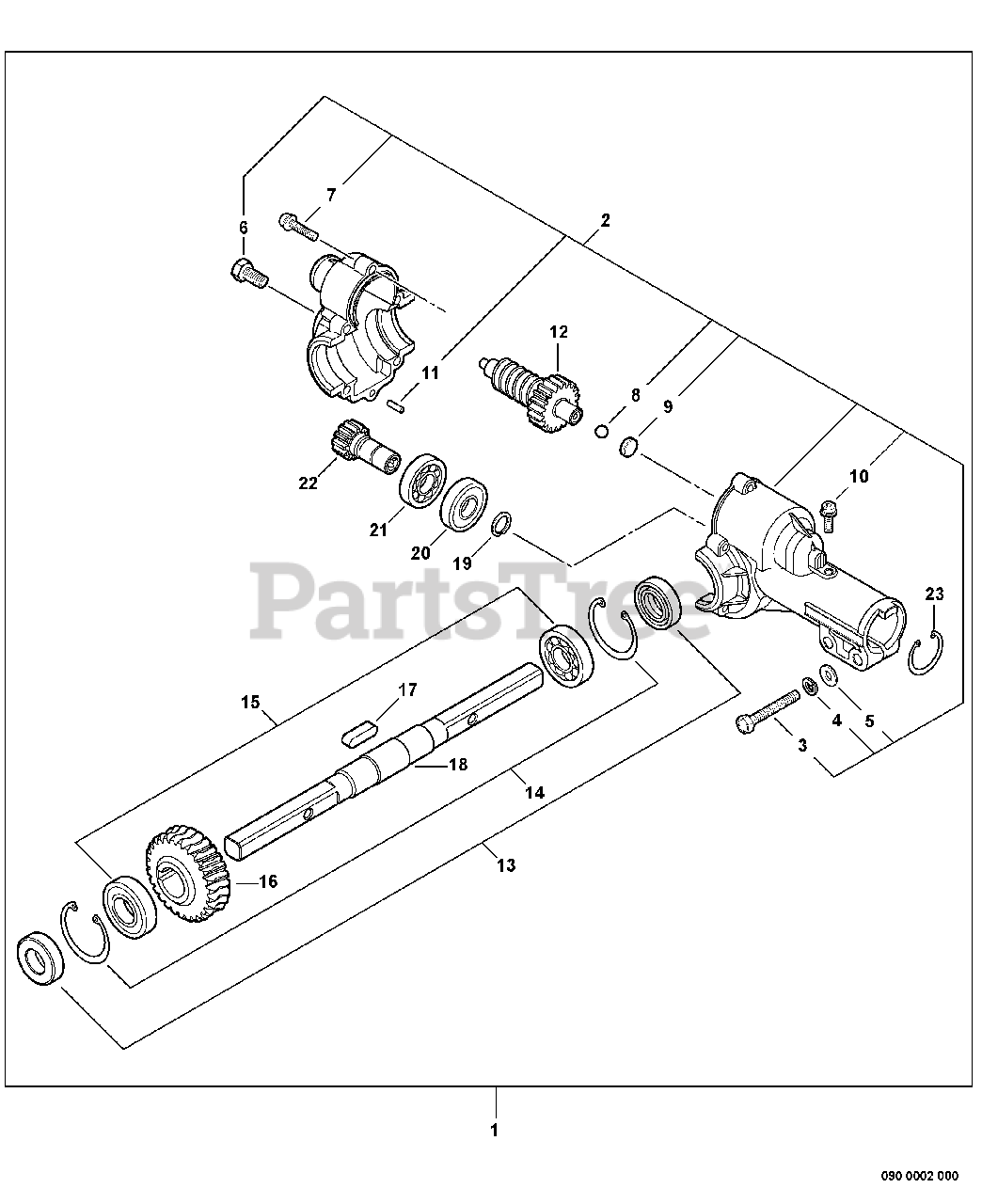

Gear Case Parts Diagram

  • Title

1

Echo 60140024960

GEAR CASE ASSY

Note: INCLUDES ITEMS 2-23

$355.99

$

Usually ships in 2-4 days

0

2

Echo 60540112050

GEAR CASE ASSY

Note: INCLUDES ITEMS 3-11

$185.99

$

Usually ships in 2-4 days

0

3

Echo 90010006025

BOLT - 6X25

$0.99

$

In Stock, Qty 20+

0

4

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, Qty 17

0

5

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

6

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 12

0

7

Echo 90024204025

SCREW - 4X25

$0.99

$

In Stock, only 2 left!

0

8

Echo 90073101004

BALL, STEEL

$0.99

$

Usually ships in 2-4 days

0

9

Echo 60532411050

WASHER - 3

$1.99

$

Usually ships in 2-4 days

0

10

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

11

Echo 60543011050

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

12

Echo 60531311050

GEAR - WORM
(Superseded to 60530511050)

$59.99

$

Usually ships in 2-4 days

0

13

Echo 60541611050

SEAL, OIL - 17

$6.49

$

Usually ships in 2-4 days

0

14

Echo 90070200030

RING, RETAINING - 30

$2.49

$

In Stock, only 4 left!

0

15

Echo 90085506903

BEARING, BALL - 6903

$19.99

$

Usually ships in 2-4 days

0

16

Echo 60531511050

WHEEL, WORM

$109.99

$

Usually ships in 2-4 days

0

17

Echo 90032504015

KEY

$3.49

$

Usually ships in 2-4 days

0

18

Echo 60531425560

SHAFT, WORM GEAR

$57.99

$

Usually ships in 2-4 days

0

19

Echo 90070600009

RING, RETAINING - 9

$1.49

$

In Stock, Qty 17

0

20

Echo 90080300609

BEARING, BALL - 609

$15.99

$

In Stock, only 1 left!

0

21

Echo 90080000609

BEARING, BALL - 609

$9.99

$

In Stock, Qty 16

0

22

Echo 60531011050

GEAR - DRIVE

$50.99

$

In Stock, only 1 left!

0

23

Echo 90070200025

RING, RETAINING - 25

$1.99

$

In Stock, Qty 5

0
