99944200570 - Echo Grass Trimmer Attachment Grass Trimmer Attachment Parts Diagram

Grass Trimmer Attachment

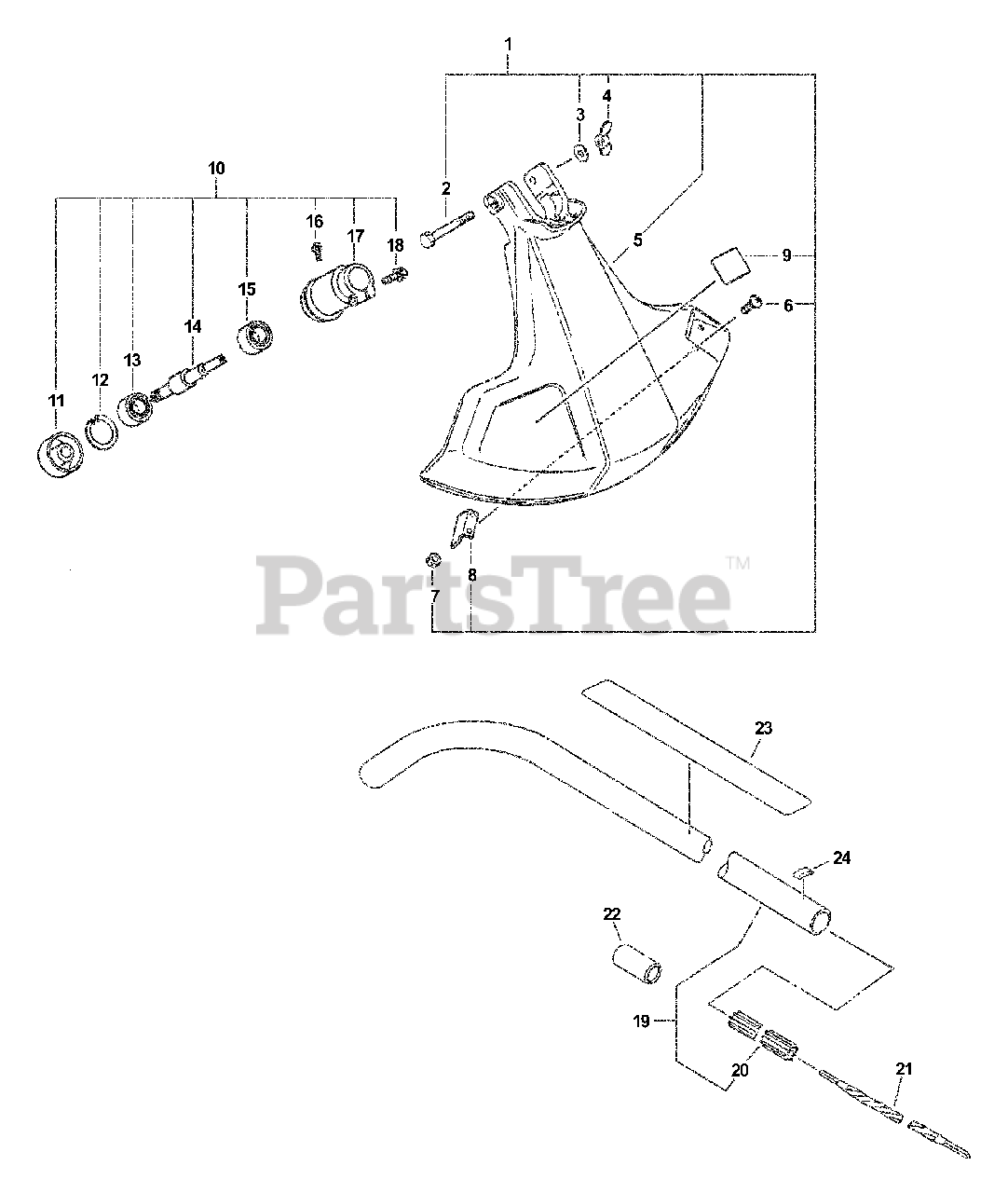

Grass Trimmer Attachment Parts Diagram

  • Title

1

Echo 69900452730

DEBRIS SHIELD KIT
(Superseded to P021016070)

Note: INCLUDES ITEMS 2-9

$23.99

$

In Stock, only 2 left!

0

2

Echo 90001708064

BOLT - 1/4-20 X 2"

$0.99

$

In Stock, Qty 10

0

3

Echo 90003500008

WASHER - 1/4"

$0.99

$

In Stock, Qty 10

0

4

Echo 90003300008

WINGNUT - 1/4-20

$0.99

$

In Stock, Qty 10

0

5

Echo 69901044330

SHIELD, DEBRIS - PLASTIC
(Superseded to 69901044331)

$12.99

$

In Stock, Qty 20+

0

6

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

7

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo 69901644330

KNIFE, TRIMMER LINE
(Superseded to C554000080)

$4.49

$

In Stock, Qty 20+

0

9

Echo 89016844330

LABEL - CAUTION

$3.99

$

Usually ships in 2-4 days

0

10

Echo 61040452430

GEAR CASE ASSY
(Superseded to C056000010)

Note: INCLUDES ITEM 11-18

$70.99

$

In Stock, only 2 left!

0

11

Echo 61030552430

ADAPTOR, BLADE - UPPER
(Superseded to C535000240)

$22.99

$

In Stock, only 2 left!

0

12

Echo 90070200030

RING, RETAINING - 30

$2.49

$

Usually ships in 2-4 days

0

13

Echo 90081106201

BEARING, BALL - 6201
(Superseded to Discontinued)

$

$

Not available

14

Echo 61031052430

GEAR - SHAFT
(Superseded to C534000341)

$28.99

$

In Stock, only 3 left!

0

15

Echo 90081006200

BEARING, BALL - 6200

$12.99

$

In Stock, only 1 left!

0

16

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

17

Echo 61041052430

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

18

Echo 90015205025

BOLT - 5X25

$1.49

$

In Stock, Qty 9

0

19

Echo 61020650730

MAIN PIPE ASSY

Note: Includes ITEM 20

$41.99

$

Usually ships in 2-4 days

0

20

Echo 61021750730

LINER - FLEXIBLE

$15.99

$

Usually ships in 2-4 days

0

21

Echo 61001350730

DRIVESHAFT - FLEXIBLE

$24.99

$

Usually ships in 2-4 days

0

22

Echo 61091056630

CUSHION
(Superseded to Discontinued)

$

$

Not available

23

Echo 89031744530

LABEL - CAUTION

$1.99

$

Usually ships in 2-4 days

0

24

Echo 89016844330

LABEL - CAUTION

$3.99

$

Usually ships in 2-4 days

0
