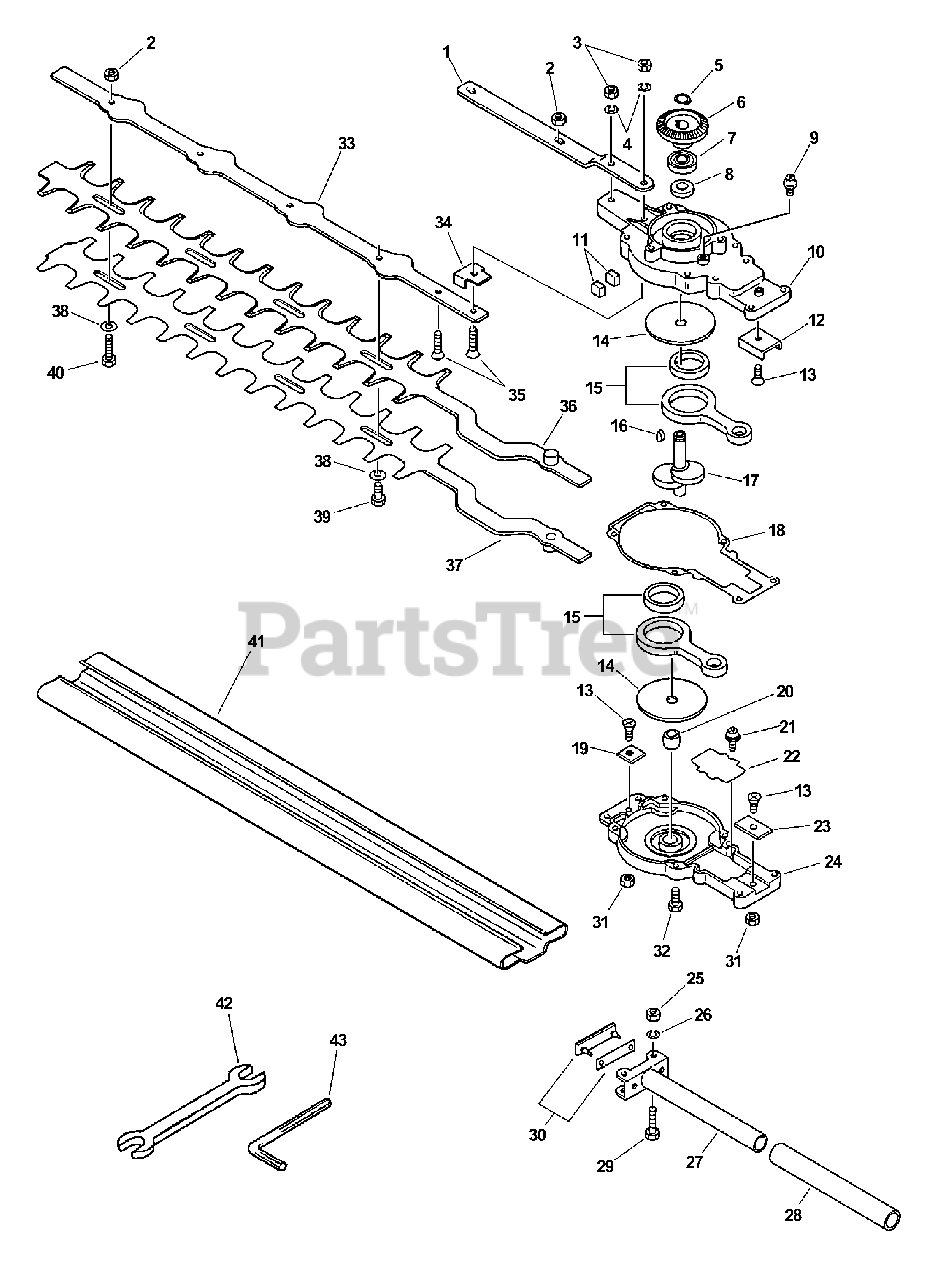

99944200590 - Echo Articulating Hedge Trimmer Attachment Gear Case, Blades Parts Diagram

Articulating Hedge Trimmer Attachment

Gear Case, Blades Parts Diagram

  • Title

1

Echo X425000080

SUPPORT, BLADE
(Superseded to 69911012360)

$15.99

$

Usually ships in 2-4 days

0

2

Echo 43302206460

LOCKNUT - 6

$1.49

$

In Stock, Qty 20+

0

3

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 6

0

5

Echo 90070100010

RING, RETAINING - 10

$0.99

$

In Stock, Qty 10

0

6

Echo 61031212360

GEAR - SPUR

$107.99

$

In Stock, only 1 left!

0

7

Echo 90080006000

BEARING, BALL - 6000

$10.99

$

In Stock, only 1 left!

0

8

Echo 10021305930

SEAL, OIL

$5.49

$

In Stock, only 1 left!

0

9

Echo 88011010860

FITTING, GREASE

$5.49

$

Usually ships in 2-4 days

0

10

Echo 61042012361

CASE, GEAR

$152.99

$

Usually ships in 2-4 days

0

11

Echo 61042654030

SEAL, FELT

$2.49

$

Usually ships in 2-4 days

0

12

Echo 61044154030

GUIDE

$10.99

$

Usually ships in 2-4 days

0

13

Echo 90021204008

SCREW - 4X8

$0.99

$

In Stock, Qty 8

0

14

Echo 61046254030

PLATE, SIDE

$9.49

$

Usually ships in 2-4 days

0

15

Echo 61080554030

ROD, CONNECTING

$67.99

$

Usually ships in 2-4 days

0

16

Echo 61032502730

KEY

$1.49

$

Usually ships in 2-4 days

0

17

Echo 61034412360

CAM

$77.99

$

Usually ships in 2-4 days

0

18

Echo V110000000

GASKET, GEAR CASE

$2.49

$

In Stock, only 1 left!

0

19

Echo 61045054030

PLATE, GUIDE

$5.49

$

Usually ships in 2-4 days

0

20

Echo 16061605410

BEARING, PLAIN

$3.49

$

Usually ships in 2-4 days

0

21

Echo 90024203006

SCREW - 3X6

$0.99

$

Usually ships in 2-4 days

0

22

Echo 61042454030

PLATE, SIDE

$11.99

$

In Stock, Qty 6

0

23

Echo 61044754030

PLATE

$5.49

$

Usually ships in 2-4 days

0

24

Echo 61040954031

LID, GEAR CASE

$62.99

$

Usually ships in 2-4 days

0

25

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

26

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 6

0

27

Echo 35130512360

HANDLE

$24.99

$

In Stock, Qty 14

0

28

Echo 35131512360

GRIP, HANDLE

Note: Not Required When Replacing ITEM 27

$10.99

$

Usually ships in 2-4 days

0

29

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, Qty 10

0

30

Echo V150000311

SPACER KIT

$1.99

$

Usually ships in 2-4 days

0

31

Echo 90050000004

NUT - 4

$0.99

$

In Stock, Qty 20+

0

32

Echo 90014205020

BOLT - 5X20

$0.99

$

In Stock, only 1 left!

0

33

Echo X425000070

SUPPORT, BLADE
(Superseded to 69911712360)

$39.99

$

Usually ships in 2-4 days

0

34

Echo 61044054030

PLATE, ANGLE

$5.49

$

Usually ships in 2-4 days

0

35

Echo 90021205020

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

36

Echo X411000130

BLADE - "TB" -- UPPER
(Superseded to X411000500)

$52.99

$

In Stock, only 1 left!

0

37

Echo X411000120

BLADE - "BB" -- LOWER
(Superseded to X411000490)

$52.99

$

In Stock, only 3 left!

0

38

Echo 69911804560

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

39

Echo 69911507760

BOLT - 6X22

$3.49

$

In Stock, Qty 14

0

40

Echo 69911504560

BOLT

$2.49

$

In Stock, Qty 20+

0

41

Echo X495000060

COVER, BLADE
(Superseded to X495000061)

$14.99

$

In Stock, only 1 left!

0

42

Echo A605000100

HEX KEY - 4mm

$

$

Currently unavailable

43

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, Qty 9

0
