99944200600 - Echo 80 Tooth Brushcutter Attachment (SN: S3360001001 - S33600999999) Gear Case S/N: S33600001001 - S33600039064 Parts Diagram

80 Tooth Brushcutter Attachment

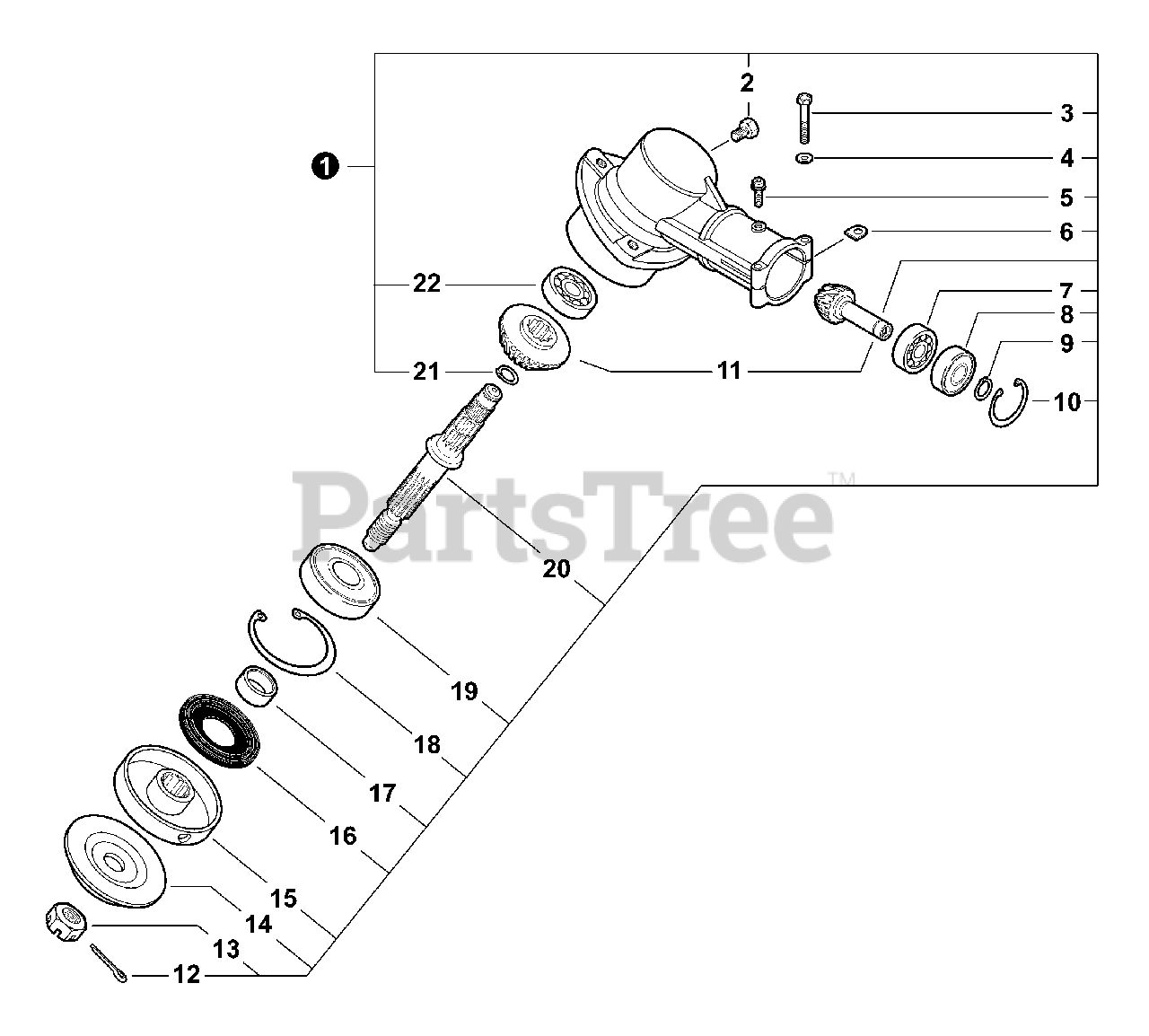

Gear Case S/N: S33600001001 - S33600039064 Parts Diagram

  • Title

1

Echo 61040240930

GEAR CASE ASY
(Superseded to 61040240932)

Note: Includes Items 2-22

$189.99

$

Usually ships in 2-4 days

0

2

Echo 90010008008

BOLT - 8×8

$0.99

$

In Stock, Qty 10

0

3

Echo 90010005035

BOLT - 5×35

$0.99

$

In Stock, Qty 9

0

4

Echo 90060000005

WASHER

$0.99

$

In Stock, Qty 20+

0

5

Echo 90024205010

SCREW - 5×10

$0.99

$

In Stock, Qty 20+

0

6

Echo 61023904130

WASHER, SHIM

$0.99

$

In Stock, Qty 20+

0

7

Echo 90085806900

BEARING, BALL - 6900

$27.99

$

In Stock, only 2 left!

0

8

Echo 90085506900

BEARING, BALL - 6900Z

$21.99

$

In Stock, only 2 left!

0

9

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0

10

Echo 90070200022

RING, RETAINING - 22

$2.49

$

In Stock, Qty 14

0

11

Echo 61030044830

GEAR SET - BEVEL

$106.99

$

Usually ships in 2-4 days

0

12

Echo 90030020022

PIN, SPLIT - 2×22

$0.99

$

In Stock, only 1 left!

0

13

Echo 90051100010

NUT - 10 -- LEFT HAND

$1.99

$

In Stock, Qty 20+

0

14

Echo 61031404131

ADAPTER, BLADE - LOWER
(Superseded to C535000150)

$10.99

$

In Stock, Qty 12

0

15

Echo 61033808930

ADAPTER, BLADE - UPPER
(Superseded to C535000160)

$12.99

$

In Stock, Qty 20+

0

16

Echo 61041307130

SEAL, OIL

$6.99

$

In Stock, only 1 left!

0

17

Echo 61031507130

SPACER

$4.49

$

In Stock, only 2 left!

0

18

Echo 90070200032

RING, RETAINING - 32

$2.49

$

In Stock, only 2 left!

0

19

Echo 90081036201

BEARING, BALL - 6201
(Superseded to 9403536201)

$9.99

$

In Stock, only 2 left!

0

20

Echo 61036008931

GEAR, SHAFT
(Superseded to C534000270)

$80.99

$

In Stock, only 4 left!

0

21

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 20+

0

22

Echo 90080000609

BEARING, BALL - 609

$11.99

$

In Stock, Qty 5

0
