99944200600 - Echo 80 Tooth Brushcutter Attachment (SN: S3360001001 - S33600999999) Gear Case S/N: S33600039065 - S33600999999 Parts Diagram

80 Tooth Brushcutter Attachment

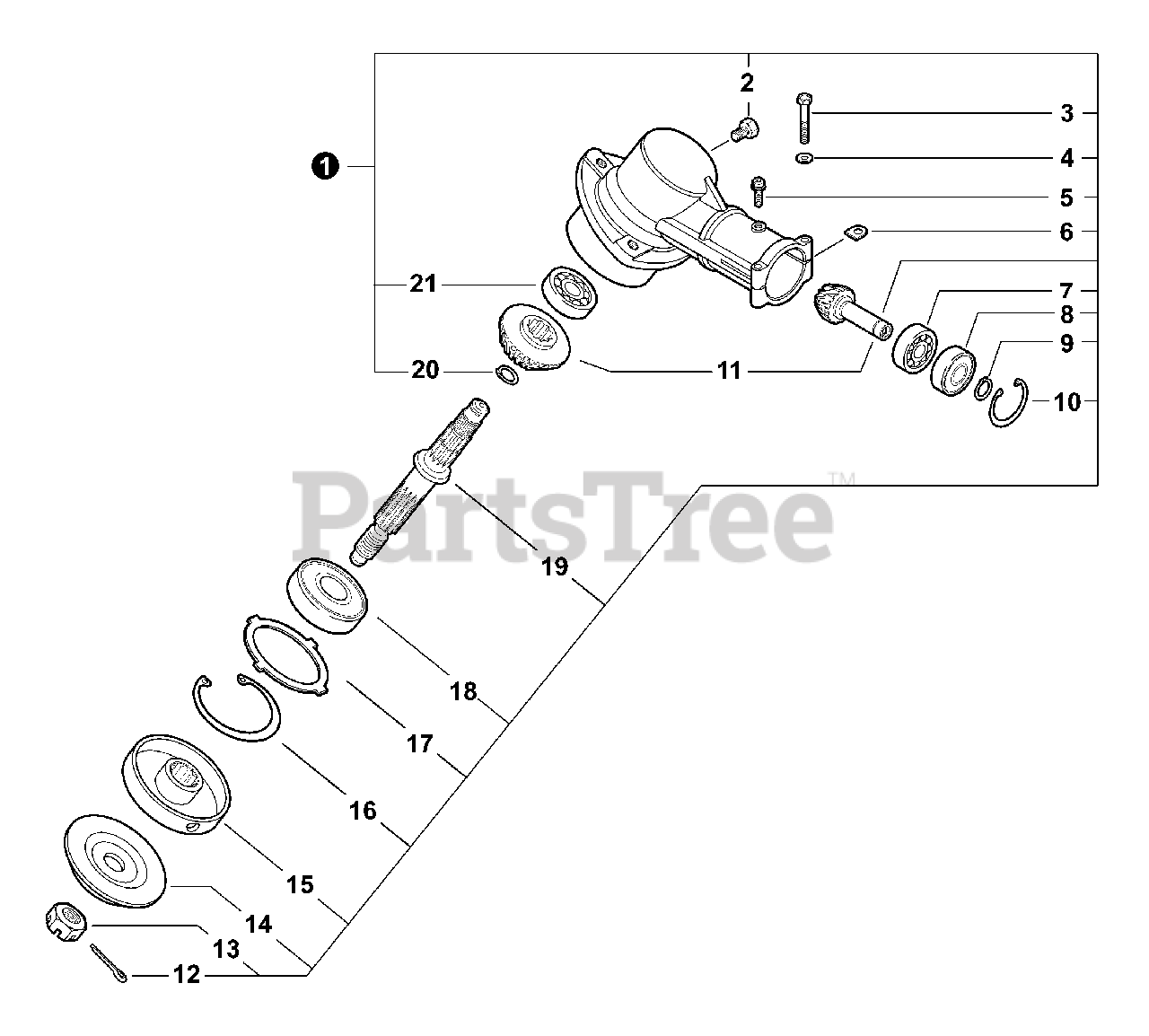

Gear Case S/N: S33600039065 - S33600999999 Parts Diagram

  • Title

1

Echo P021044900

GEAR CASE ASSY

Note: Includes Items 2-21

$189.99

$

Usually ships in 2-4 days

0

2

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

3

Echo 90010005035

BOLT 5×35 SP

$0.99

$

In Stock, Qty 5

0

4

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

5

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

6

Echo 90070200022

RING, SNAP Ø22

$2.49

$

In Stock, Qty 13

0

7

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

8

Echo 90085806900

BEARING, BALL 6900Z

$27.99

$

In Stock, only 2 left!

0

9

Echo 90085506900

BEARING, BALL 6900

$21.99

$

In Stock, only 2 left!

0

10

Echo 61030044830

GEAR SET

$106.99

$

Usually ships in 2-4 days

0

11

Echo 610434-50031

BOLT M8×8

$2.49

$

In Stock, Qty 7

0

12

Echo 900300-20022

PIN, COTTER 2×22

Note: Bulk Option: 89850201130 - 10 pack

$0.99

$

In Stock, Qty 14

0

13

Echo 900511-00010

NUT 10

$1.99

$

In Stock, Qty 20+

0

14

Echo 61031404131

PLATE, ADAPTOR - LOWER
(Superseded to C535000150)

$10.99

$

In Stock, Qty 8

0

15

Echo C535001160

PLATE, ADAPTOR - UPPER

$23.99

$

In Stock, only 2 left!

0

16

Echo V340000180

WASHER

$1.99

$

In Stock, Qty 9

0

17

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 2 left!

0

18

Echo 90081206201

BEARING, BALL 6201

$14.99

$

In Stock, only 3 left!

0

19

Echo 61036008931

SHAFT, GEAR
(Superseded to C534000270)

$80.99

$

In Stock, Qty 5

0

20

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 20+

0

21

Echo 9406000609

BEARING, BALL 609
(Superseded to 90080000609)

$11.99

$

In Stock, Qty 5

0
