99944200601 - Echo Brushcutter Attachment (SN: U02600001001 - U02600999999) Gear Case Parts Diagram

Brushcutter Attachment

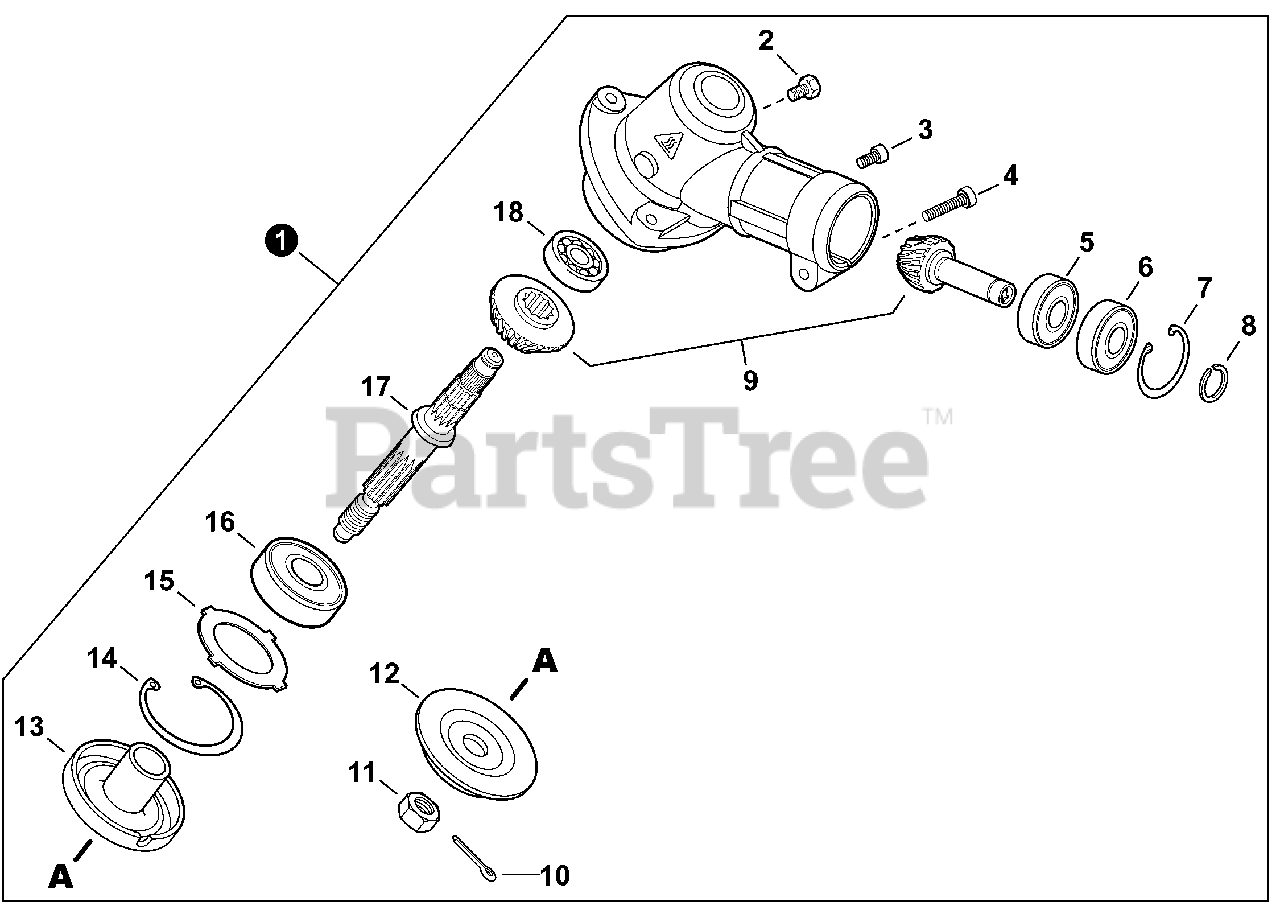

Gear Case Parts Diagram

  • Title

1

Echo P021052200

GEAR CASE ASSY
(Superseded to P021054040)

Note: Includes ITEMS 2-18

$116.99

$

In Stock, only 2 left!

0

2

Echo 61043450031

BOLT M8×8

$2.49

$

In Stock, only 4 left!

0

3

Echo V805000130

BOLT, TORX 5×10

$0.99

$

In Stock, Qty 20+

0

4

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

5

Echo 90080000609

BEARING, BALL 609

$11.99

$

In Stock, Qty 5

0

6

Echo 90080300609

BEARING, BALL 609

$19.99

$

Usually ships in 2-4 days

0

7

Echo 90070200025

RING, SNAP Ø25

$2.49

$

In Stock, Qty 5

0

8

Echo 90070100009

RING, SNAP Ø9

$0.99

$

Usually ships in 2-4 days

0

9

Echo V000000250

GEAR SET

$83.99

$

Usually ships in 2-4 days

0

10

Echo 90030020022

PIN, COTTER 2×22

$0.99

$

In Stock, only 1 left!

0

11

Echo 90051100010

NUT 10

$1.99

$

In Stock, Qty 20+

0

12

Echo C535000150

PLATE, ADAPTOR - LOWER

$10.99

$

In Stock, Qty 12

0

13

Echo C535000941

PLATE, ADAPTOR - UPPER
(Superseded to C535001240)

$23.99

$

In Stock, Qty 9

0

14

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 3 left!

0

15

Echo V340000180

WASHER

$1.99

$

In Stock, Qty 12

0

16

Echo 90081206201

BEARING, BALL 6201

$14.99

$

In Stock, only 4 left!

0

17

Echo C534001090

SHAFT, GEAR

$60.99

$

In Stock, only 2 left!

0

18

Echo 90081000629

BEARING, BALL 629

$18.99

$

In Stock, only 2 left!

0
