99944200907 - Echo Speed-Feed 400 Head SPEED-FEED 400 Trimmer Head Parts Diagram

Speed-Feed 400 Head

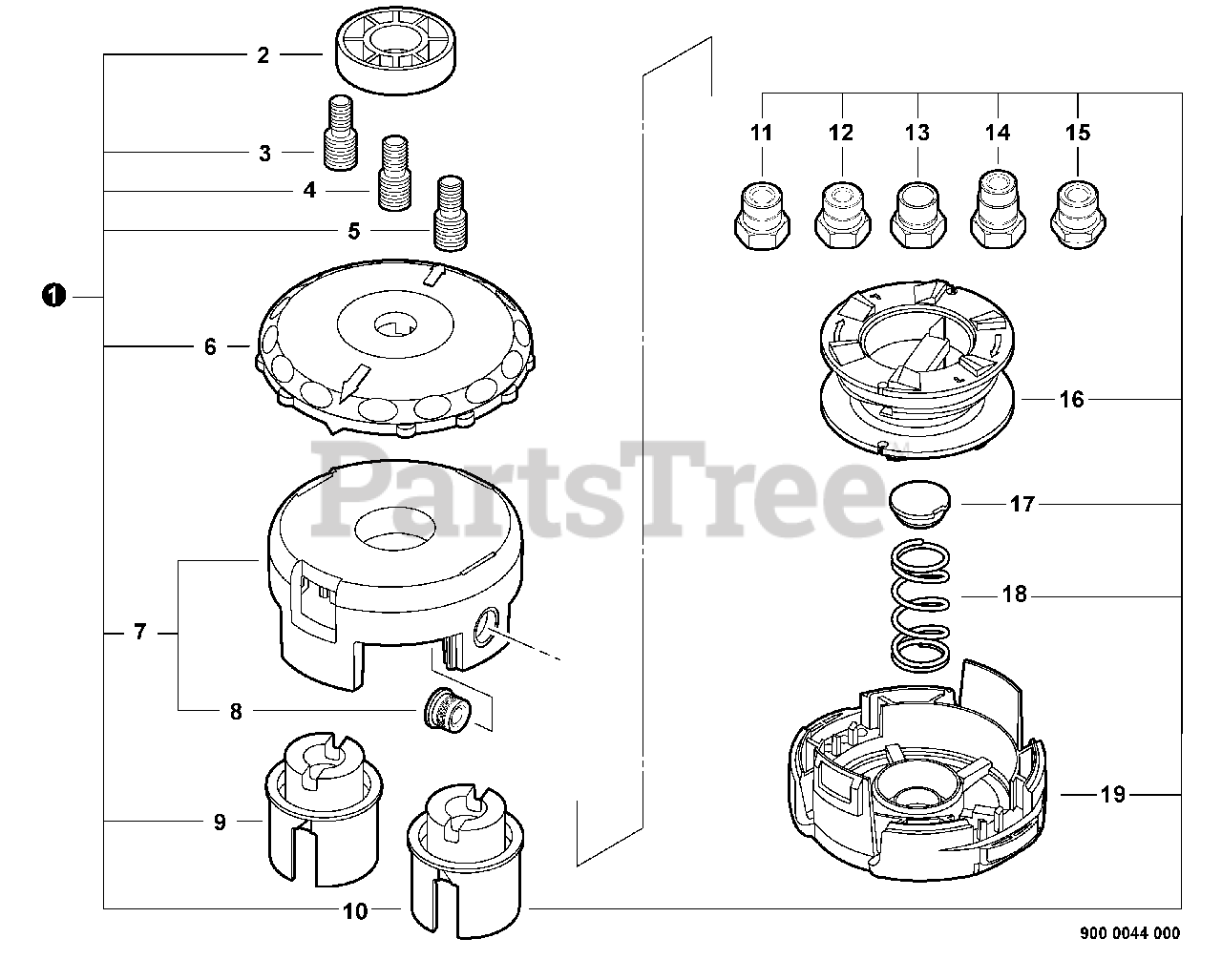

SPEED-FEED 400 Trimmer Head Parts Diagram

  • Title

1

Echo 99944200907

TRIMMER HEAD, SPEED-FEED® 400

Note: Includes ITEMS 2-19

$53.99

$

In Stock, Qty 20+

0

2

Echo V376001850

SPACER, BLACK

$5.49

$

In Stock, Qty 20+

0

3

Echo V216000070

BOLT, STUD M7×1.00 /M10×1.25 LH GOLD
(Superseded to V216000110)

$7.49

$

In Stock, Qty 12

0

4

Echo V225000300

BOLT, STUD M8/M10×1.25 LH SILVER
(Superseded to V225000320)

$7.49

$

In Stock, only 3 left!

0

5

Echo V225000231

BOLT, STUD M8×1.25 RH/3/8"-24UNF-2A BLACK
(Superseded to V225000310)

$8.49

$

Usually ships in 2-4 days

0

6

Echo E415000180

KNOB

$5.49

$

In Stock, Qty 7

0

7

Echo X470000330

HOUSING ASSY, SPOOL

Note: Includes ITEM 8

$13.99

$

In Stock, Qty 11

0

8

Echo X475000110

EYELET

$2.49

$

In Stock, Qty 20+

0

9

Echo X476000040

HUB (LH) BLACK

$3.99

$

In Stock, Qty 11

0

10

Echo X476000050

HUB (RH) WHITE

$3.99

$

In Stock, only 2 left!

0

11

Echo V160000150

BUSHING M10×1.25 LH GOLD

$7.49

$

In Stock, Qty 8

0

12

Echo V160000170

BUSHING M8×1.25 LH RED

$7.49

$

Usually ships in 2-4 days

0

13

Echo V160000180

BUSHING M10×1.00 LH GREEN

$7.49

$

In Stock, Qty 20+

0

14

Echo V160000190

BUSHING M10×1.25 LH SILVER

$7.49

$

Usually ships in 2-4 days

0

15

Echo V160000160

BUSHING 3/8"-24 RH BLACK
(Superseded to V160000050)

$11.99

$

Usually ships in 2-4 days

0

16

Echo X473000130

SPOOL

$9.99

$

In Stock, Qty 8

0

17

Echo V494000840

CAP, SPRING

$1.99

$

In Stock, Qty 20+

0

18

Echo V450001880

SPRING, GOLD

$2.99

$

In Stock, Qty 20+

0

19

Echo X472000070

COVER, SPOOL

$8.99

$

In Stock, Qty 20+

0
