99944230001 - Echo SRM Edger Attachment Gear Case - 10.5 pinion gear width Parts Diagram

SRM Edger Attachment

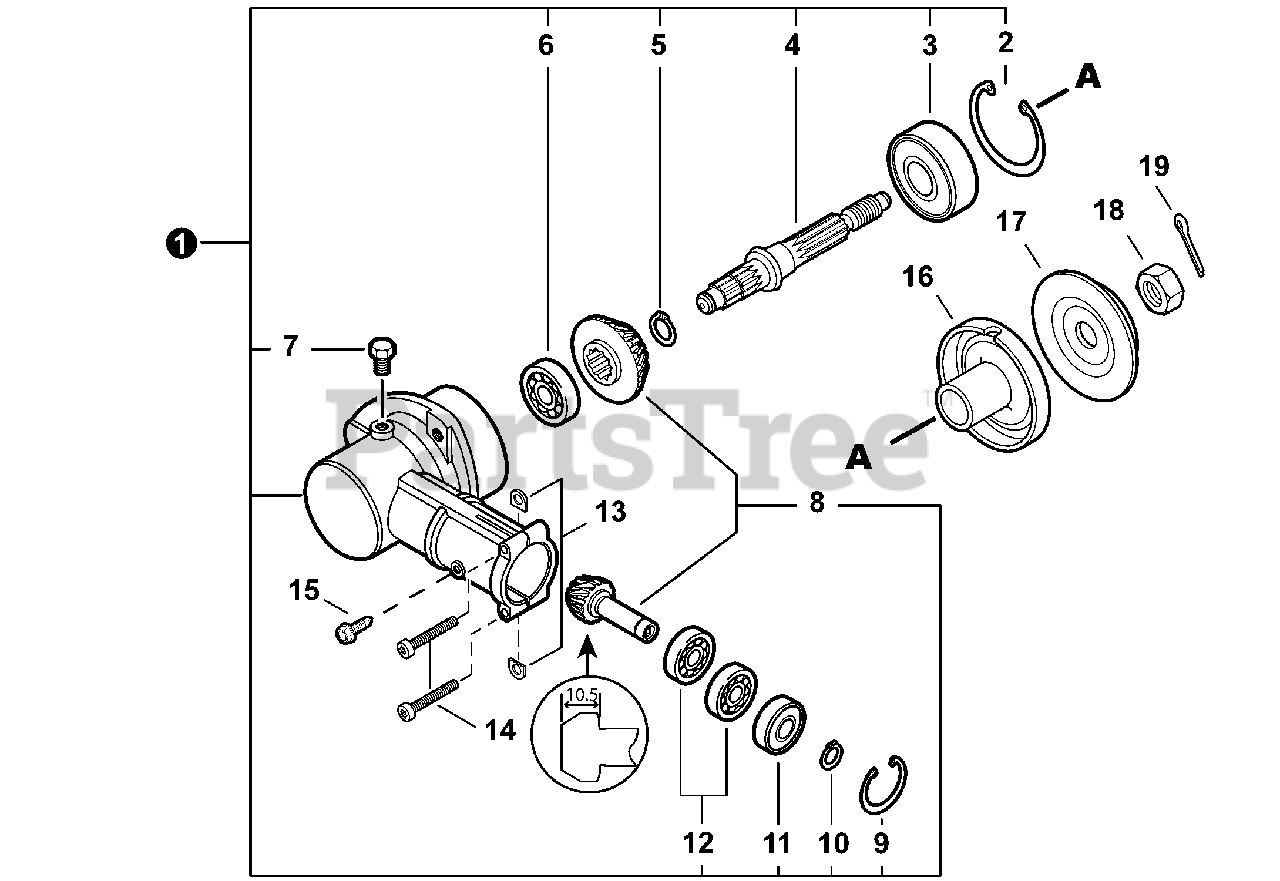

Gear Case - 10.5 pinion gear width Parts Diagram

  • Title

1

Echo C051000331

GEAR CASE ASSY
(Superseded to C051001230)

Note: Includes Items 2-12

$157.99

$

In Stock, only 2 left!

0

2

Echo 90070200042

RING, SNAP Ø42

$1.99

$

In Stock, Qty 20+

0

3

Echo 90081206302

BEARING, BALL 6302

$19.99

$

In Stock, only 3 left!

0

4

Echo C534000500

SHAFT, GEAR
(Superseded to C051001230)

$157.99

$

In Stock, only 2 left!

0

5

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 20+

0

6

Echo 90081000629

BEARING, BALL 629

$18.99

$

In Stock, only 2 left!

0

7

Echo 610434-50031

BOLT M8×8

$2.49

$

In Stock, Qty 7

0

8

Echo P021015970

GEAR SET
(Superseded to C051001230)

$157.99

$

In Stock, only 2 left!

0

9

Echo 90070200022

RING, SNAP Ø22

$2.49

$

In Stock, Qty 13

0

10

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

11

Echo 90085806900

BEARING, BALL 6900Z

$27.99

$

In Stock, only 2 left!

0

12

Echo 90085506900

BEARING, BALL 6900

$21.99

$

In Stock, only 2 left!

0

13

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

14

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

15

Echo V203001960

BOLT, 5 SELF DRILLING

$1.49

$

Usually ships in 2-4 days

0

16

Echo C535000100

PLATE, ADAPTOR - UPPER

$26.99

$

In Stock, only 2 left!

0

17

Echo 61031404131

PLATE, ADAPTOR - LOWER
(Superseded to C535000150)

$10.99

$

In Stock, Qty 8

0

18

Echo 90051300010

NUT 10×1.25 LH

$1.99

$

In Stock, Qty 20+

0

19

Echo 900300-20022

PIN, COTTER 2×22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 14

0
