99946400023 - Echo 4' Power Pruner Orange Extension

4' Power Pruner Orange Extension

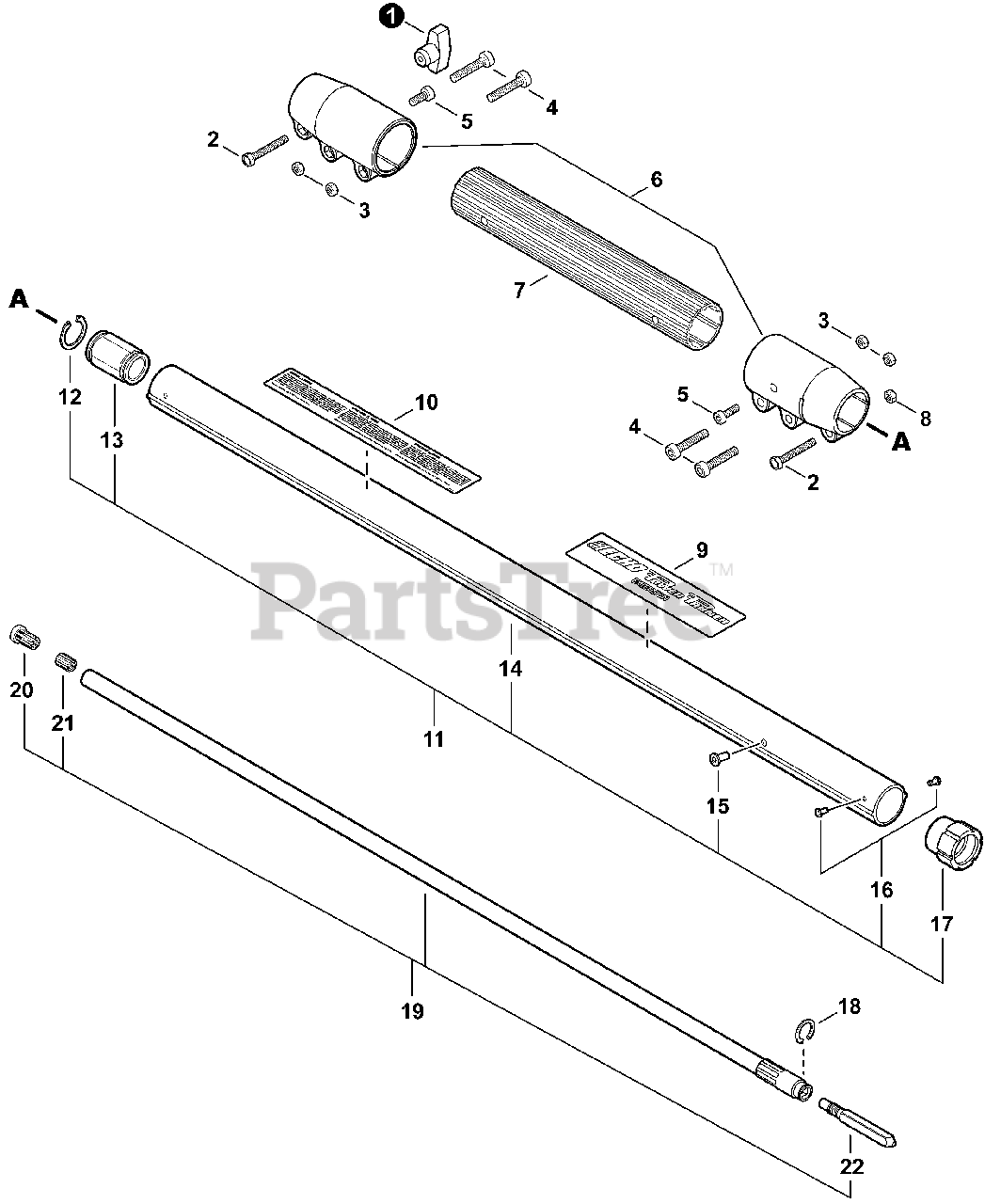

99946400023 - Echo 4' Power Pruner Orange Extension > Parts Diagrams (1) > 4 Foot Power Pruner Extension

  • Title
V299000321

1

THUMBSCREW

Part# V299000321 (Superseded to V299000660)

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $3.32

90010006025

2

BOLT 6×25

Part# 90010006025

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $0.69

90050000005

3

NUT 5

Part# 90050000005

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $0.45

V253000230

4

BOLT 5×20

Part# V253000230

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $0.38

90010505012

5

BOLT 5×12

Part# 90010505012

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $0.95

C510000280

6

COUPLING

Part# C510000280

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $4.90

C500000411

7

PIPE, MAIN

Part# C500000411

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.60

90050000006

8

NUT, HEX M6

Part# 90050000006

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $0.69

X547001550

9

LABEL, ECHO

Part# X547001550

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.77

89007522761

10

LABEL, CAUTION

Part# 89007522761

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 5 to 10 business days

Your price: $1.13

C050001410

11

MAIN PIPE ASSY

Part# C050001410

Note: Includes ITEMS 12-17

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 5 to 10 business days

Your price: $61.49

61033522460

12

RING, RETAINING

Part# 61033522460

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $1.20

C316000010

13

GUIDE, SHAFT

Part# C316000010

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $8.47

C500000370

14

MAIN PIPE

Part# C500000370

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 5 to 10 business days

Your price: $40.38

89001122460

15

RIVET

Part# 89001122460

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $0.95

89001122360

16

RIVET

Part# 89001122360

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $0.50

C503000080

17

HOLDER ASSY, BEARING

Part# C503000080

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $6.27

10022922460

18

RING, RETAINING

Part# 10022922460

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $0.69

C504000481

19

DRIVESHAFT ASSY

Part# C504000481

Note: Includes ITEMS 20-22

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 5 to 10 business days

Your price: $37.51

C509000080

20

SOCKET - OUTER

Part# C509000080

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $0.45

C509000090

21

SOCKET - INNER

Part# C509000090

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $1.88

61002522361

22

CONNECTOR, DRIVE SHAFT

Part# 61002522361

OEM Warranty Repair Part for Echo

Usually leaves our warehouse in 1 business day

Your price: $4.83
