99946400050 - Echo Power Pruner Circle Saw Accessory Circle Saw Asy Parts Diagram

Power Pruner Circle Saw Accessory

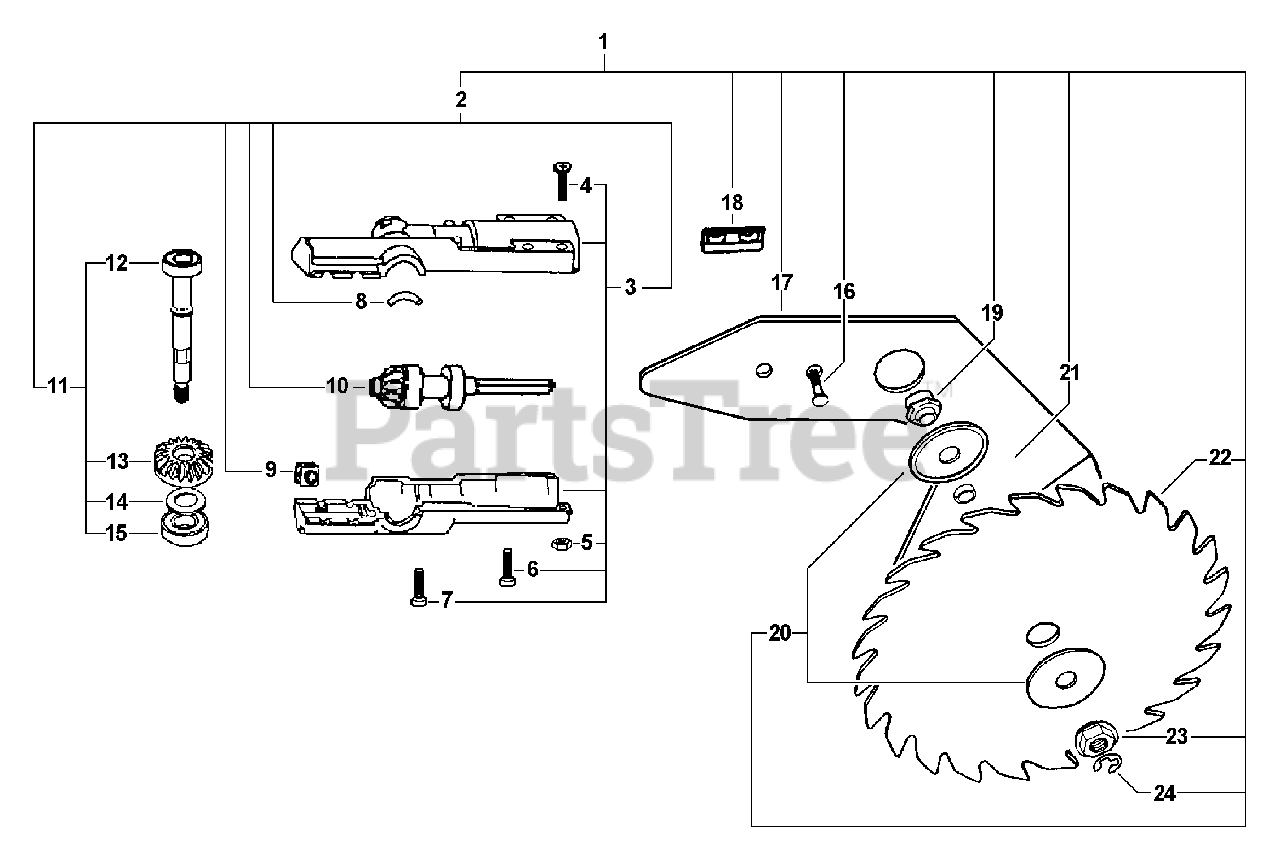

Circle Saw Asy Parts Diagram

  • Title

1

Echo 99946400050

CIRCLE SAW ACCESSORY

Note: INCLUDES ITEMS 2-24

$

$

Currently unavailable

2

Echo 61040022160

GEAR CASE ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 3-15

$

$

Not available

3

Echo 61040024060

GEAR CASE ASSY

Note: INCLUDES ITEMS 4-7

$55.99

$

Usually ships in 2-4 days

0

4

Echo 90005300400

SCREW - 10-24 X 1-1/4"

$0.99

$

In Stock, only 4 left!

0

5

Echo 90003150100

LOCKNUT - 10-24

$0.99

$

In Stock, Qty 8

0

6

Echo 90005300200

SCREW
(Superseded to Discontinued)

$

$

Not available

7

Echo 90005300300

SCREW - 10-24 X 7/8"

$1.49

$

Usually ships in 2-4 days

0

8

Echo 10491022360

CUSHION

$1.99

$

Usually ships in 2-4 days

0

9

Echo 11007622360

SPACER
(Superseded to Discontinued)

$

$

Not available

10

Echo 61030922360

SHAFT GEAR ASSY
(Superseded to 61030922361)

$63.99

$

In Stock, only 2 left!

0

11

Echo 61030922560

SHAFT GEAR ASSY

Note: Includes ITEMS 12-15

$73.99

$

Usually ships in 2-4 days

0

12

Echo 61030922460

SHAFT GEAR ASSY
(Superseded to Discontinued)

$

$

Not available

13

Echo 61031122360

GEAR - BEVEL

$20.99

$

Usually ships in 2-4 days

0

14

Echo 10013222060

WASHER

$0.99

$

Usually ships in 2-4 days

0

15

Echo 9404206001

BEARING, BALL - 6001

$11.99

$

In Stock, only 2 left!

0

16

Echo 90005600100

BOLT

$0.99

$

Usually ships in 2-4 days

0

17

Echo 69901722460

SHIELD, BLADE
(Superseded to Discontinued)

$

$

Not available

18

Echo 43305522360

BRACKET, GUIDE BAR

$11.99

$

In Stock, only 2 left!

0

19

Echo 61033622560

MOUNT, BLADE

$

$

Not available

20

Echo 61033622460

SAW COLLAR
(Superseded to Discontinued)

$

$

Not available

21

Echo 90003500300

ADAPTOR
(Superseded to Discontinued)

$

$

Not available

22

Echo 43162522060

BLADE
(Superseded to Discontinued)

$

$

Not available

23

Echo 90004000200

NUT - FLANGE
(Superseded to Discontinued)

$

$

Not available

24

Echo 10023922160

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0
