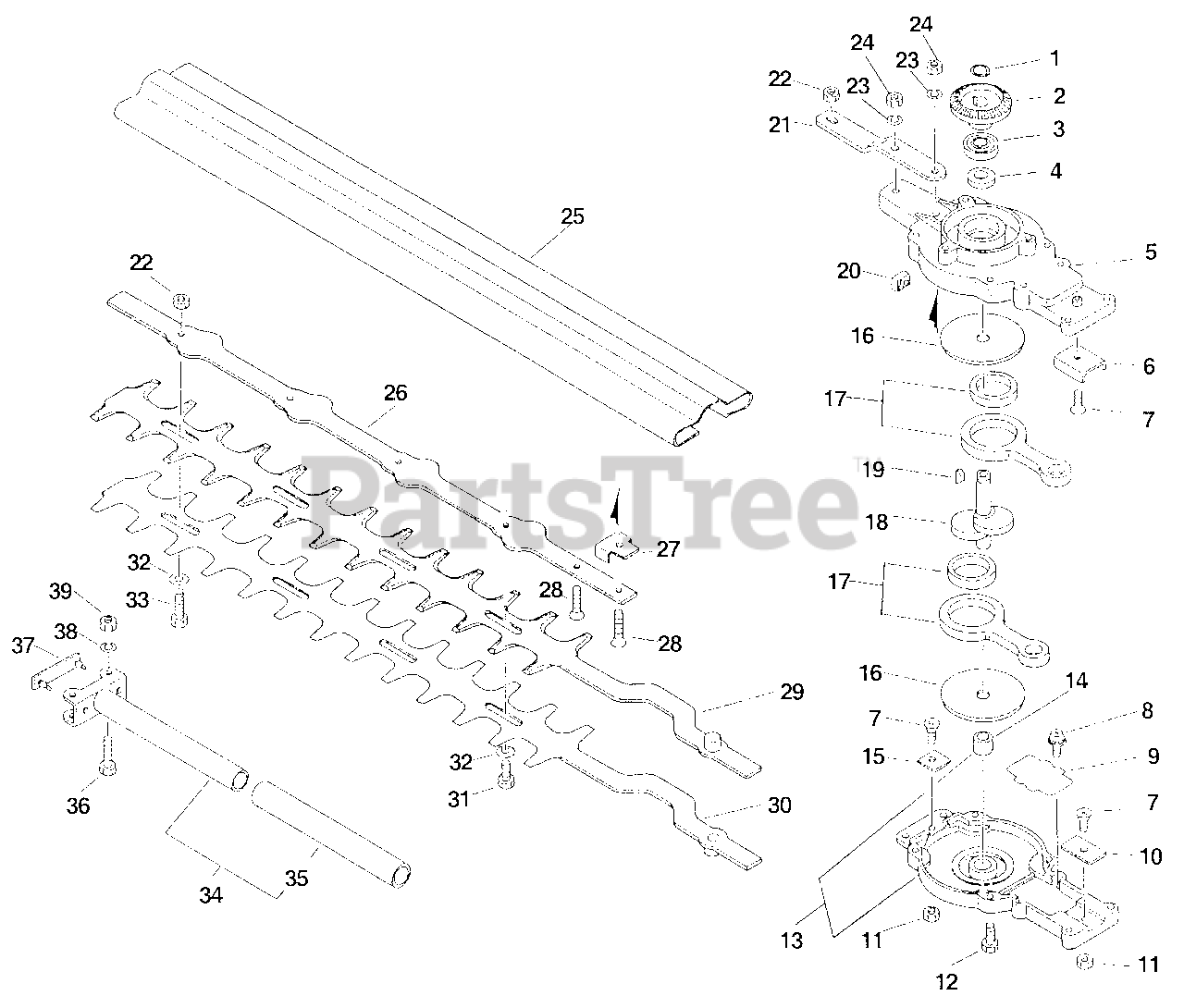

99946400060 - Echo Hedge Trimmer Attachment Gear Case, Blades Parts Diagram

Hedge Trimmer Attachment

Gear Case, Blades Parts Diagram

  • Title

1

Echo 90070100010

E-RING 10

$0.99

$

In Stock, Qty 10

0

2

Echo 61031212360

GEAR, SPUR

$107.99

$

In Stock, only 1 left!

0

3

Echo 90080006000

BEARING, BALL 6000

$10.99

$

In Stock, only 1 left!

0

4

Echo 10021305930

SEAL, OIL

$5.49

$

In Stock, only 1 left!

0

5

Echo 61042012361

GEARCASE

$152.99

$

Usually ships in 2-4 days

0

6

Echo 61044154030

GUIDE

$10.99

$

Usually ships in 2-4 days

0

7

Echo 90021204008

SCREW 4×8

$0.99

$

In Stock, Qty 8

0

8

Echo 90024203006

SCREW 3×6

$0.99

$

Usually ships in 2-4 days

0

9

Echo 61042454030

PLATE, SIDE

$11.99

$

In Stock, Qty 6

0

10

Echo 61044754030

PLATE, EYE

$5.49

$

Usually ships in 2-4 days

0

11

Echo 90050000004

NUT M4

$0.99

$

In Stock, Qty 20+

0

12

Echo 90014205020

BOLT 5×20

$0.99

$

In Stock, only 1 left!

0

13

Echo 61040954031

BEARING, PLAIN

Note: Includes item 14

$62.99

$

Usually ships in 2-4 days

0

14

Echo 16061605410

BEARING, PLAIN

$3.49

$

Usually ships in 2-4 days

0

15

Echo 61045054030

PLATE, GUIDE

$5.49

$

Usually ships in 2-4 days

0

16

Echo 61046254030

PLATE, SIDE

$9.49

$

Usually ships in 2-4 days

0

17

Echo 61080554030

CONROD ASSY

$67.99

$

Usually ships in 2-4 days

0

18

Echo 61034412360

CAM

$77.99

$

Usually ships in 2-4 days

0

19

Echo 61032502730

KEY

$1.49

$

Usually ships in 2-4 days

0

20

Echo 61042654030

SEAL

$2.49

$

Usually ships in 2-4 days

0

21

Echo 69911012360

SUPPORT, CUTTER

$15.99

$

Usually ships in 2-4 days

0

22

Echo 43302206460

NUT M6

$1.49

$

In Stock, Qty 20+

0

23

Echo 90060500005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 6

0

24

Echo 90050000005

NUT 5

$0.99

$

In Stock, Qty 20+

0

25

Echo X495000061

SCABBARD, BLADE

$14.99

$

In Stock, only 1 left!

0

26

Echo 69911712360

GUIDE BAR

$39.99

$

Usually ships in 2-4 days

0

27

Echo 61044054030

PLATE, ANGLE

$5.49

$

Usually ships in 2-4 days

0

28

Echo 90021205020

SCREW 5×20

$0.99

$

In Stock, Qty 20+

0

29

Echo X411000490

CUTTER, UPPER

$52.99

$

In Stock, only 3 left!

0

30

Echo X411000500

CUTTER, LOWER

$52.99

$

In Stock, only 1 left!

0

31

Echo 69911507760

BOLT, CUTTER

$3.49

$

In Stock, Qty 14

0

32

Echo 69911804560

WASHER 6.5×15.5×0.6

$0.99

$

In Stock, Qty 20+

0

33

Echo 69911504560

BOLT, CUTTER

$2.49

$

In Stock, Qty 20+

0

34

Echo 35130512360

ADJUSTOR ASSY, HANDLE

Note: Includes item 35

$24.99

$

In Stock, Qty 14

0

35

Echo 35131512360

GRIP, HANDLE

$10.99

$

Usually ships in 2-4 days

0

36

Echo 90014205025

BOLT, 5X25

$0.99

$

In Stock, Qty 10

0

37

Echo V150000311

EYE PLATE

$1.99

$

Usually ships in 2-4 days

0

38

Echo 90060500005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 6

0

39

Echo 90050000005

NUT 5

$0.99

$

In Stock, Qty 20+

0
