99988800130 - Echo Liquid Pump 99988800130 Liquid Pump Parts Diagram

Liquid Pump

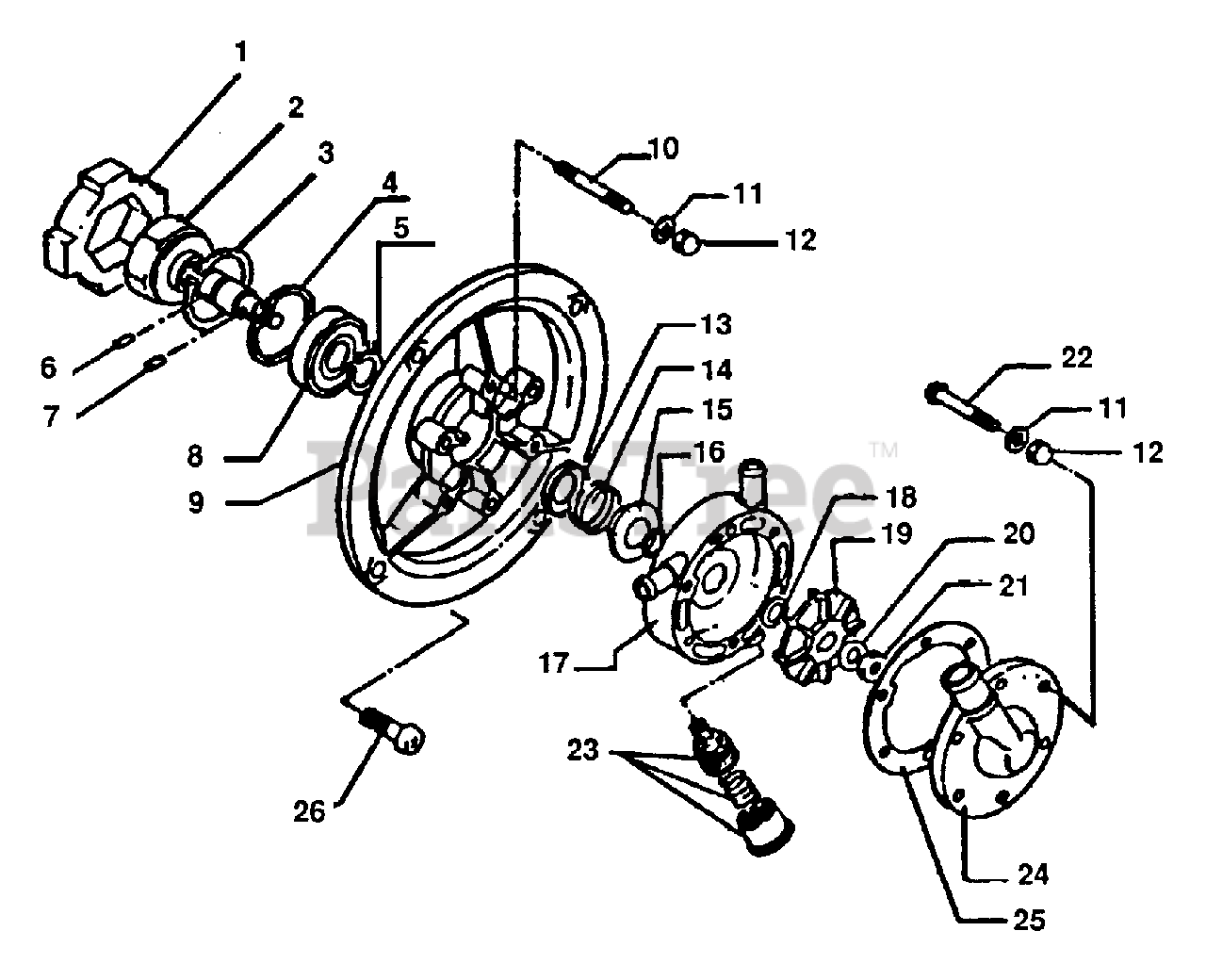

99988800130 Liquid Pump Parts Diagram

  • Title

1

Echo 60101001110

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

2

Echo 40010501110

SHAFT
(Superseded to Discontinued)

$

$

Not available

3

Echo 90070100030

RING, RETAINING - 30
(Superseded to Discontinued)

$

$

Not available

4

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 1 left!

0

5

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

6

Echo 40011400210

PIN
(Superseded to Discontinued)

$

$

Not available

7

Echo 40011300210

PIN
(Superseded to Discontinued)

$

$

Not available

8

Echo 90081406201

BEARING, BALL 6201-ZZ
(Superseded to 9405406201)

$14.99

$

In Stock, only 2 left!

0

9

Echo 40091002810

BASE, PUMP
(Superseded to Discontinued)

$

$

Not available

10

Echo 40091100910

STUD
(Superseded to Discontinued)

$

$

Not available

11

Echo 90060000004

WASHER 4 MM

$0.99

$

In Stock, Qty 9

0

12

Echo 40091200910

NUT

$1.49

$

Usually ships in 2-4 days

0

13

Echo 40011800910

RETAINER
(Superseded to Discontinued)

$

$

Not available

14

Echo 40011700910

SPRING
(Superseded to Discontinued)

$

$

Not available

15

Echo 40011500910

SEAL
(Superseded to Discontinued)

$

$

Not available

16

Echo 90072000009

O-RING 9 MM
(Superseded to Discontinued)

$

$

Not available

17

Echo 40020500910

BODY, PUMP
(Superseded to Discontinued)

$

$

Not available

18

Echo 40011100210

WASHER
(Superseded to Discontinued)

$

$

Not available

19

Echo 40011000910

IMPELLER
(Superseded to Discontinued)

$

$

Not available

20

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

21

Echo 90050400006

NUT - 6
(Superseded to Discontinued)

$

$

Not available

22

Echo 90022004038

SCREW 4×38
(Superseded to Discontinued)

$

$

Not available

23

Echo 88000001111

CUP ASSY, GREASE
(Superseded to Discontinued)

$

$

Not available

24

Echo 40021300910

LID
(Superseded to Discontinued)

$

$

Not available

25

Echo 40021200910

GASKET, PUMP
(Superseded to Discontinued)

$

$

Not available

26

Echo 90024206015

SCREW 6×15

$0.99

$

Usually ships in 2-4 days

0
