99988802200 - Echo FASTENSION Tool-Less Tensioning System 99988802200 Tool-Less Tensioner Parts Diagram

FASTENSION Tool-Less Tensioning System

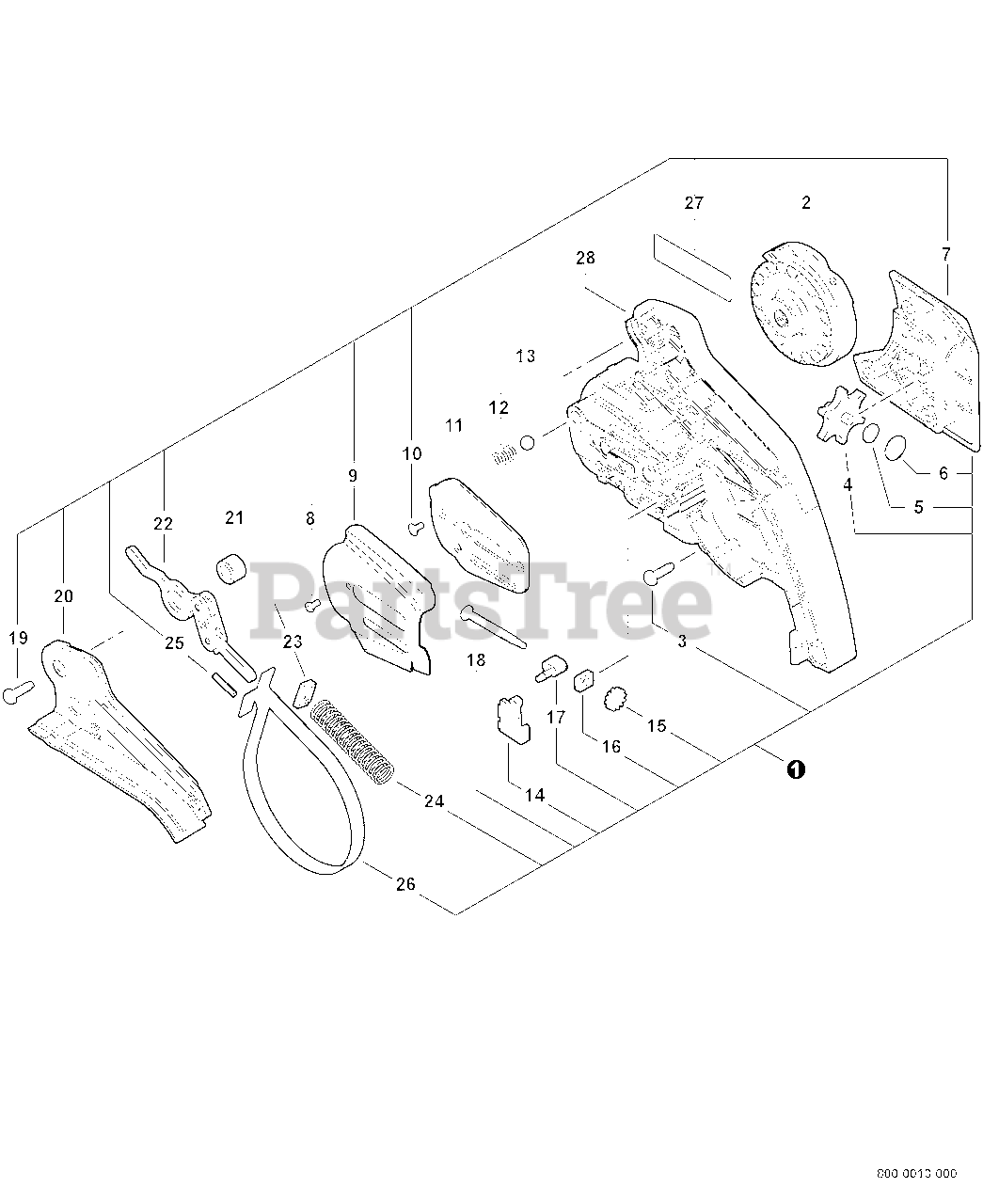

99988802200 Tool-Less Tensioner Parts Diagram

  • Title

1

Echo 99988802200

CHAIN BRAKE ASSY

Note: Includes ITEMS 2-28

$68.99

$

In Stock, only 1 left!

0

2

Echo J141000170

LOCK, COVER

$21.99

$

Usually ships in 2-4 days

0

3

Echo V202000060

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

4

Echo V650000600

DIAL, TENSION

$25.99

$

In Stock, only 1 left!

0

5

Echo V346000130

WASHER - SPRING

$1.49

$

In Stock, only 1 left!

0

6

Echo V303000360

WASHER - 5

$0.99

$

In Stock, only 1 left!

0

7

Echo C713000340

COVER, DIAL

$3.49

$

Usually ships in 2-4 days

0

8

Echo 90022003006

SCREW - 3X6

$0.99

$

In Stock, Qty 20+

0

9

Echo C305000420

PLATE, GUIDE - OUTER

$5.99

$

Usually ships in 2-4 days

0

10

Echo V251000140

SCREW - 3

$0.99

$

Usually ships in 2-4 days

0

11

Echo V150003241

COVER, TENSIONER

$3.49

$

Usually ships in 2-4 days

0

12

Echo V450001690

SPRING

$0.99

$

Usually ships in 2-4 days

0

13

Echo V585000060

BALL

$0.99

$

Usually ships in 2-4 days

0

14

Echo C233000080

COVER, DUST

$0.99

$

In Stock, Qty 7

0

15

Echo V650000590

GEAR - SPUR

$5.99

$

Usually ships in 2-4 days

0

16

Echo V352000280

COLLAR

$2.99

$

In Stock, only 1 left!

0

17

Echo C309000170

TENSIONER, CHAIN

$27.99

$

In Stock, only 1 left!

0

18

Echo V203002020

SCREW, TENSIONER

$2.99

$

In Stock, only 1 left!

0

19

Echo V202000060

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

20

Echo C345000530

COVER, BRAKE

$4.49

$

In Stock, only 2 left!

0

21

Echo 43311635430

SPACER - 8

$5.49

$

In Stock, Qty 11

0

22

Echo C334000090

CONNECTOR, BRAKE

$14.99

$

In Stock, Qty 7

0

23

Echo V376000450

GUIDE

$0.99

$

In Stock, Qty 15

0

24

Echo V450000070

SPRING

$2.49

$

In Stock, Qty 15

0

25

Echo 9305030098

PIN - SPRING

$0.99

$

In Stock, Qty 20+

0

26

Echo C328000080

BAND, BRAKE

$6.99

$

In Stock, Qty 15

0

27

Echo X502000340

LABEL - ECHO

$1.99

$

In Stock, Qty 18

0

28

Echo C300000910

GUARD, SPROCKET

$19.99

$

Usually ships in 2-4 days

0
