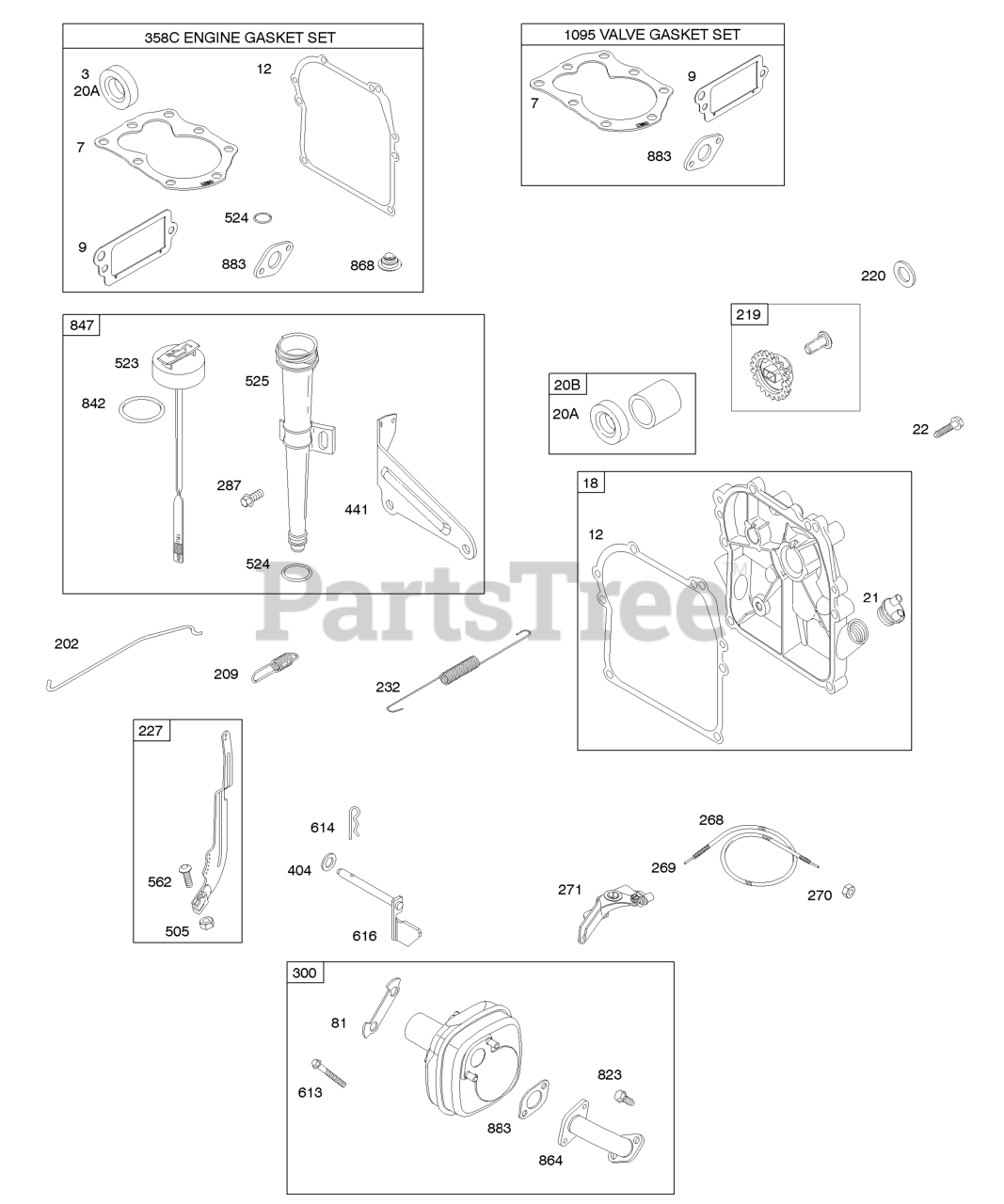

9A413-0202-E3 - Briggs & Stratton Horizontal Engine Control, Crankcase Cover/Sump, Exhaust System, Gasket Set - Engine, Gasket Set - Valve, Governor Spring, Lubrication Parts Diagram

Horizontal Engine

Control, Crankcase Cover/Sump, Exhaust System, Gasket Set - Engine, Gasket Set - Valve, Governor Spring, Lubrication Parts Diagram

  • Title

3

Briggs & Stratton 299819S

SEAL, Oil

Note: (Magneto Side)

$5.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 698717

Gasket-Cylinder Head

$5.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 695890

Gasket-Breather

$4.49

$

In Stock, Qty 13

0

12

Briggs & Stratton 270895

Gasket-Crankcase

Note: (.005" Thick)

$9.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 270896

Gasket-Crankcase

Note: (.009" Thick)

$5.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 692218

Gasket-Crankcase

Note: (.015" Thick)(Standard)

$

$

Not available

18

Briggs & Stratton 699096

Cover-Crankcase

$172.99

$

Usually ships in 2-12 days

0

20A

Briggs & Stratton 299819S

SEAL, Oil

Note: (PTO Side)

$5.49

$

In Stock, Qty 20+

0

20B

Briggs & Stratton 691356

Seal-Oil

Note: (PTO Side)

$31.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 281658S

Cap-Oil Fill

$4.49

$

In Stock, only 2 left!

0

22

Briggs & Stratton 691129

SCREW

Note: (Crankcase Cover/Sump)

$3.99

$

In Stock, Qty 8

0

22

Briggs & Stratton 691128

Screw

Note: (Crankcase Cover/Sump) (Used In Positions 1 and 6)

$3.49

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 691729

Lock-Muffler Screw

$5.99

$

In Stock, only 3 left!

0

202

Briggs & Stratton 692351

Link-Mechanical Governor

$8.49

$

In Stock, only 1 left!

0

209

Briggs & Stratton 691858

Spring-Governor

Note: (Yellow)

$7.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 496786

Gear-Governor

$32.99

$

Usually ships in 2-12 days

0

220

Briggs & Stratton 691724

Washer

Note: (Governor Gear)

$5.49

$

In Stock, only 3 left!

0

227

Briggs & Stratton 691412

Lever-Governor Control

$14.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 691846

Spring-Governor Link

$11.99

$

In Stock, only 2 left!

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

287

Briggs & Stratton 695733

Screw

Note: (Dipstick Tube)

$3.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 699565

Muffler

$53.99

$

Usually ships in 2-12 days

0

358C

Briggs & Stratton 794209

Gasket Set-Engine
(Superseded to 590777)

$

$

Not available

404

Briggs & Stratton 691691

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, Qty 5

0

441

Briggs & Stratton 690484

Bracket-Oil Fill

$8.99

$

In Stock, only 1 left!

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 11

0

523

Briggs & Stratton 791205

Dipstick

$11.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 691876

Seal-O Ring

$5.49

$

In Stock, only 1 left!

0

525

Briggs & Stratton 699090

Tube-Dipstick

$12.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 92613

Bolt

Note: (Governor Control Lever)

$

$

Not available

613

Briggs & Stratton 691413

Screw

Note: (Muffler)

$5.99

$

In Stock, only 2 left!

0

614

Briggs & Stratton 691620

PIN, Cotter

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 692016

Crank-Governor

$

$

Not available

823

Briggs & Stratton 699554

Screw

Note: (Muffler Adapter)

$3.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Tube)

$5.49

$

In Stock, Qty 14

0

847

Briggs & Stratton 791204

Dipstick/Tube Assembly

$27.99

$

Usually ships in 2-12 days

0

864

Briggs & Stratton 699568

Adapter-Muffler

$19.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 697338

Seal-Valve

$13.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 691880

Gasket-Exhaust

$5.49

$

In Stock, Qty 5

0

1095

Briggs & Stratton 498526

Gasket Set-Valve

$18.99

$

Usually ships in 2-12 days

0
