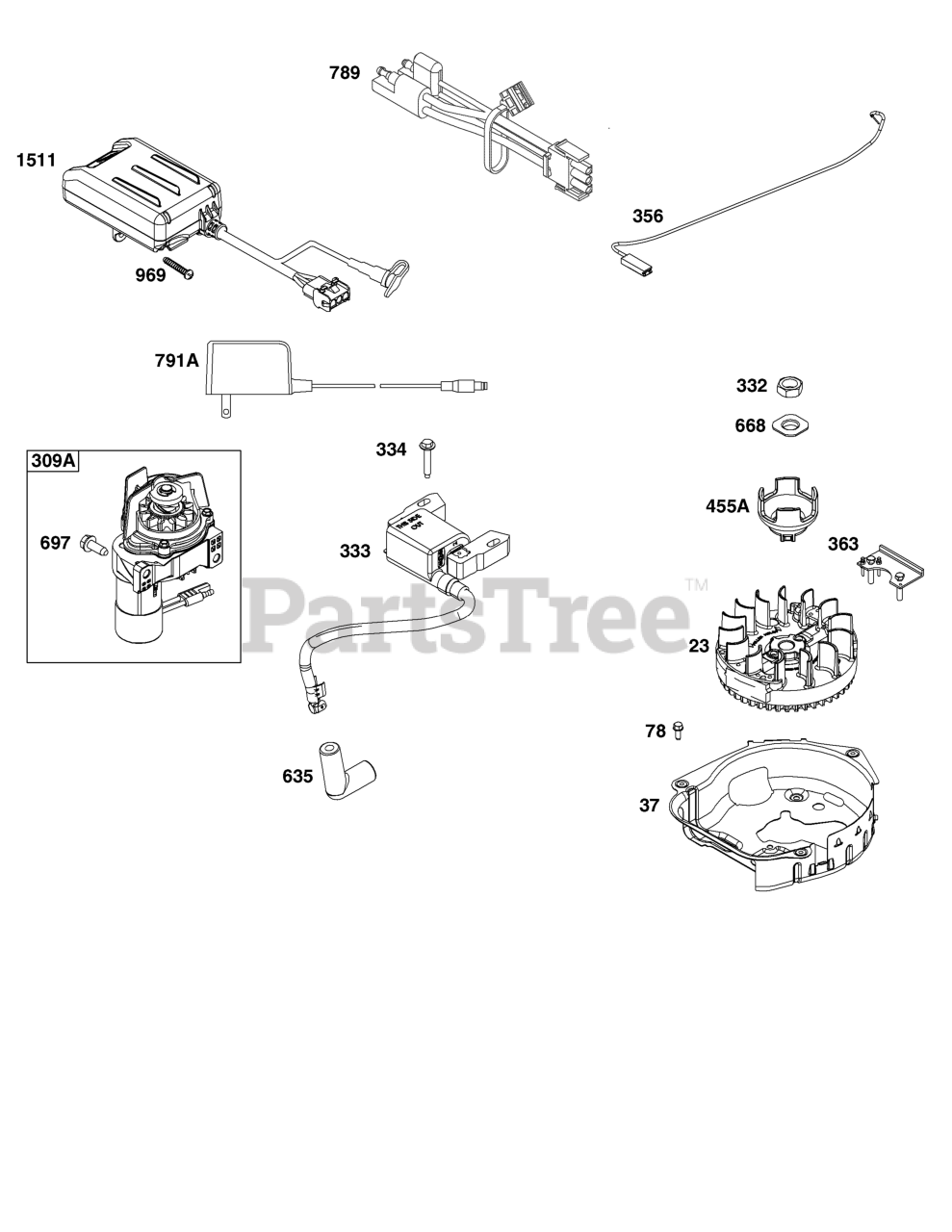

9P70B-0267-H5 - Briggs & Stratton Vertical Engine Flywheel, Ignition, and Starter Group Parts Diagram

Vertical Engine

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 596753

FLYWHEEL

$120.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 597185

GUARD, Flywheel

$32.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 793480

SCREW

Note: (Flywheel Guard)

$4.49

$

In Stock, Qty 11

0

309A

Briggs & Stratton 84002163

MOTOR, Starter
(Superseded to 84004207)

$156.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 690662

NUT

Note: (Flywheel)

$6.49

$

In Stock, only 4 left!

0

333

Briggs & Stratton 593872

ARMATURE, Magneto
(Superseded to 84005272)

$32.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 692390

WIRE, Stop

$

$

Not available

363

Briggs & Stratton 19619

PULLER, Flywheel

$127.99

$

Usually ships in 2-12 days

0

455A

Briggs & Stratton 593960

CUP, Flywheel

$11.99

$

In Stock, Qty 9

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.99

$

In Stock, Qty 12

0

668

Briggs & Stratton 590546

SPACER

$3.99

$

In Stock, Qty 11

0

697

Briggs & Stratton 691127

SCREW

Note: (Starter Motor) (Drive Cap)

$4.49

$

In Stock, only 2 left!

0

789

Briggs & Stratton 84004578

HARNESS, Wiring

$18.99

$

Usually ships in 2-12 days

0

791A

Briggs & Stratton 84002790

CHARGER, 120VAC, 13VDC Output, .5A, 2.5mm Round Plug

Note: (InStart)(North America)

$42.99

$

Usually ships in 2-12 days

0

791A

Briggs & Stratton 84002791

UK Charger

Note: (InStart)(United Kingdom)

$53.99

$

Usually ships in 2-12 days

0

791A

Briggs & Stratton 84002792

EU Charger

Note: (InStart)(Europe)

$32.99

$

Usually ships in 2-12 days

0

791A

Briggs & Stratton 84002793

AU Charger

Note: (InStart)(Australia)

$30.99

$

Usually ships in 2-12 days

0

969

Briggs & Stratton 594115

SCREW

Note: (Blower Housing Cover)

$4.49

$

In Stock, Qty 6

0

1511

Briggs & Stratton 84002154

BATTERY
(Superseded to 84004958)

Note: (InStart)(North America/United Kingdom/Europe/Australia)

$189.99

$

Usually ships in 2-12 days

0
