9P902-0010-H5 - Briggs & Stratton Vertical Engine Carburetor Group Parts Diagram

Vertical Engine

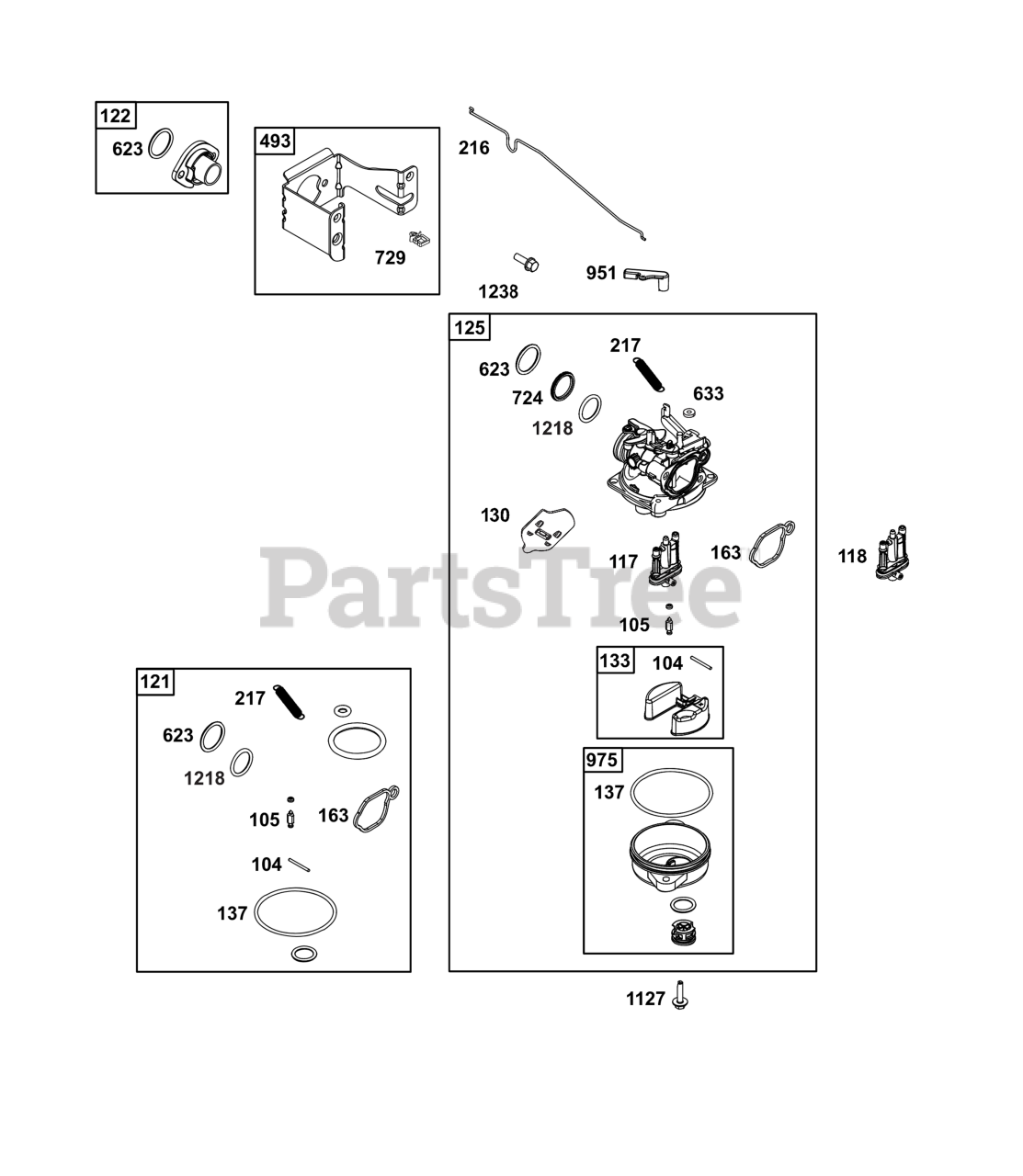

Carburetor Group Parts Diagram

  • Title

104

Briggs & Stratton 590558

PIN, Float Hinge

$4.49

$

In Stock, only 1 left!

0

105

Briggs & Stratton 594581

VALVE, Float Needle

$7.49

$

In Stock, Qty 10

0

117

Briggs & Stratton 84001966

JET, Main

Note: (Standard)

$15.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 84001968

JET, Main

Note: (High Altitude)

$13.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 594636

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$35.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 590549

SPACER, Carburetor

$10.99

$

In Stock, only 3 left!

0

125

Briggs & Stratton 84001041

CARBURETOR

$60.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 597444

VALVE, Choke

$5.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 591120

FLOAT, Carburetor

$13.99

$

In Stock, only 1 left!

0

137

Briggs & Stratton 594633

GASKET, Float Bowl

$15.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 799580

GASKET, Air Cleaner

Note: (Air Cleaner)

$5.99

$

In Stock, Qty 10

0

216

LINK, Choke

Note: (Part information located in Controls Group.)

$

$

Not available

217

Briggs & Stratton 590740

SPRING, Choke Return

$8.49

$

In Stock, Qty 6

0

493

Briggs & Stratton 593330

BRACKET, Mounting

$9.99

$

In Stock, only 1 left!

0

623

Briggs & Stratton 799581

SEAL, O-Ring

Note: (Carburetor Spacer)

$4.99

$

In Stock, Qty 11

0

633

Briggs & Stratton 84002188

SEAL, CHOKE/THROTTLE SHAFT

$3.49

$

Usually ships in 2-12 days

0

724

Briggs & Stratton 697478

RETAINER, Seal

$4.99

$

In Stock, Qty 8

0

729

Briggs & Stratton 594752

CLIP, Wire

$

$

Not available

951

Briggs & Stratton 591104

LEVER, Choke

$10.99

$

In Stock, only 3 left!

0

975

Briggs & Stratton 594632

BOWL, Float

$17.99

$

In Stock, only 1 left!

0

1127

Briggs & Stratton 590554

SCREW

Note: (Float Bowl to Carburetor Body)

$3.99

$

In Stock, only 2 left!

0

1218

Briggs & Stratton 270344S

SEAL, O-Ring

Note: (Carburetor)

$3.49

$

In Stock, Qty 20+

0

1238

Briggs & Stratton 590562

SCREW

Note: (Carburetor Spacer)

$3.49

$

In Stock, only 1 left!

0
