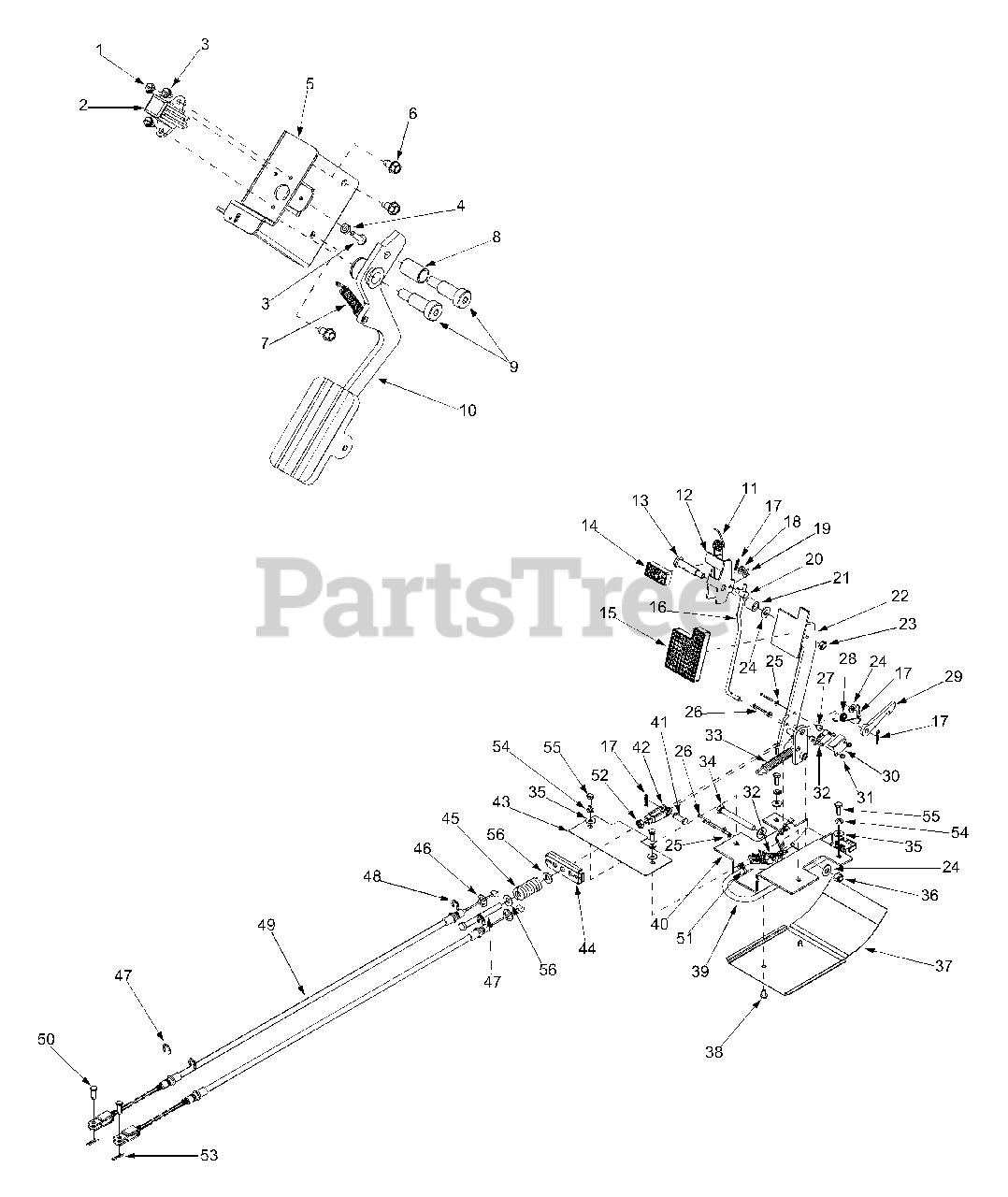

A 100 C (37A-100C129) - Cub Cadet Work Fun Runner Controls Parts Diagram

Work Fun Runner

Controls Parts Diagram

  • Title

1

Cub Cadet 710-1513

Slotted Hex Screw #10-32 x .75

$

$

Not available

2

Cub Cadet 725-2002

Throttle Sensor

$

$

Not available

3

Cub Cadet 710-1829

Slotted Hex Screw #10-32 x .31

$

$

Not available

4

Cub Cadet 712-0349

Hex Nut #10-32

$4.49

$

In Stock, Qty 5

0

5

Cub Cadet 607-0018

Mounting Pedal Bracket Assembly

$

$

Not available

6

Cub Cadet 710-0599

Hex Washer Screw

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 732-0264

Extension Spring .38 OD x 2.5 Lg
(Superseded to 932-0264)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 741-0749

Sleeve Bearing .50 ID x .625 OD

$

$

Not available

9

Cub Cadet 738-1160

Shoulder Screw
(Superseded to 738-1196)

$

$

Not available

10

Cub Cadet 607-0014

Accelerator Pedal Arm Assembly

$

$

Not available

11

Cub Cadet 732-1160

Torsion Spring

$

$

Not available

12

Cub Cadet 607-0006

Park Pedal Assembly

$

$

Not available

13

Cub Cadet 738-0509

Shoulder Screw .500 x 1.825

$

$

Not available

14

Cub Cadet 735-0692

Parking Brake Pad

$

$

Not available

15

Cub Cadet 735-0691

Brake Pad

$

$

Not available

16

Cub Cadet 711-1598

Park Brake Adjuster Rod

$

$

Not available

17

Cub Cadet 714-0104

Cotter Pin

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0264

Flat Washer .330 ID x .630 OD

$6.49

$

In Stock, only 1 left!

0

19

Cub Cadet 736-0271

Spring Washer .317 ID x.625 OD
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 13

0

20

Cub Cadet 711-0736

Adjustment Ferrule 1/4-20 x 1.0

$13.99

$

In Stock, only 2 left!

0

21

Cub Cadet 750-3058

Spacer .510 x .75 x .780 Lg

$

$

Not available

22

Cub Cadet 607-0011

Brake Arm Assembly

$

$

Not available

23

Cub Cadet 712-0181

Lock Jam Nut 3/8-16

$3.99

$

In Stock, Qty 5

0

24

Cub Cadet 736-0300

Flat Washer .406 ID x .875 OD

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0749

Washer .156 ID x .375 OD

$

$

Not available

26

Cub Cadet 710-1860

Head Screw #4-40 x 1.125

$

$

Not available

27

Cub Cadet 736-0744

Spacer

$

$

Not available

28

Cub Cadet 732-1161

Torsion Spring

$

$

Not available

29

Cub Cadet 707-0144

Parking Brake Lock Plate

$

$

Not available

30

Cub Cadet 707-0188

Switch Cover Plate

$

$

Not available

31

Cub Cadet 712-0715

Nut #4-40

$

$

Not available

32

Cub Cadet 725-2051

Switch

$

$

Not available

33

Cub Cadet 732-0716

Extension Spring .59 OD x 4.01 Lg
(Superseded to 732-0716D)

$12.99

$

In Stock, Qty 20+

0

34

Cub Cadet 710-3121

Hex Cap Screw 3/8-16 x 3.25

$

$

Not available

35

Cub Cadet 736-3090

Flat Washer .260 ID x .720 OD x .060

$6.49

$

In Stock, only 2 left!

0

36

Cub Cadet 712-0130

Hex Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 707-0186

Brake Plate Shield

$

$

Not available

38

Cub Cadet 710-0599

Hex Washer Screw 1/4-20 x .500

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 629-1088

Brake Harness Assembly

$

$

Not available

40

Cub Cadet 707-0132

Brake Mounting Plate

$

$

Not available

41

Cub Cadet 711-0173

Clevis Pin .375 Dia x .969
(Superseded to 711-04722)

$6.49

$

In Stock, only 3 left!

0

42

Cub Cadet 719-0574

Adjustment Clevis

$

$

Not available

43

Cub Cadet 707-0187A

Top Bracket Cover Plate

$

$

Not available

44

Cub Cadet 707-0174

Equalizer Brake Plate

$

$

Not available

45

Cub Cadet 732-1023

Compression Spring 1.0 OD x 2.0 Lg

$

$

Not available

46

Cub Cadet 736-0162

Flat Washer .641 ID x 1.0 OD

$3.99

$

In Stock, Qty 20+

0

47

Cub Cadet 710-0902

Hex Cap Screw 3/8-24 x 3.75

$7.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 716-0104

E Ring .500 Dia
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 18

0

49

Cub Cadet 746-1128

Brake Cable

$

$

Not available

50

Cub Cadet 711-1601

Clevis Pin

$

$

Not available

51

Cub Cadet 726-0470

Cable Tie

$4.49

$

Usually ships in 3-6 days

0

52

Cub Cadet 712-0711

Jam Nut 3/8-24

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 714-0127

Cotter Pin

$

$

Not available

54

Cub Cadet 736-0329

Lock Washer 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

55

Cub Cadet 710-0206

Hex Cap Screw 1/4-20 x .875

$4.49

$

Usually ships in 3-6 days

0

56

Cub Cadet 736-3052

Flat Washer .406 ID x 1.0 OD

$4.49

$

In Stock, Qty 20+

0
