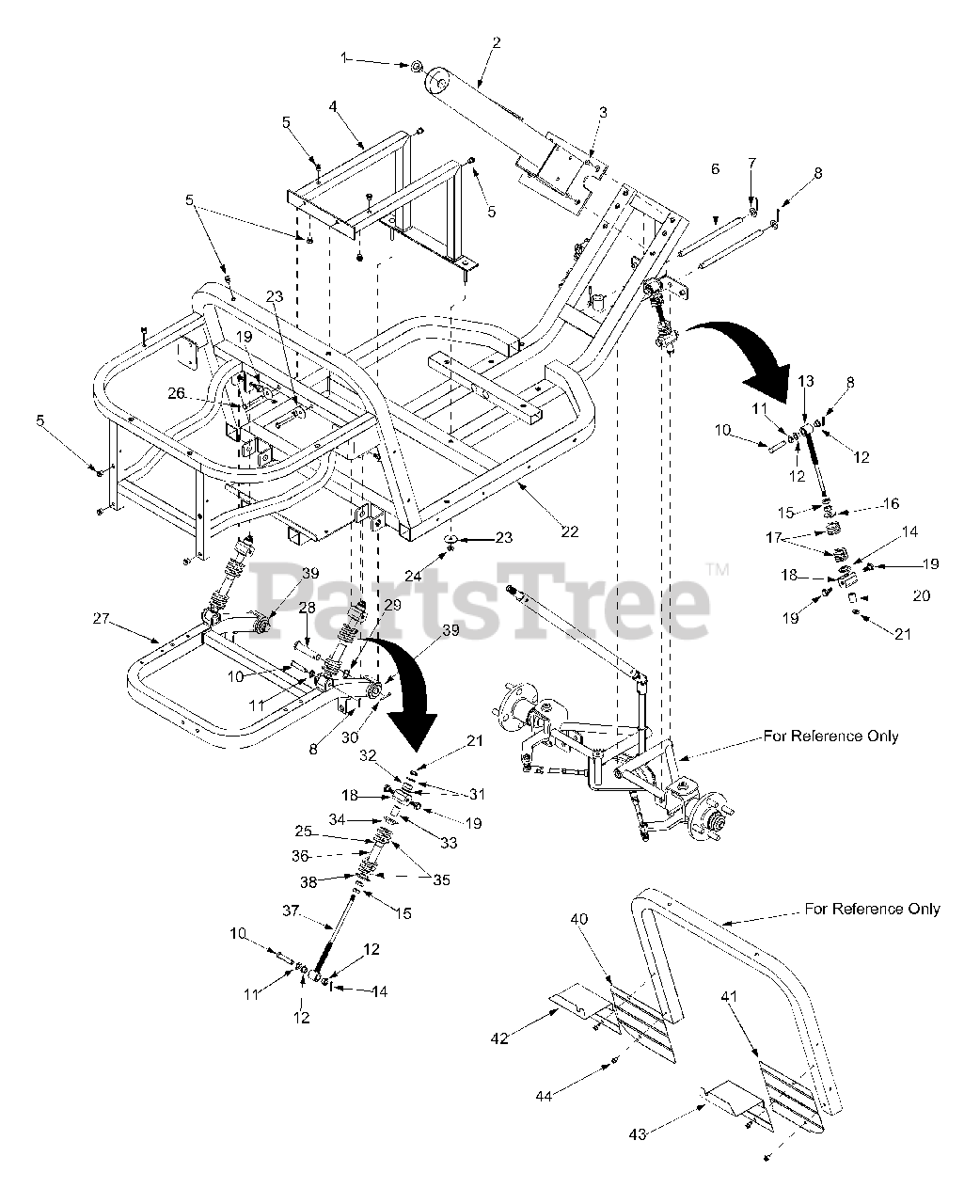

A 100 C (37A-100C129) - Cub Cadet Work Fun Runner Frame Parts Diagram

Work Fun Runner

Frame Parts Diagram

  • Title

1

Cub Cadet 748-0176

Flange Bearing .63 ID x .62 Lg

$9.49

$

In Stock, only 1 left!

0

2

Cub Cadet 649-0125

Steering Column Assembly

$

$

Not available

3

Cub Cadet 710-1815

Cap Screw 1/4-20 x .750

$

$

Not available

4

Cub Cadet 649-0129

Seat Plate Mounting Assembly

$

$

Not available

5

Cub Cadet 750-1261

Inset Screw 1/4-20

$

$

Not available

6

Cub Cadet 711-1518

Pivot Shift Arm

$

$

Not available

7

Cub Cadet 736-0160

Flat Washer .53 ID x .93 OD

$3.99

$

In Stock, only 2 left!

0

8

Cub Cadet 714-0115

Cotter Pin

$3.99

$

In Stock, only 1 left!

0

10

Cub Cadet 711-1597

Clevis Pin

$

$

Not available

11

Cub Cadet 736-0286

Bowed Washer
(Superseded to 936-0286)

$6.49

$

In Stock, only 2 left!

0

12

Cub Cadet 741-0739

Flange Bearing .376 ID x .502 OD

$

$

Not available

13

Cub Cadet 611-0142

Bearing Rod Assembly

$

$

Not available

14

Cub Cadet 750-1270

Shoulder Spacer .316 ID x .290 OD

$

$

Not available

15

Cub Cadet 712-0240

Jam Nut 7/16-20
(Superseded to 912-0240)

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 750-1269

Shoulder Spacer .44 ID x .290 Lg

$

$

Not available

17

Cub Cadet 732-1009

Compression Spring

$

$

Not available

18

Cub Cadet 623-0025

Pivot Guide Assembly

$

$

Not available

19

Cub Cadet 738-1149

Shoulder Screw .437 ID x .265 Lg

$

$

Not available

20

Cub Cadet 750-0808

Spacer .341 ID x .560 OD

$

$

Not available

21

Cub Cadet 712-3004A

Flange Lock Nut 5/16-18

$3.49

$

In Stock, Qty 20+

0

22

Cub Cadet 649-0044A

Main Frame Assembly

$

$

Not available

23

Cub Cadet 736-0211

Flat Washer .285 ID x 1.25 OD

$6.49

$

In Stock, Qty 8

0

24

Cub Cadet 712-3027

Hex Flange Nut 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 735-0686

Rubber Bumper

$

$

Not available

26

Cub Cadet 710-0641

Hex Cap Screw 1/4-20 x 2.25

$3.99

$

In Stock, only 4 left!

0

27

Cub Cadet 649-0043

Trailing Arm Frame Assembly

$

$

Not available

28

Cub Cadet 711-1537

Clevis Pin

$4.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 736-0174

Spring Washer .625 ID x .885 OD

$6.49

$

In Stock, only 2 left!

0

30

Cub Cadet 714-0121

Cotter Pin
(Superseded to 914-0121)

$

$

Not available

31

Cub Cadet 736-0159

Washer .349 ID x .879 OD

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 735-0126

Rubber Washer
(Superseded to 735-0126A)

$

$

Not available

33

Cub Cadet 750-0589

Spacer .325 ID x .625 OD
(Superseded to 950-0589)

$5.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 750-1271

Shoulder Spacer .316 ID x .350 Lg

$

$

Not available

35

Cub Cadet 732-1010

Compression Spring

$

$

Not available

36

Cub Cadet 750-1292

Spacer .438 ID x .750 OD

$

$

Not available

37

Cub Cadet 611-0143

Bearing Rod Assembly

$

$

Not available

38

Cub Cadet 750-1272

Shoulder Spacer .44 ID x .350 Lg

$

$

Not available

39

Cub Cadet 741-1124

Flg Bearing .627 ID x .816 OD x .75

$

$

Not available

40

Cub Cadet 707-0184

Upper LH Mudflap

Note: (If Equipped)

$

$

Not available

41

Cub Cadet 707-0185

Upper RH Mudflap

Note: (If Equipped)

$

$

Not available

42

Cub Cadet 707-0182

Lower LH Mudflap

Note: (If Equipped)

$

$

Not available

43

Cub Cadet 707-0183

Lower RH Mudflap

Note: (If Equipped)

$

$

Not available

44

Cub Cadet 710-0599

Hex Washer Screw 1/4-20 x .500

$3.99

$

In Stock, Qty 20+

0
