A 21507 - Snapper 21" Walk-Behind Mower, 5hp Cutting Deck, Blade, Interlock Parts Diagram

21" Walk-Behind Mower, 5hp

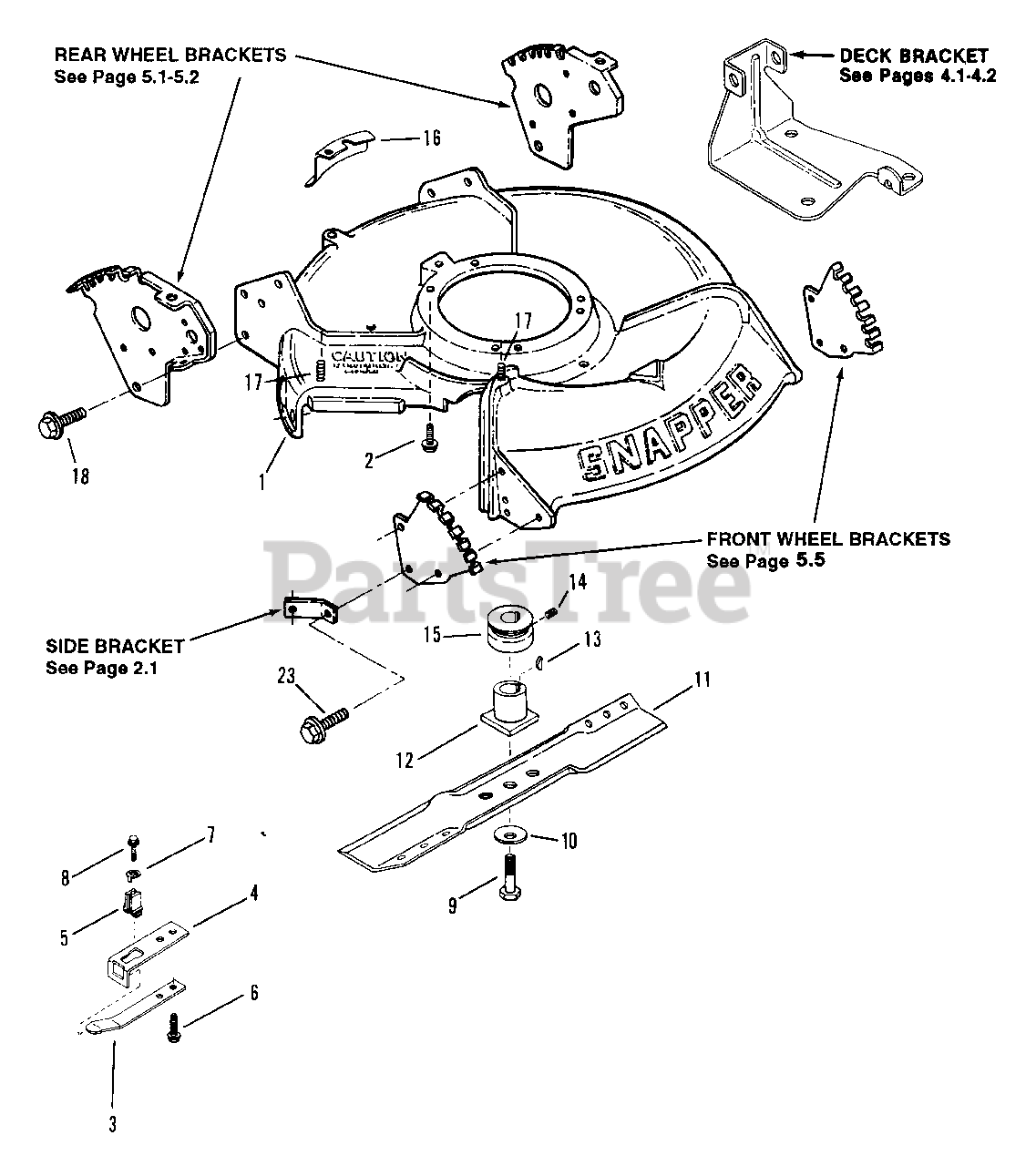

Cutting Deck, Blade, Interlock Parts Diagram

  • Title

1

Snapper 7022326

DECK, Mower

$

$

Currently unavailable

2

Snapper 7090324

SCREW, 3/8-16 x 1" Self-Tapping (Engine Mounting)
(Superseded to 704000)

$4.99

$

In Stock, only 4 left!

0

3

Snapper 7012049

SPRING, Wheel Bracket Type Interlock

$

$

Currently unavailable

4

Snapper 7031955

BRACKET, Wheel Bracket Type Interlock

$

$

Not available

5

Snapper 7012048

INSULATOR, Interlock
(Superseded to 7012048YP)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 7091122

SCREW, 1/4-20 x 1/2" Self-Tapping
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7090385

WASHER, #8 Tab Internal Tooth Lock

$

$

Not available

8

Snapper 7090379

SCREW, #8-18 x 3/4" Hex Head Machine
(Superseded to 7090379YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap (Gr.5)
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, Qty 20+

0

11

Snapper 7019795

BLADE, Cutter
(Superseded to 7019795BZYP)

$28.99

$

In Stock, only 4 left!

0

12

Snapper 7015626

HUB, Blade Drive (25mm Dia. I.D.)
(Superseded to 7015626YP)

$15.99

$

Usually ships in 2-12 days

0

13

Snapper 7015894

KEY, Woodruff
(Superseded to 7015894SM)

Note: (Briggs)

$3.49

$

In Stock, Qty 9

0

14

Snapper 7090201

SCREW, 5/16-18 x 5/16" Hex Socket Set
(Superseded to 7090201SM)

$

$

Not available

15

Snapper 7015780

PULLEY, Engine
(Superseded to 7015780YP)

Note: (Briggs)

$30.99

$

Usually ships in 2-12 days

0

16

Snapper 7031968

SHIELD, Belt Opening Cover

Note: (Push Models Only)

$

$

Not available

17

Snapper 7011081

STUD, 5/16-18 x 1-1/2 Self-Tapping

$

$

Not available

18

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0
