A109 (39A-109-100) - Cub Cadet Rubber Scraper 72" Blade att Snow Blade Parts Diagram

Rubber Scraper 72" Blade

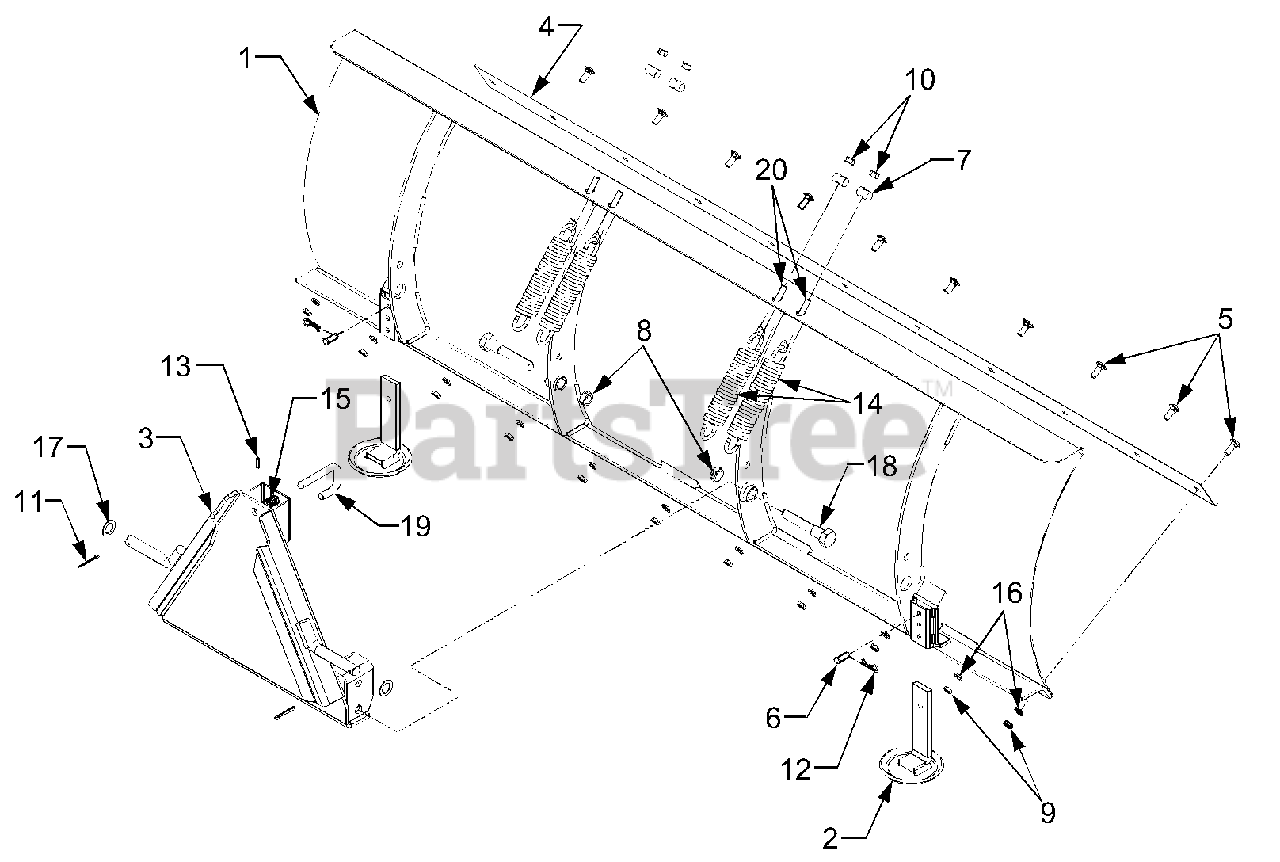

Snow Blade Parts Diagram

  • Title

1

Cub Cadet 603-04053

Blade Assembly 72 inch
(Superseded to 903-04053)

$

$

Not available

2

Cub Cadet 603-0810

Shoe, Skid
(Superseded to 603-0810A-0637)

Variations

603-0810-0637

Cub Cadet 603-0810-0637

Snow Skid Shoe, Black - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

$84.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-0812

Frame, Blade Mounting

$

$

Not available

4

Cub Cadet 703-05130

Blade, Scraper

$

$

Not available

5

Cub Cadet 710-3168

Screw, Carriage, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 711-0173

Pin, Clevis,.375 x.969
(Superseded to 711-04722)

$7.49

$

In Stock, only 3 left!

0

7

Cub Cadet 711-3247

Spring Roller

$22.99

$

In Stock, only 2 left!

0

8

Cub Cadet 712-0261

Nut, Jam Lock, 5/8-11
(Superseded to 912-0261)

$

$

Not available

9

Cub Cadet 712-3008

Nut, Jam, 3/8-16 GR5

$4.99

$

In Stock, Qty 12

0

10

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR8

$4.49

$

In Stock, Qty 11

0

11

Cub Cadet 714-0142

Pin, Cotter, 3/16 x 1.5

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 714-0145

Pin, Internal Cotter, .092 x 1.64

$5.49

$

In Stock, Qty 20+

0

13

Cub Cadet 715-3003

Pin, Spirol 3/16 x 3/4

$7.49

$

In Stock, Qty 5

0

14

Cub Cadet 732-1031

Spring, Extension, 1.5 x 8.0

$

$

Not available

15

Cub Cadet 732-3091

Spring, Compression, .57 x 2.09

$

$

Not available

16

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0287

Washer, Flat, .793 x 1.24 x .06 Hdn

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 738-3175

Screw, Shoulder

$

$

Not available

19

Cub Cadet 747-3427

Pin, Front Hitch

$

$

Not available

20

Cub Cadet 747-3463

Rod, Spring Adjustment

$

$

Not available
