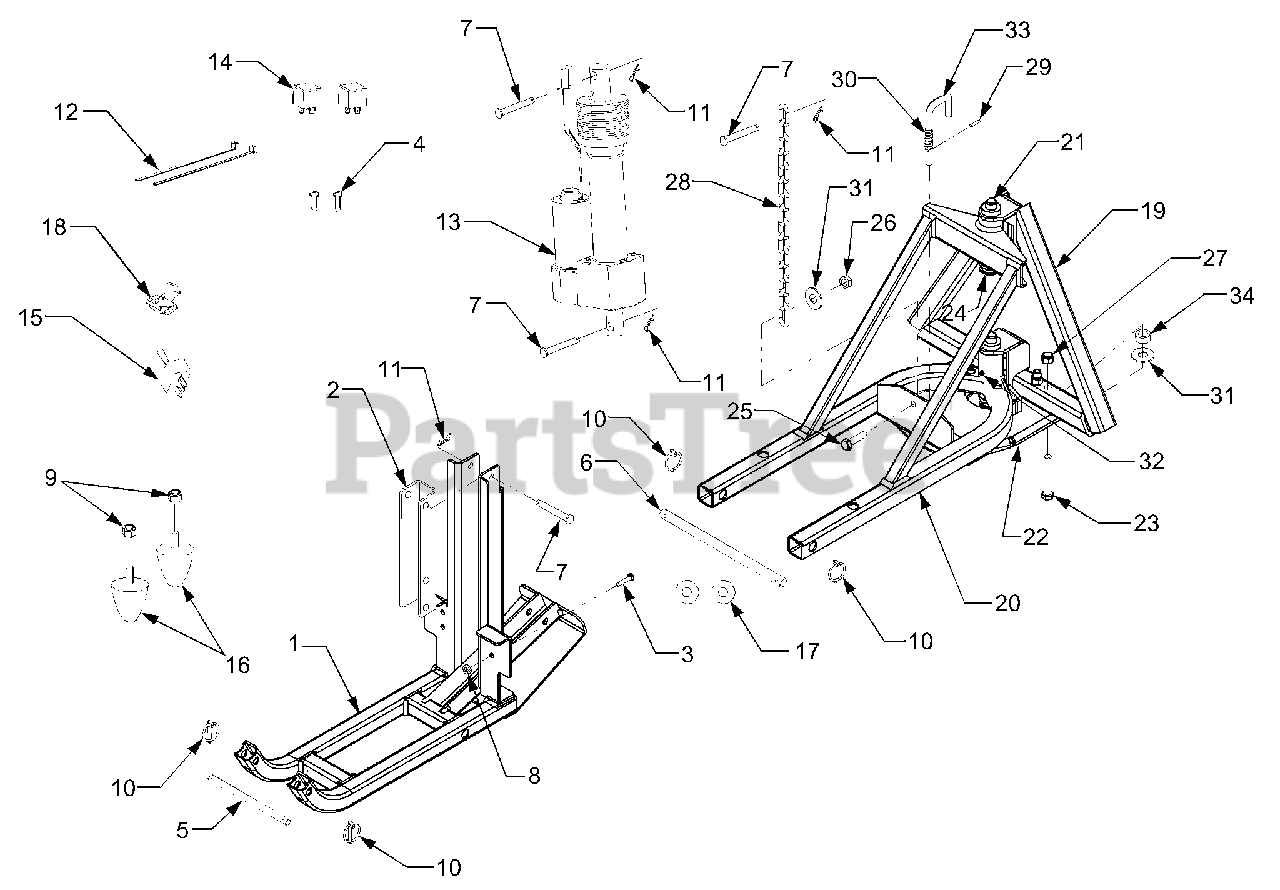

A115 (39A-115-100) - Cub Cadet Snow Blade Mounting Bracket att Frt. Mounting Hitch Parts Diagram

Snow Blade Mounting Bracket

Frt. Mounting Hitch Parts Diagram

  • Title

1

Cub Cadet 603-04061

Mounting Frame

$

$

Not available

2

Cub Cadet 707-04116

Lift Bracket

$

$

Not available

3

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16 x 1.0 GR5

$3.46

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3009

Self Tapping Screw

$5.76

$

Usually ships in 5-10 days

0

5

Cub Cadet 711-04096

Mounting Rod, .625 x 8.625

$71.42

$

Usually ships in 5-10 days

0

6

Cub Cadet 711-04097

Rod, .75 x 12.75

$

$

Not available

7

Cub Cadet 711-04006

Clevis Pin, .5 Dia x 3.0

$33.95

$

Usually ships in 5-10 days

0

8

Cub Cadet 712-3005

Hex Flange Lock Nut, 3/8-16
(Superseded to 912-3005)

$5.52

$

In Stock, Qty 7

0

9

Cub Cadet 712-04006

Hex Nylon Lock Nut, M10 x 1.25

$6.15

$

Usually ships in 5-10 days

0

10

Cub Cadet 714-0143

Klik Pin
(Superseded to 714-0143A)

$5.23

$

In Stock, Qty 20+

0

11

Cub Cadet 714-04003

Internal Cotter Pin

$6.53

$

Usually ships in 5-10 days

0

12

Cub Cadet 725-0157

Cable Tie

$3.15

$

In Stock, Qty 14

0

13

Cub Cadet 725-04020

Electric Lift Cylinder
(Superseded to 925-04077)

$932.76

$

Usually ships in 5-10 days

0

14

Cub Cadet 725-1718

Relay, 12V
(Superseded to 925-1718)

$59.45

$

In Stock, only 1 left!

0

15

Cub Cadet 725-1053

Toggle Switch
(Superseded to 925-1053)

$85.52

$

Usually ships in 5-10 days

0

16

Cub Cadet 735-04024

Rubber Bumper

$

$

Not available

17

Cub Cadet 736-0316

Flat Washer
(Superseded to 936-0316)

$3.67

$

In Stock, Qty 20+

0

18

Cub Cadet 1721038

Splice Connector

$

$

Not available

19

Cub Cadet 603-04055

Hitch 'A' Frame

$

$

Not available

20

Cub Cadet 603-04057

Hitch Frame

$

$

Not available

21

Cub Cadet 603-0806

Front Hitch Pin

$

$

Not available

22

Cub Cadet 607-04030

Angle Index Plate

Variations

Cub Cadet 607-04030-0637

PLATE-ANGLE INDEX - POWDER BLACK (0637)

$

$

Not available

$

$

23

Cub Cadet 710-0515

Hex Cap Screw, 1/2-20 x 3.5 GR5

$9.34

$

Usually ships in 5-10 days

0

24

Cub Cadet 710-1260A

Hex Wash. Hd. Tapp Screw, 5/16-18 x .75

$3.05

$

In Stock, Qty 20+

0

25

Cub Cadet 710-3126

Hex Cap Screw, 1/2-13 x 1.0 GR5

$5.53

$

Usually ships in 5-10 days

0

26

Cub Cadet 712-3048

Hex Jam Nut, 1/2-13
(Superseded to 912-3048)

$3.76

$

In Stock, Qty 20+

0

27

Cub Cadet 712-3058

Hex Nylon Lock Nut, 1/2-20
(Superseded to 912-3058)

$4.53

$

In Stock, Qty 20+

0

28

Cub Cadet 713-04004

Chain

$

$

Not available

29

Cub Cadet 715-3003

Spirol Pin

$5.48

$

In Stock, Qty 9

0

30

Cub Cadet 732-3127

Compression Spring, .66 OD x 1.8
(Superseded to 932-3127)

$3.52

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0326

Flat Washer, .51 x 1.0 x .125
(Superseded to 936-0326)

$

$

Not available

32

Cub Cadet 737-3000

Lube Fitting, 3/16 Drive
(Superseded to 937-3000)

$3.71

$

In Stock, Qty 20+

0

33

Cub Cadet 747-3188

Support Pin

$28.07

$

In Stock, Qty 6

0

34

Cub Cadet 750-0547

Spacer, .628 x .875 x .5

$4.45

$

In Stock, only 4 left!

0

Cub Cadet 725-04051

Wire Harness

Note: Not Shown

$

$

Not available
