A116 (39A-116-100) - Cub Cadet H.D. Alternator Heavy Duty Alternator Parts Diagram

H.D. Alternator

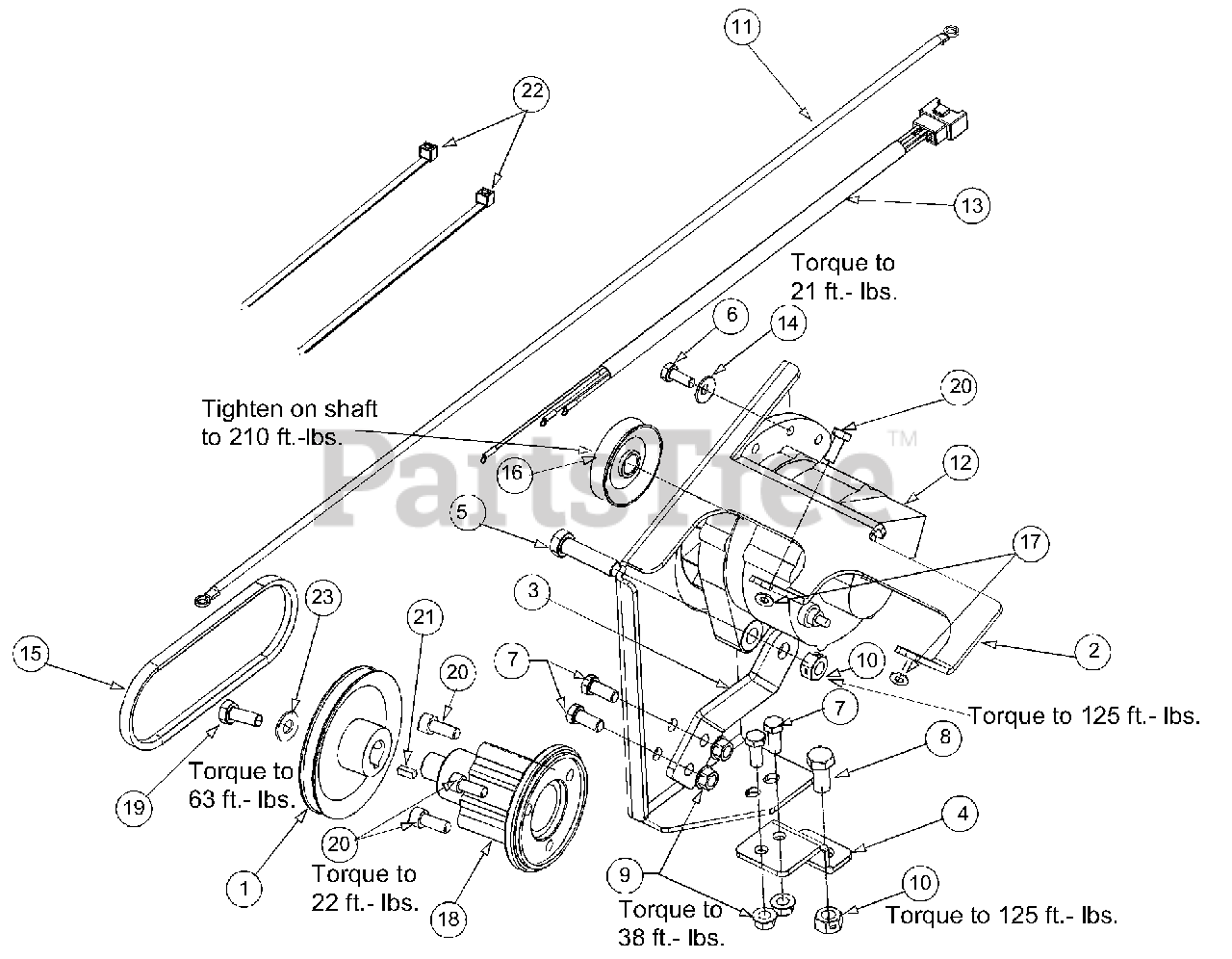

Heavy Duty Alternator Parts Diagram

  • Title

1

Cub Cadet 756-04110

Alternator Pulley Assembly

$49.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 707-04179

Front Mount Bracket

Variations

Cub Cadet 707-04179-0637

BRACKET-ALTNR MTG (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 707-04189

Rear Support Bracket

Variations

Cub Cadet 707-04189-0637

BRACKET-ALTNR SUPPORT(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 707-04220A

Support Bracket
(Superseded to 707-04220A-0637)

Note: Use on 4 x 2 Only

Variations

Cub Cadet 707-04220A-0637

ALTERNATOR SUPPORT BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 710-0489

Screw, 1/2-13 x 2.00 GR5

$7.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0376

Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 16

0

7

Cub Cadet 710-3001

Hex Screw, 3/8-16 x.880, GR5

$7.49

$

In Stock, Qty 11

0

8

Cub Cadet 710-3131

Hex Screw, 1/2-13 GR8

Note: Use on 4 x 2 Only

$5.49

$

In Stock, only 1 left!

0

9

Cub Cadet 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3022

Hex Lock Nut, 1/2-13

Note: Use total of 2 on 4 x 2

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 725-04148

Alternator Output Harness

$19.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 725-04161

65 Amp Auxiliary Alternator

$926.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 725-04163

Regulator Harness

$38.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 736-0242

Bell Washer,.340 x.872 x.060

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 754-0465

V-Belt 3/8 x 35.68 LG
(Superseded to 954-04032B)

$25.99

$

In Stock, Qty 20+

0

16

Cub Cadet 756-04097

Pulley, 2.65 OD

$108.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 736-0278

Flat Washer,.330 x.687 x.030

$5.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 707-04347

Pulley Spacer
(Superseded to 707-04347-0637)

Variations

Cub Cadet 707-04347-0637

PULLEY MOUNTING HUB - POWDER BLACK (0637)

$

$

Not available

$

$

19

Cub Cadet 710-3136

Screw, M10-1.25 x 25MM

$

$

Not available

20

Cub Cadet 710-3206A

Screw, M8 x 1.25 x 25mm Lg.

$3.99

$

In Stock, Qty 13

0

21

Cub Cadet 714-3009

Square Key, 3/16 x.50

$3.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 4 left!

0

23

Cub Cadet 736-0247

Flat Washer,.406 x1.25 x.157

$9.49

$

In Stock, Qty 20+

0
