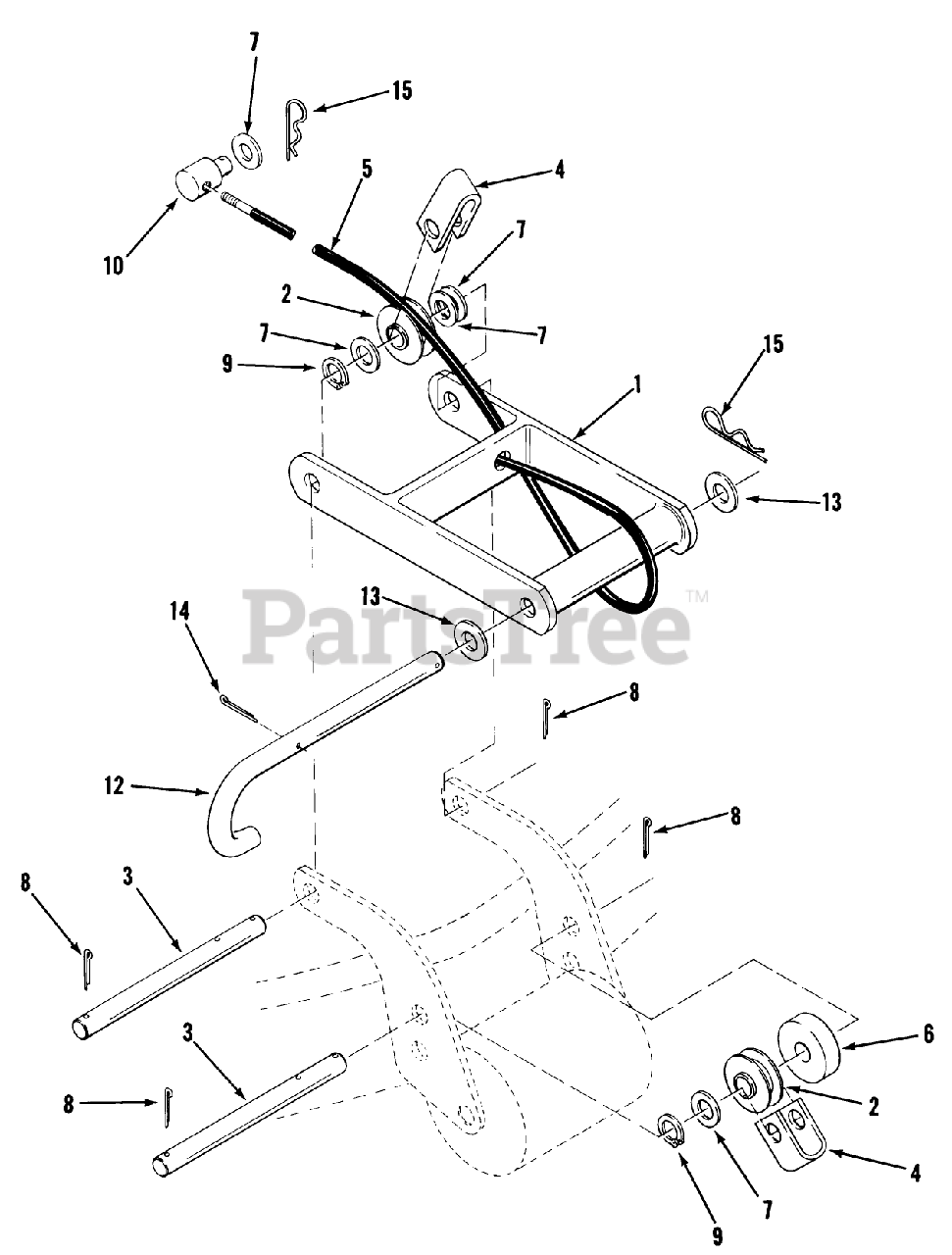

A2-164201 (LT-1642) - Toro Lawn Tractor (1982) 32 37 In/81 94 Cm Mower Front Mount Lt-832, Lt-1032, Lt-1137, Lt-1637 Parts Diagram

Lawn Tractor

32 37 In/81 94 Cm Mower Front Mount Lt-832, Lt-1032, Lt-1137, Lt-1637 Parts Diagram

  • Title

1

Toro 106487

See Supercession: 113032
(Superseded to 113032)

$

$

Not available

2

Toro 106474

DISCONTINUED

$

$

Not available

3

Toro 106475

See Supercession: 110843
(Superseded to 110843)

$

$

Not available

4

Toro 106469

STRAP-CABLE

$

$

Not available

5

Toro 108179

ASSY-CABLE

$102.99

$

Usually ships in 3-6 days

0

6

Toro 106430

SPACER

$

$

Not available

7

Toro 920009

See Supercession: 3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

8

Toro 932016

See Supercession: 3272-10
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

9

Toro 106589

GRIP RING

$

$

Not available

10

Toro 104524

TRUNNION-CLUTCH ROD

$49.99

$

Usually ships in 3-6 days

0

12

Toro 108488

See Supercession: 110845
(Superseded to 110845)

$

$

Not available

13

Toro 920011

See Supercession: 3256-26
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 16

0

14

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

15

Toro 93305

Hairpin Cotter

$

$

Currently unavailable

5

Toro 108554

DISCONTINUED

$

$

Not available
