A2400 (8968-2) - Generac 2,400 Watt Portable Generator Cradle No. 75450 Parts Diagram

2,400 Watt Portable Generator

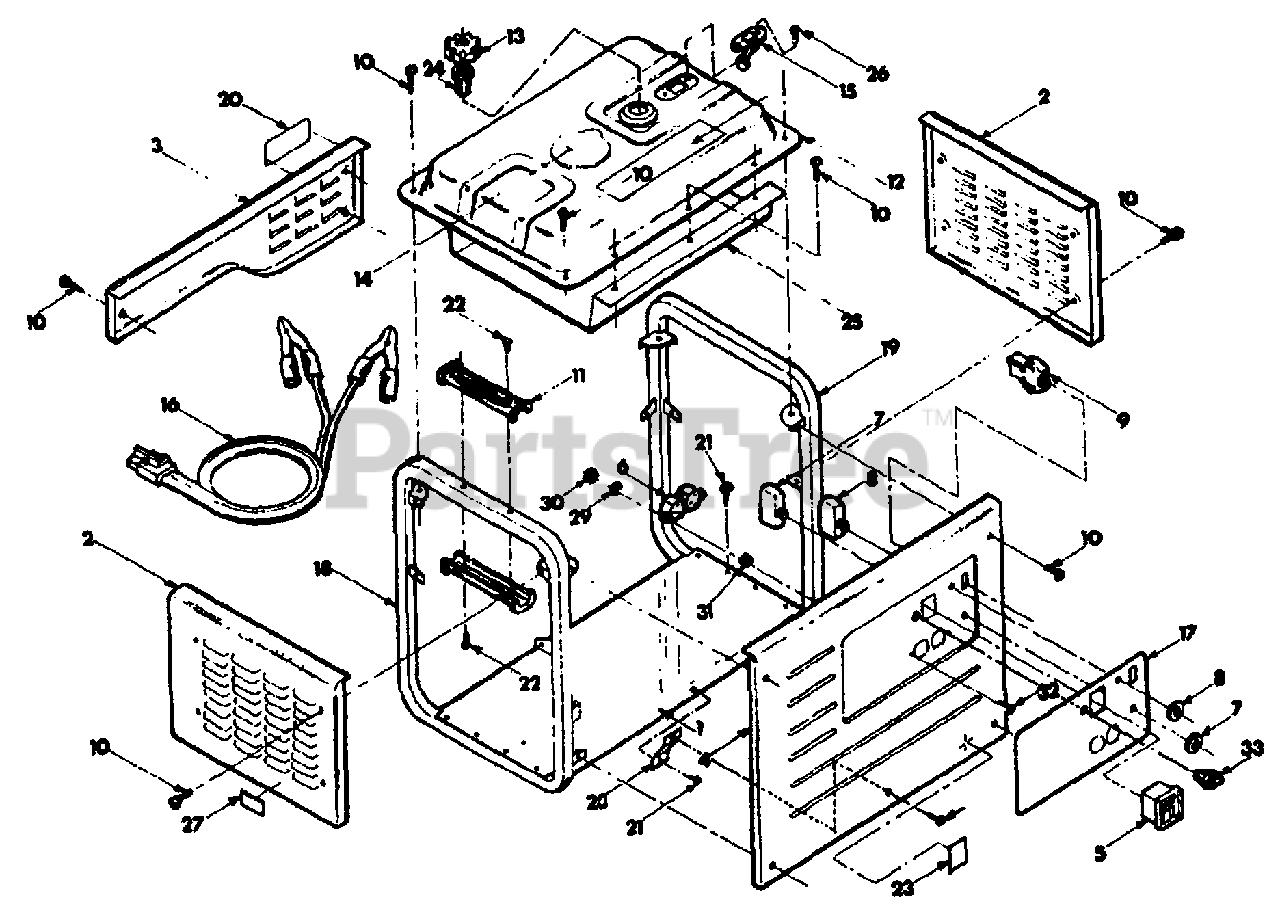

Cradle No. 75450 Parts Diagram

  • Title

1

Briggs & Stratton 73015A

BASE, Engine Cradle

$

$

Currently unavailable

2

Briggs & Stratton 73011

PANEL, End

$

$

Not available

3

Briggs & Stratton 73008

PANEL, Muffler
(Superseded to 7073008YP)

$3.49

$

In Stock, only 1 left!

0

4

Briggs & Stratton 73003

PANEL, Receptacle
(Superseded to 7073003YP)

$9.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 66817

SWITCH, Engine Run/Stop
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 68759

RECEPTACLE - 120 volts, 15 A.
(Superseded to 68759GS)

$24.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 66819

BREAKER, Circuit- 20 amp

$

$

Currently unavailable

8

Briggs & Stratton 66820

BREAKER, Circuit - 10 d-c amps

$

$

Not available

9

Briggs & Stratton 6720730

RECEPTACLE, Battery Charge

$

$

Currently unavailable

10

Briggs & Stratton 56893

SCREW - No. 10-32 x 1/2"
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

11

Briggs & Stratton 66450

COVER, Handle

$

$

Not available

12

Briggs & Stratton 69661

TANK, Fuel - 2.34 U.S. Gallons

$

$

Not available

13

Briggs & Stratton 69658

CAP, Fuel Tank

$

$

Currently unavailable

14

Briggs & Stratton 64680B

COVER, Spark Plug Access
(Superseded to 64680BGS)

$7.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 66391B

INDICATOR, Fuel Level

$

$

Not available

16

Briggs & Stratton 71394

CABLE, Battery Charge
(Superseded to 71394GS)

$42.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 73007B

DECAL, Receptacle Panel

$

$

Currently unavailable

18

Briggs & Stratton 72275

CRADLE, Engine End

$

$

Currently unavailable

19

Briggs & Stratton 72276

CRADLE, Generator End
(Superseded to 7072276YP)

$62.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 66824

DECAL - "Caution!-Hot!"

$

$

Currently unavailable

21

Briggs & Stratton 58442

SCREW - 1/4"-20 x 1/2"

$

$

Currently unavailable

22

Briggs & Stratton 66831

RIVET (Black Anodized)

$

$

Not available

23

Briggs & Stratton 29084

DECAL - Spark Arrestor

$

$

Currently unavailable

24

Briggs & Stratton 70630

FILTER, Fuel

$

$

Currently unavailable

25

Briggs & Stratton 74743

SHIELD, Fuel Tank Heat

$

$

Currently unavailable

26

Briggs & Stratton 52749

SCREW - M5-0.80 x 12mm

$

$

Currently unavailable

27

Briggs & Stratton 73054

DECAL, Fuel Shutoff

$

$

Not available

28

Briggs & Stratton 73745

BRACE, Panel
(Superseded to 7073745YP)

Note: Not Shown

$12.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 22264

LOCKWASHER - No. 8

$

$

Not available

30

Briggs & Stratton 22471

NUT, Hex - No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 23365

LOCKWASHER - No. 8 (Shakeproof)
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

32

Briggs & Stratton 36917

SCREW - No. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 71329

LAMP, Low Oil Indicator

$

$

Currently unavailable

34

Briggs & Stratton 73036

DECAL - Information

Note: Not Shown

$

$

Currently unavailable
