A4000 (8969-2) - Generac 3,600 Watt Portable Generator Generator No. 75453 Parts Diagram

3,600 Watt Portable Generator

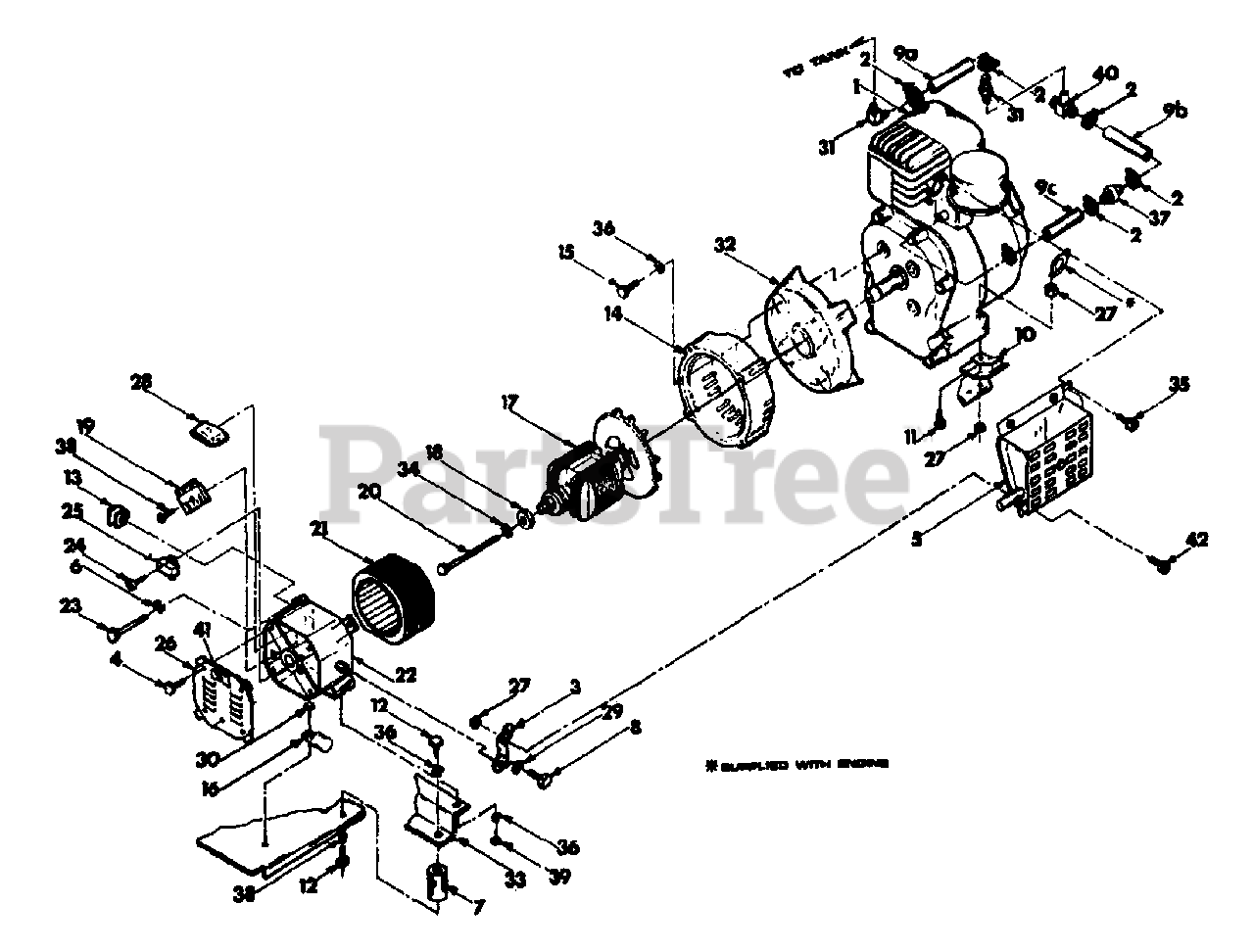

Generator No. 75453 Parts Diagram

  • Title

1

Briggs & Stratton 71392

ENGINE-8 HP Briggs & Stratton

$

$

Currently unavailable

2

Briggs & Stratton 48031C

CLAMP, Fuel Line

$

$

Not available

3

Briggs & Stratton 75456

BRACKET, Exhaust Muffler Support

$

$

Currently unavailable

4

Briggs & Stratton 74908

SCREW (Taptite)-M5-0.80 x 8mm
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 72279

MUFFLER, Exhaust-Spark Arrestor Type

$

$

Not available

6

Briggs & Stratton 22097

LOCKWASHER- 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 44624

MOUNT, Vibration

$

$

Not available

8

Briggs & Stratton 51755

CAPSCREW, Hex Head-M10-1.50 x 16mm

$

$

Currently unavailable

9A

Briggs & Stratton 47662F

HOSE, Fuel-20" long

$

$

Currently unavailable

9B

Briggs & Stratton 47662AN

HOSE, Fuel-17" long

$

$

Currently unavailable

9C

Briggs & Stratton 47662B

HOSE, Fuel-3" long

$

$

Not available

10

Briggs & Stratton 70642

MOUNT, Vibration
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 39414

CAPSCREW, Hex Head-M8-1.25 x 35mm
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22142

CAPSCREW, Hex Head-5/16"-18 x 1-3/8"
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 67022

GROMMET, Lead Outlet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 66365D

HOUSING, Engine Adapter
(Superseded to 66365DGS)

$70.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 23541

CAPSCREW, Hex Head-5/16"-18 x 2-1/2"

$

$

Currently unavailable

16

Briggs & Stratton 25433

LUG, Ground

$

$

Not available

17

Briggs & Stratton 74714

ROTOR ASSY

$

$

Currently unavailable

18

Briggs & Stratton 65791

BEARING, Ball
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 65795

RECTIFIER, Battery Charge
(Superseded to 65795GS)

$

$

Not available

20

Briggs & Stratton 75431

BOLT, Rotor-5/16"-24 x 8.87"
(Superseded to 75431GS)

$4.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 74707

STATOR ASSY
(Superseded to 5020883SM)

$9.49

$

In Stock, Qty 5

0

22

Briggs & Stratton 66825

CARRIER, Rear Bearing

$

$

Currently unavailable

23

Briggs & Stratton 66449D

BOLT, Stator

$

$

Currently unavailable

24

Briggs & Stratton 66849

SCREW (Taptite)-M5-0.80 x 16mm
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 66386

HOLDER, Brush
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 67025

COVER, Bearing Carrier

$

$

Currently unavailable

27

Briggs & Stratton 52858

NUT, Flanged Hex-M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 67107

BOARD, Voltage Regulator Circuit
(Superseded to 67107GS)

$302.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 46526

LOCKWASHER-M10

$

$

Not available

30

Briggs & Stratton 24489

SCREW (Taptite)-No. 10 x 3/8"

$

$

Currently unavailable

31

Briggs & Stratton 28740

ELBOW-1/8" NPT x 1/4" Barbed

$

$

Currently unavailable

32

Briggs & Stratton 68342

SPACER, Engine

$

$

Currently unavailable

33

Briggs & Stratton 73078

SUPPORT, Generator

$

$

Currently unavailable

34

Briggs & Stratton 67451

FLATWASHER (Special)-M8

$

$

Currently unavailable

35

Briggs & Stratton 39974

CAPSCREW, Socket Head-1/4"-20 x 1/2"

$

$

Currently unavailable

36

Briggs & Stratton 22129

LOCKWASHER-M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

37

Briggs & Stratton 68740

FILTER, Fuel
(Superseded to 68740GS)

$11.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 74908

SCREW (Taptite)-M5-0.80 x 20mm
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 70644

SCREW, pan Head-M8-1.25 x 20mm
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 71384

VALVE, Fuel Shutoff

$

$

Not available

41

Briggs & Stratton 74728

DECAL, Grounded Neutral
(Superseded to 74728GS)

$5.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 51754

CAPSCREW, Hex Head-M8-1.25 x 12mm
(Superseded to 51754GS)

$2.99

$

Usually ships in 2-12 days

0
