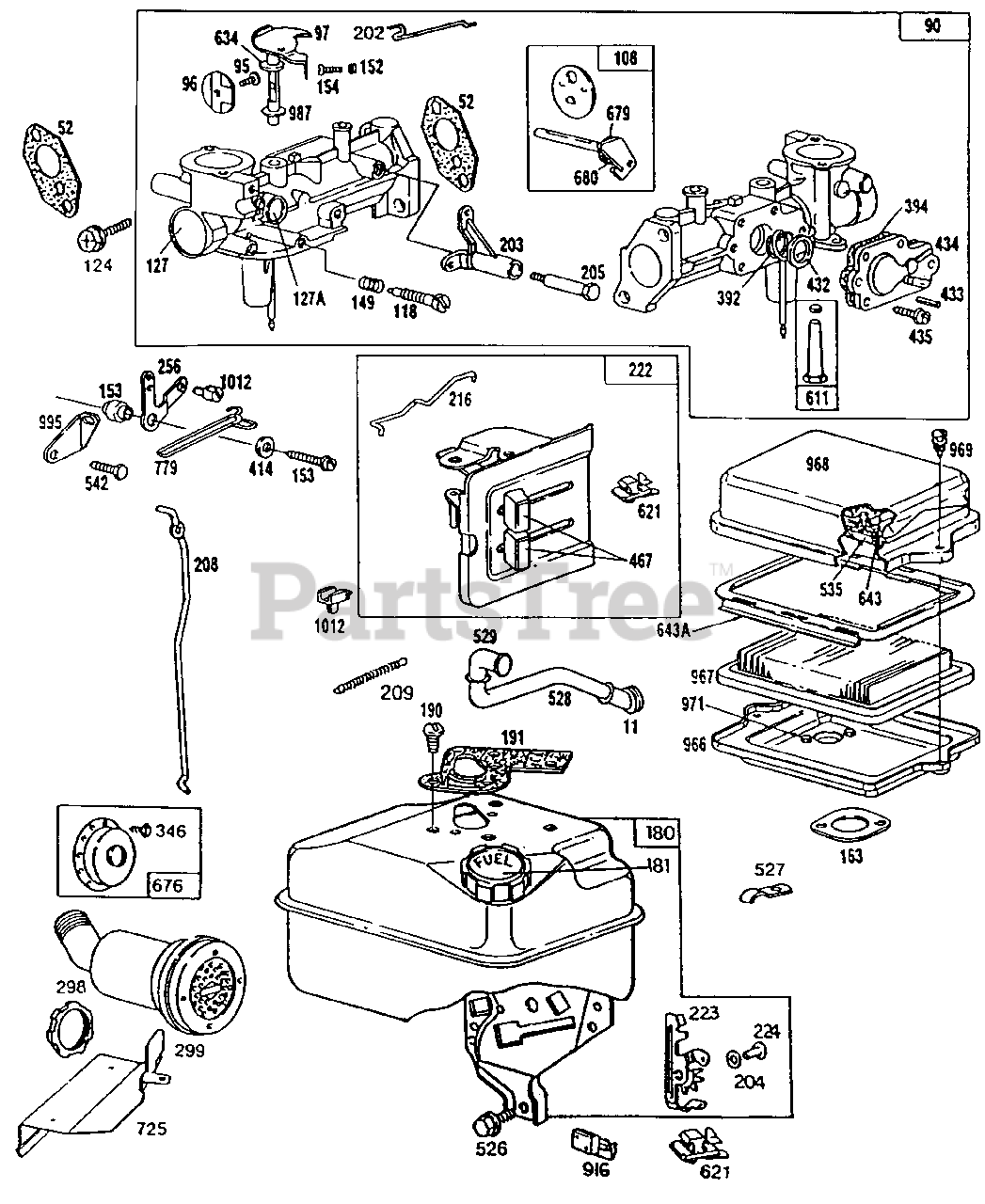

A645 (242A645-100) - Cub Cadet Shredder Engine (1992) B&S 5 HP Carburetor, Fuel Tank, Control Bracket & Air Cleaner Ass'y Parts Diagram

Shredder Engine

B&S 5 HP Carburetor, Fuel Tank, Control Bracket & Air Cleaner Ass'y Parts Diagram

  • Title

11

Cub Cadet BS-66578

Grommet-Breather Tube
(Superseded to BS-692187)

$4.49

$

In Stock, Qty 20+

0

52

Cub Cadet BS-271936

Gasket-Carburetor Mounting (2)
(Superseded to BS-273113S)

$4.49

$

In Stock, Qty 11

0

90

Cub Cadet BS-492611

Carburetor Assembly
(Superseded to BS-498298)

$149.99

$

In Stock, Qty 5

0

95

Cub Cadet BS-93499

Screw-Throttle Valve to Shaft Sem
(Superseded to BS-691437)

$3.99

$

In Stock, only 2 left!

0

96

Cub Cadet BS-223793

Throttle-Carburetor

$

$

Currently unavailable

97

Cub Cadet BS-490048

Shaft and Lever-Throttle

$

$

Not available

108

UNKNOWN

$

$

Not available

118

Cub Cadet BS-231533

Valve-Needle

$

$

Not available

124

Cub Cadet BS-93357

Screw-Hex. Head

$

$

Not available

127

Cub Cadet BS-220352

Plug-Welch
(Superseded to BS-691718)

$13.99

$

In Stock, only 4 left!

0

127A

Cub Cadet BS-223789

Plug-Welch (Mixing Chamber)

$

$

Not available

149

Cub Cadet BS-26336

Spring-Needle Valve

$

$

Not available

152

UNKNOWN

$

$

Not available

153

Cub Cadet BS-490589

Screw Ass'y.

$

$

Not available

154

Cub Cadet BS-93527

Screw-Machine, Rd. Hd.-5-40 x 5/8"

$

$

Not available

163

Cub Cadet BS-271935

Gasket-Air Cleaner Mounting
(Superseded to BS-271935S)

$6.49

$

In Stock, Qty 17

0

180

Cub Cadet BS-492927

Tank Assembly-Fuel
(Superseded to BS-694315)

$

$

Not available

181

Cub Cadet BS-490075

Cap-Fuel Tank
(Superseded to BS-494559)

$15.99

$

In Stock, Qty 8

0

190

Cub Cadet BS-94094

Screw-Fuel Tank Mounting Sem

$

$

Not available

191

Cub Cadet BS-271928

Gasket-Fuel Tank Mounting
(Superseded to BS-692241)

$4.49

$

In Stock, Qty 20+

0

202

Cub Cadet BS-262270

Link-Throttle
(Superseded to BS-691812)

$8.99

$

In Stock, only 1 left!

0

203

Cub Cadet BS-280720

Crank-Bell

$

$

Not available

204

Cub Cadet BS-222962

Bushing-Governor Lever (Flat)

$

$

Currently unavailable

205

Cub Cadet BS-231520

Screw-Shoulder

$

$

Not available

208

Cub Cadet BS-262279

Rod-Control
(Superseded to BS-691813)

$9.49

$

In Stock, Qty 5

0

209

Cub Cadet BS-262283

Spring-Governor
(Superseded to BS-691816)

$10.99

$

In Stock, only 1 left!

0

216

Cub Cadet BS-262359

Link-Choke
(Superseded to BS-691824)

$9.99

$

In Stock, Qty 6

0

222

Cub Cadet BS-490649

Bracket-Control

$67.99

$

Usually ships in 2-12 days

0

223

Cub Cadet BS-223455

Lever-Governor Control

$

$

Currently unavailable

224

Cub Cadet BS-93491

Rivet-Governor Control Lever Mounting

$1.49

$

Usually ships in 2-12 days

0

256

Cub Cadet BS-223813

Bell Crank

$

$

Not available

298

Cub Cadet BS-261409

Lock Nut-Muffler

$

$

Not available

299

Cub Cadet BS-393368

Muffler-Exhaust

$

$

Not available

346

Cub Cadet BS-93705

Screw-Sem
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 20+

0

392

Cub Cadet BS-262328

Spring-Fuel Pump Diaphragm
(Superseded to BS-691823)

$4.99

$

In Stock, Qty 20+

0

394

Cub Cadet BS-270026

Diaphragm

$3.99

$

In Stock, Qty 20+

0

414

Cub Cadet BS-220982

Washer

$

$

Not available

432

Cub Cadet BS-221377

Cap-Spring
(Superseded to BS-690766)

$4.99

$

In Stock, Qty 20+

0

433

Cub Cadet BS-93265

Pin-Diaphragm Cover

$

$

Currently unavailable

434

Cub Cadet BS-210959

Cover-Diaphragm
(Superseded to BS-691713)

$10.99

$

In Stock, Qty 7

0

435

Cub Cadet BS-93141

Screw-Diaphragm Cover

$

$

Not available

467

Cub Cadet BS-280715

Knob-Control
(Superseded to BS-692295)

$9.49

$

In Stock, only 3 left!

0

526

Cub Cadet BS-94409

Screw-Tank Bracket Mounting Sem

$

$

Currently unavailable

527

Cub Cadet BS-223786

Clamp-Breather Tube
(Superseded to BS-691741)

$4.99

$

Usually ships in 2-12 days

0

528

Cub Cadet BS-231550

Tube-Breather

$

$

Not available

529

Cub Cadet BS-67838

Grommet-Breather Tube
(Superseded to BS-692189)

$4.49

$

In Stock, Qty 20+

0

535

Cub Cadet BS-491435

Element-Air Cleaner
(Superseded to BS-491435S)

$4.99

$

In Stock, Qty 20+

0

542

Cub Cadet BS-93572

Screw
(Superseded to 710-0432)

$

$

Not available

611

Cub Cadet BS-391813

Fuel Pipe and Clip Assembly

$

$

Not available

621

Cub Cadet BS-396847

Switch-Stop
(Superseded to BS-692310)

$5.99

$

In Stock, Qty 20+

0

634

Cub Cadet BS-271853

Washer-Throttle Shaft (Foam)
(Superseded to BS-692279)

$3.99

$

In Stock, only 2 left!

0

643

Cub Cadet BS-280737

Retainer-Foam Element

$7.49

$

Usually ships in 2-12 days

0

643A

Cub Cadet BS-280726

Retainer-Air Filter

$

$

Not available

676

Cub Cadet BS-395700

Deflector-Exhaust

$

$

Currently unavailable

679

Cub Cadet BS-270382

Washer Choke Shaft (Foam)
(Superseded to BS-691869)

$3.99

$

In Stock, only 4 left!

0

680

Cub Cadet BS-221839

Washer Choke Shaft (Brass)

$

$

Not available

725

Cub Cadet BS-223867

Shield-Heat

$

$

Not available

779

Cub Cadet BS-262276

Link-Bell Crank

$

$

Not available

916

Cub Cadet BS-280321

Gear Rack-Governor

$

$

Not available

966

Cub Cadet BS-492797

Base-Air Cleaner
(Superseded to BS-494279)

$

$

Not available

967

Cub Cadet BS-491588

Filter-Air
(Superseded to BS-491588S)

$6.49

$

In Stock, Qty 20+

0

968

Cub Cadet BS-223765

Cover-Air Cleaner
(Superseded to BS-791082)

$20.99

$

In Stock, Qty 6

0

969

Cub Cadet BS-490073

Screw-Cover Mtg.
(Superseded to BS-694515)

$5.99

$

In Stock, Qty 13

0

971

Cub Cadet BS-94018

Screw-Air Cleaner
(Superseded to BS-690859)

$3.99

$

In Stock, Qty 9

0

987

Cub Cadet BS-398970

Seal-Throttle Shaft
(Superseded to BS-692279)

$3.99

$

In Stock, only 2 left!

0

995

Cub Cadet BS-223887

Bracket-Link

$

$

Not available

1012

Cub Cadet BS-490507

Link-Retainer

$

$

Not available

Cub Cadet BS-397145

Gasket Set
(Superseded to BS-495603)

$32.99

$

In Stock, Qty 20+

0
