A645 (242A645-100) - Cub Cadet Shredder Engine (1992) B&S 5HP Cyl./Piston/Rod/Oil Filter/Crankcase Cover/Gaskets/Label Kit Parts Diagram

Shredder Engine

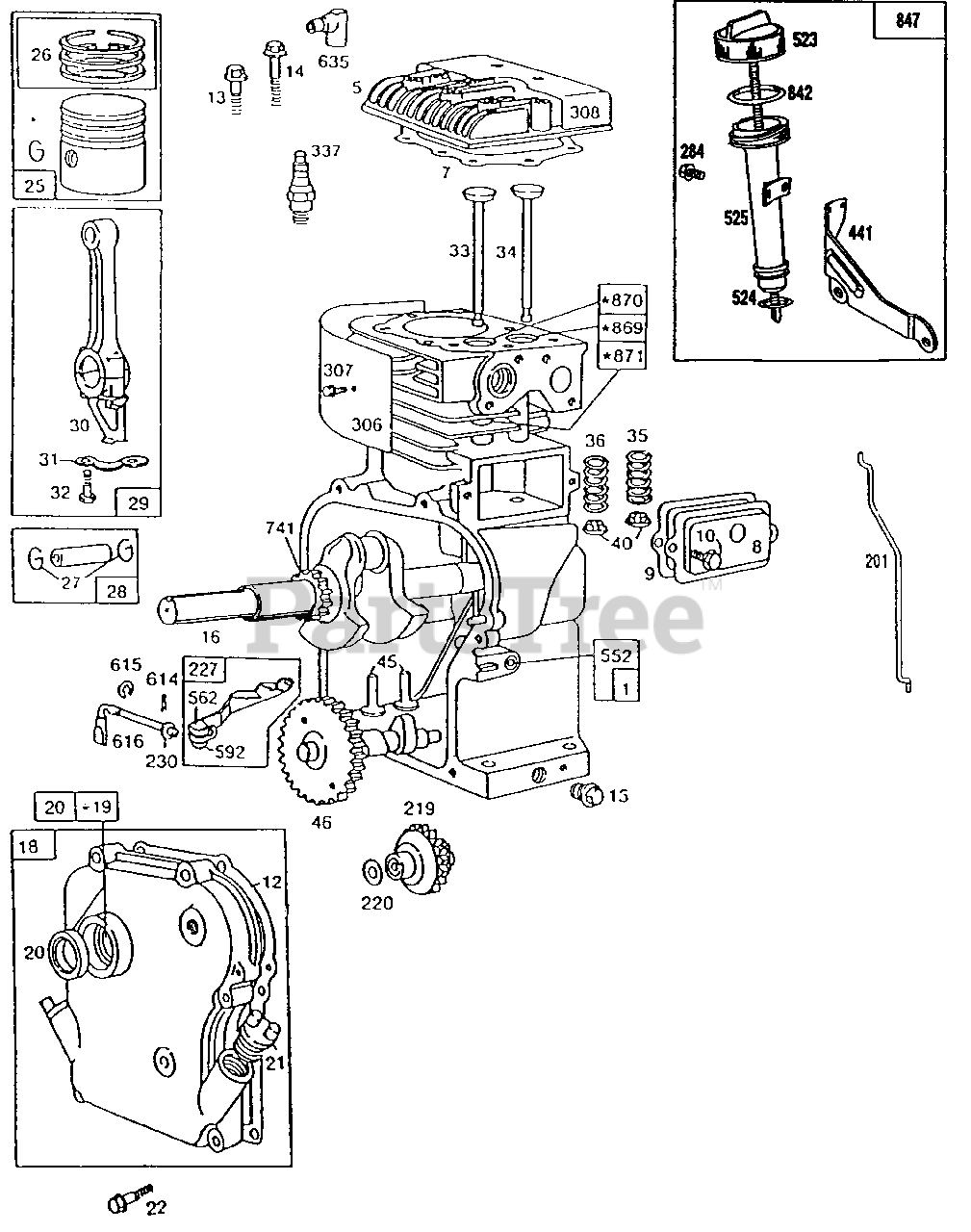

B&S 5HP Cyl./Piston/Rod/Oil Filter/Crankcase Cover/Gaskets/Label Kit Parts Diagram

  • Title

1

Cub Cadet BS-395990

Cylinder Assembly

$

$

Not available

5

Cub Cadet BS-211542

Head--Cylinder

$

$

Not available

7

Cub Cadet BS-272157

Gasket--Cylinder Head
(Superseded to BS-272157S)

$6.47

$

In Stock, Qty 20+

0

8

Cub Cadet BS-294178

Breather--Valve Chamber
(Superseded to BS-791779)

$13.29

$

In Stock, only 3 left!

0

9

Cub Cadet BS-27549

Gasket--Valve Cover

$

$

Not available

10

Cub Cadet BS-93394

Screw--Breather Mtg. Sem
(Superseded to BS-691666)

$3.12

$

In Stock, Qty 5

0

12

Cub Cadet BS-270080

Gasket--Crankcase--.015" Thick (Standard)

$

$

Not available

Cub Cadet BS-270125

Gasket--Crankcase--.005" Thick

$7.70

$

Usually ships in 6-12 days

0

Cub Cadet BS-270126

Gasket--Crankcase--.009" Thick

$7.03

$

In Stock, only 1 left!

0

13

Cub Cadet BS-94221

Screw--Cylinder Head (2-3/32" Long)
(Superseded to BS-691640)

$2.90

$

In Stock, Qty 15

0

14

Cub Cadet BS-93369

Screw--Cylinder Head (2-15/32" Long)

$

$

Not available

15

Cub Cadet BS-91249

Plug--Pipe, 1/4" Std. Square Head
(Superseded to BS-691686)

$4.35

$

Usually ships in 6-12 days

0

16

Cub Cadet BS-492926

Crankshaft

Note: (To Replace Crankshaft Gear Pin, Order Part No. BS-230978.)

$

$

Not available

18

Cub Cadet BS-493916

Cover Ass'y.--Crankcase

$

$

Not available

19

Cub Cadet BS-297603

Bushing--Crankcase Cover

Note: (Requires special tools for installation.)

$

$

Not available

20

Cub Cadet BS-298504

Seal--Oil
(Superseded to BS-495307S)

$7.59

$

In Stock, only 2 left!

0

21

Cub Cadet BS-66768

Plug--Oil Filler
(Superseded to BS-281658S)

$3.46

$

In Stock, Qty 20+

0

22

Cub Cadet BS-93032

Screw--Crankcase Cover Mounting Sem

$

$

Not available

25

Cub Cadet BS-298904

Piston Ass'y.--Standard

$

$

Not available

Cub Cadet BS-298905

Piston Ass'y.--.010" O.S.

$

$

Not available

Cub Cadet BS-298906

Piston Ass'y.--.020" O.S.

$

$

Not available

Cub Cadet BS-298907

Piston Ass'y.--.030" O.S.

$

$

Not available

26

Cub Cadet BS-298982

Ring Set--Standard Piston

Note: For Chrome Piston Ring Set--Standard Size--Order Part No. BS-299742.)

$41.36

$

In Stock, Qty 8

0

Cub Cadet BS-298983

Ring Set--.010" O.S. Piston

Note: For Chrome Piston Ring Set--Standard Size--Order Part No. BS-299742.)

$

$

Not available

Cub Cadet BS-298984

Ring Set--.020" O.S. Piston

Note: For Chrome Piston Ring Set--Standard Size--Order Part No. BS-299742.)

$30.73

$

Usually ships in 6-12 days

0

Cub Cadet BS-298985

Ring Set--.030" O.S. Piston

Note: For Chrome Piston Ring Set--Standard Size--Order Part No. BS-299742.)

$

$

Not available

27

Cub Cadet BS-26026

Lock--Piston Pin

$

$

Not available

28

Cub Cadet BS-298909

Pin Ass'y.--Piston--Standard

$6.92

$

In Stock, only 3 left!

0

Cub Cadet BS-298908

Pin Ass'y.--Piston--.005" O.S.

$

$

Not available

29

Cub Cadet BS-299430

Rod Ass'y.--Connecting

Note: For Connecting Rod with .020" undersize Crankpin Bore--Order No. BS-390459.

$35.21

$

In Stock, only 2 left!

0

30

Cub Cadet BS-221890

Dipper--Connecting Rod
(Superseded to BS-691759)

$7.14

$

Usually ships in 6-12 days

0

31

Cub Cadet BS-221876

Lock--Conn. Rod Screw

$3.79

$

Usually ships in 6-12 days

0

32

Cub Cadet BS-92296

Screw-- Connecting Rod

$

$

Not available

33

Cub Cadet BS-211119

Valve--Exhaust
(Superseded to BS-211119S)

$20.34

$

In Stock, only 2 left!

0

34

Cub Cadet BS-261044

Valve--Intake
(Superseded to BS-261044S)

$

$

Not available

35

Cub Cadet BS-260552

Spring--Intake Valve

$4.35

$

In Stock, Qty 10

0

36

Cub Cadet BS-26478

Spring--Exhaust Valve

$5.47

$

In Stock, Qty 13

0

40

Cub Cadet BS-93312

Retainer--Valve Spring
(Superseded to BS-692194)

$4.80

$

In Stock, Qty 20+

0

45

Cub Cadet BS-260642

Tappet--Valve

$

$

Not available

46

Cub Cadet BS-212733

Gear--Cam

$

$

Not available

201

Cub Cadet BS-262280

Link--Governor

$

$

Not available

219

Cub Cadet BS-391737

Gear--Governor

$30.18

$

In Stock, only 1 left!

0

220

Cub Cadet BS-221551

Washer--Thrust
(Superseded to BS-691724)

$4.01

$

In Stock, only 1 left!

0

227

Cub Cadet BS-490374

Lever Ass'y.--Governor

$

$

Not available

230

Cub Cadet BS-222450

Washer--Governor Lever
(Superseded to BS-691691)

$3.12

$

In Stock, only 3 left!

0

284

Cub Cadet BS-94419

Screw--Self-Tapping
(Superseded to BS-691693)

$3.01

$

In Stock, Qty 6

0

306

Cub Cadet BS-221511

Shield--Cylinder

$

$

Currently unavailable

307

Cub Cadet BS-93758

Screw--Cylinder Shield Mounting Sem

$

$

Not available

308

Cub Cadet BS-221512

Cover--Cylinder Head

$21.79

$

Usually ships in 6-12 days

0

337

Cub Cadet 759-3338

Plug--Spark 1-7/8" High-- 48 M.M.

$3.02

$

In Stock, Qty 20+

0

441

Cub Cadet BS-224240

Bracket-Oil Fill

$

$

Currently unavailable

523

Cub Cadet BS-492249

Cap-Oil Filler

$

$

Not available

524

Cub Cadet BS-271485

Gasket-Oil Filler Cap

$

$

Not available

525

Cub Cadet BS-280508

Tube-Oil Filler

$

$

Not available

552

Cub Cadet BS-231079

Bushing--Governor Crank (1/4" ID)

$

$

Not available

562

Cub Cadet BS-92613

Bolt--Governor Lever

$

$

Not available

592

Cub Cadet BS-231082

Nut--Hex.--10-24

$

$

Not available

614

UNKNOWN

$

$

Not available

615

Cub Cadet BS-93307

Retainer--E-Ring

$4.35

$

In Stock, Qty 5

0

616

Cub Cadet BS-231077

Crank--Governor (1/4" Dia.)

$

$

Currently unavailable

635

UNKNOWN

$

$

Not available

741

Cub Cadet BS-261696

Gear-Timing

$40.80

$

Usually ships in 6-12 days

0

842

UNKNOWN

$

$

Not available

847

UNKNOWN

$

$

Not available

869

Cub Cadet BS-211787

Seat--Intake Valve (Standard)

$

$

Not available

870

Cub Cadet BS-211172

Seat--Exhaust Valve (Standard)

Note: (For Options see Repair Manual.)

$

$

Not available

871

Cub Cadet BS-262001

Guide--Exhaust Valve

Note: (BS-63709 Guide--Intake Valve. See Repair Instruction Manual.)

$10.83

$

Usually ships in 6-12 days

0

Cub Cadet BS-230978

Crankshaft Gear Pin

$

$

Not available

Cub Cadet BS-299742

Chrome Piston Ring Set (Standard Size)

$

$

Not available

Cub Cadet BS-63709

Guide--Intake Valve.

$11.50

$

In Stock, only 1 left!

0

Cub Cadet BS-397145

Gasket Set
(Superseded to BS-495603)

$32.41

$

In Stock, Qty 11

0
