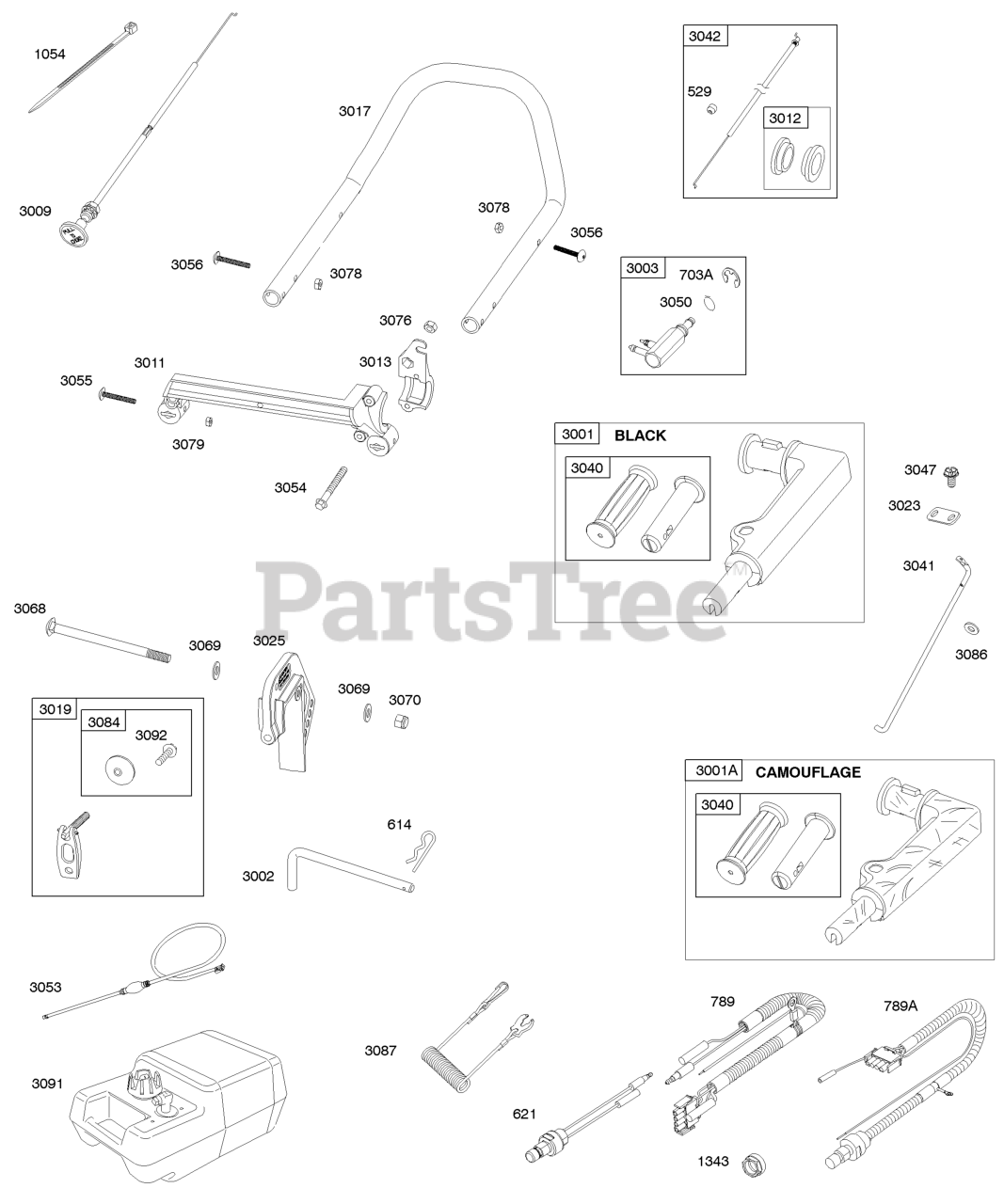

AA0101-0020-01 - Briggs & Stratton Outboard Engine Handles, Fuel Tank, Tiller, Transom, Wire Harness Parts Diagram

Outboard Engine

Handles, Fuel Tank, Tiller, Transom, Wire Harness Parts Diagram

  • Title

529

Briggs & Stratton 861559

Grommet

Note: (Throttle Cable)

$5.99

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 861215

Pin-Cotter

Note: (Tilt Rod)

$5.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 861552

Switch-Stop

Note: Used After Code Date 03061500

$37.99

$

Usually ships in 2-12 days

0

703A

Briggs & Stratton 861229

Clip

Note: (Fuel Fitting)

$6.49

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 861553

Harness-Wiring

Note: Used After Code Date 03061500

$53.99

$

Usually ships in 2-12 days

0

789A

Briggs & Stratton 861293

Harness-Wiring

Note: Used Before Code Date 03061600

$53.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

Tie-Cable

Note: (White)

$4.49

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 861206

Tie-Cable

Note: (Black)

$4.49

$

In Stock, only 1 left!

0

1343

Briggs & Stratton 861531

Nut

Note: (Stop Switch)

$3.49

$

Usually ships in 2-12 days

0

3001

Briggs & Stratton 861528

Tiller

Note: (Black)

$198.99

$

Usually ships in 2-12 days

0

3001A

Briggs & Stratton 861529

Tiller
(Superseded to 861528)

Note: (Camouflage)

$198.99

$

Usually ships in 2-12 days

0

3002

Briggs & Stratton 861216

Rod-Tilt

$27.99

$

Usually ships in 2-12 days

0

3003

Briggs & Stratton 861230

Fitting-Fuel

$

$

Not available

3009

Briggs & Stratton 861226

Cable-Choke

$36.99

$

Usually ships in 2-12 days

0

3011

Briggs & Stratton 861219

Handle-Front

Note: (Black)

$136.99

$

Usually ships in 2-12 days

0

3011

Briggs & Stratton 861562

Handle-Front

Note: (Camouflage)

$65.99

$

Usually ships in 2-12 days

0

3012

Briggs & Stratton 861265

Isolator

$6.49

$

Usually ships in 2-12 days

0

3013

Briggs & Stratton 861222

Pivot-Housing

Note: (Black)

$65.99

$

Usually ships in 2-12 days

0

3013

Briggs & Stratton 861563

Pivot-Housing

Note: (Camouflage)

$

$

Not available

3017

Briggs & Stratton 861262

Handle-Rear

Note: (Black)

$198.99

$

Usually ships in 2-12 days

0

3017

Briggs & Stratton 861561

Handle-Rear

Note: (Camouflage)

$167.99

$

Usually ships in 2-12 days

0

3019

Briggs & Stratton 861244

Clamp/Handle

$127.99

$

Usually ships in 2-12 days

0

3023

Briggs & Stratton 861252

Plate-Retainer

Note: (Transmission Shift Lever)

$4.49

$

Usually ships in 2-12 days

0

3025

Briggs & Stratton 861582

Bracket-Transom

Note: (Port Or Starboard)(Marine Green)

$116.99

$

Usually ships in 2-12 days

0

3025

Briggs & Stratton 861246

Bracket-Transom

Note: (Port or Starboard)(Black)

$142.99

$

Usually ships in 2-12 days

0

3040

Briggs & Stratton 861301

Handle-Throttle

$17.99

$

Usually ships in 2-12 days

0

3041

Briggs & Stratton 861299

Rod-Throttle

$31.99

$

Usually ships in 2-12 days

0

3042

Briggs & Stratton 861560

Cable-Throttle

$29.99

$

Usually ships in 2-12 days

0

3047

Briggs & Stratton 861253

Screw

Note: (Retainer Plate) (Throttle Rod)

$4.49

$

Usually ships in 2-12 days

0

3050

Briggs & Stratton 861297

Seal-O Ring

Note: (Fuel Fitting)

$

$

Not available

3053

Briggs & Stratton 861295

Fuel Line/Primer Assembly

$198.99

$

In Stock, only 1 left!

0

3054

Briggs & Stratton 861214

Screw

Note: (Housing Pivot)

$4.49

$

Usually ships in 2-12 days

0

3055

Briggs & Stratton 861260

Screw

Note: (Front Handle)

$3.99

$

Usually ships in 2-12 days

0

3056

Briggs & Stratton 861260

Screw

Note: (Rear Handle)

$3.99

$

Usually ships in 2-12 days

0

3068

Briggs & Stratton 861248

Bolt

Note: (Transom Bracket)

$17.99

$

Usually ships in 2-12 days

0

3069

Briggs & Stratton 861247

Washer

Note: (Transom Bracket)

$1.99

$

Usually ships in 2-12 days

0

3070

Briggs & Stratton 861255

Nut

Note: (Transom Bracket)

$4.49

$

Usually ships in 2-12 days

0

3076

Briggs & Stratton 861239

Nut

Note: (Housing Pivot)

$2.99

$

Usually ships in 2-12 days

0

3078

Briggs & Stratton 861239

Nut

Note: (Rear Handle)

$2.99

$

Usually ships in 2-12 days

0

3079

Briggs & Stratton 861239

Nut

Note: (Front Handle)

$2.99

$

Usually ships in 2-12 days

0

3084

Briggs & Stratton 861310

Clamp Washer/Screw Set

$16.99

$

Usually ships in 2-12 days

0

3086

Briggs & Stratton 861240

Washer

Note: (Throttle Rod)

$3.49

$

Usually ships in 2-12 days

0

3087

Briggs & Stratton 861209

Lanyard

$24.99

$

Usually ships in 2-12 days

0

3091

Briggs & Stratton 861449

Tank-Fuel

Note: (Plastic)

$133.99

$

Usually ships in 2-12 days

0

3092

Briggs & Stratton 861253

Screw

Note: (Clamp Washer/Screw Set) (Clamp Washer/Screw Set)

$4.49

$

Usually ships in 2-12 days

0
