AC 22042 (2691089-00) - Allis-Chalmers 42" Lawn Tractor, 20hp Engine Group - 20HP Parts Diagram

42" Lawn Tractor, 20hp

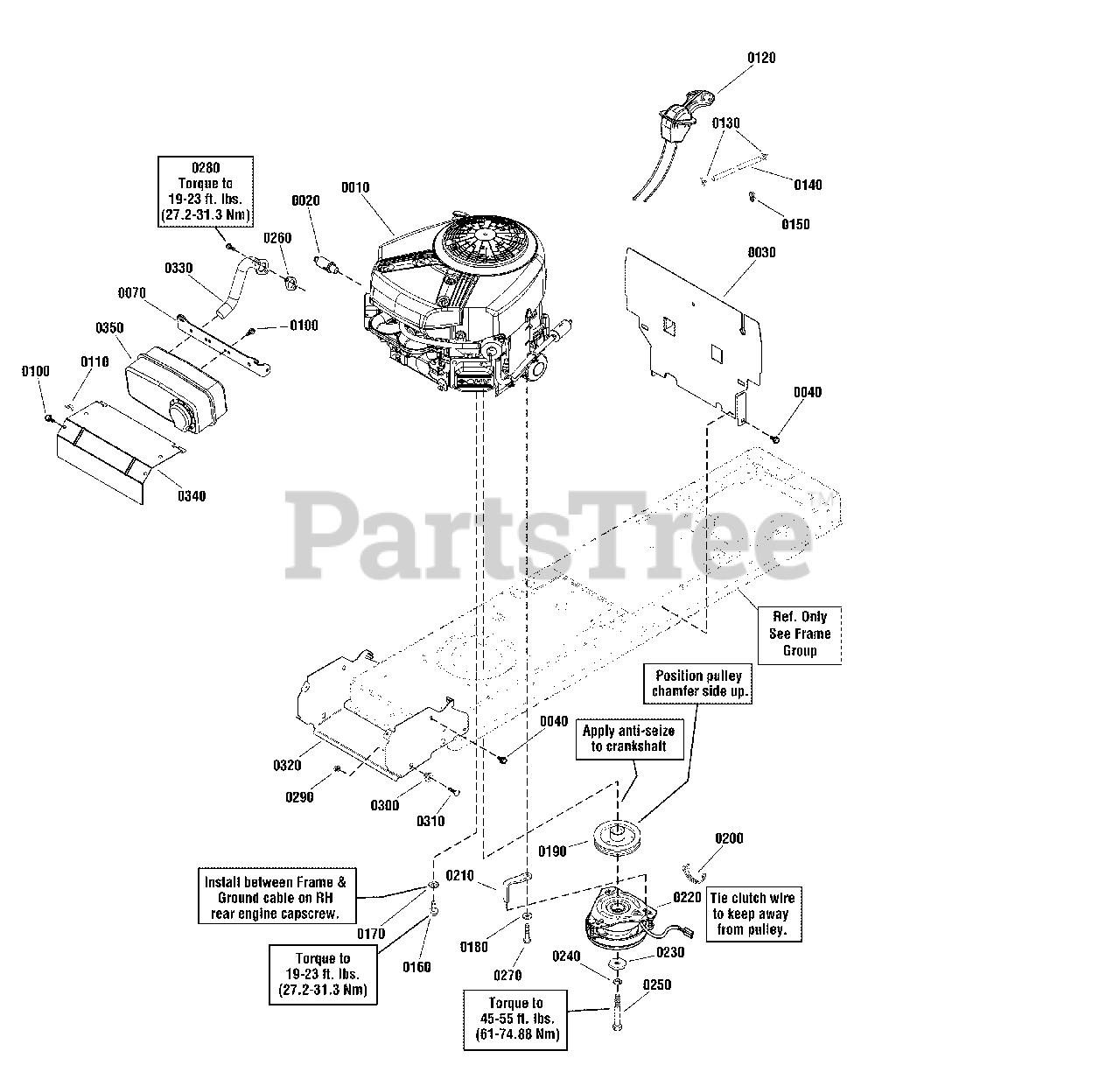

Engine Group - 20HP Parts Diagram

  • Title

0010

Simplicity 33M677-0110-G5

* ENGINE, 20 HP Pro Series, Twin

Note: (Engine Model: 33M677-0110-G5)

$

$

Not available

0020

Simplicity 798980

OIL DRAIN ASSEMBLY

Note: (Optional Accessory)

$

$

Not available

0030

Simplicity 1728058BM

HEAT SHIELD
(Superseded to 1728058BMYP)

$19.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1930601

SCREW, Hex Washer Head Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 16

0

0070

Simplicity 1727976BM

SUPPORT, Muffler
(Superseded to 1727976BMYP)

$15.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1925003

SCREW, Hex Washer Head Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0110

Simplicity 2834683

CLIP, Wire, 1/4 Dia.
(Superseded to 703176)

$3.49

$

Usually ships in 2-12 days

0

0120

Simplicity 1751734

CONTROL ASSEMBLY, Throttle, Choke-A-Matic
(Superseded to 1751734YP)

$62.99

$

In Stock, only 1 left!

0

0130

Simplicity 93053

CLAMP, Hose, 1/2
(Superseded to 791850)

$3.49

$

In Stock, Qty 12

0

0140

Simplicity 1734993

HOSE, Fuel, Low Perm, 1/4ID x 1/2OD x 55 Lg
(Superseded to 845503)

$37.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1730268

CLIP, Hose, Plastic Push In, 1/2 Dia.
(Superseded to 1730268SM)

$3.99

$

Usually ships in 2-12 days

0

0160

Simplicity 2827187

SCREW, Hex Washer Head Taptite, 3/8-16 x 1
(Superseded to 1927187SM)

$4.49

$

In Stock, only 4 left!

0

0170

Simplicity 2820427

LOCKWASHER, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

0180

Simplicity 1924940

WASHER, 3/8 x 7/8OD
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0190

Simplicity 1732576

PULLEY & HUB ASSEMBLY, Engine
(Superseded to 1732576SM)

$44.99

$

In Stock, only 2 left!

0

0200

Simplicity 2825094

TIE, Self Locking, 7-5/16
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0210

Simplicity 1737421BM

GUIDE, Belt
(Superseded to 1737421AYP)

$12.99

$

In Stock, Qty 6

0

0220

Simplicity 1736105

CLUTCH, Electric, Mid Ogura
(Superseded to 1736105SM)

$397.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1708264

WASHER, Hex, 29/64ID x 1-1/2
(Superseded to 1708264SM)

$8.99

$

In Stock, only 2 left!

0

0240

Simplicity 1918199

LOCKWASHER, Spring, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 7

0

0250

Simplicity 1960649

CAPSCREW, Hex Head, 7/16-20 x 3-1/2 G5
(Superseded to 1960649SM)

$7.99

$

Usually ships in 2-12 days

0

0260

Simplicity 1731214

GASKET, Exhaust
(Superseded to 1731214SM)

$4.99

$

Usually ships in 2-12 days

0

0270

Simplicity 2828635

SCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/4
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

0280

Simplicity 94480

SCREW, Hex Sems Lock Washer, 5/16-18 x 7/8
(Superseded to 690341)

$5.99

$

In Stock, only 3 left!

0

0290

Simplicity 1931277

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

0300

Simplicity 1728086

PIVOT, Hood
(Superseded to 1728086SM)

$6.49

$

In Stock, Qty 9

0

0310

Simplicity 1931335

BOLT, Carriage, 5/16-18 x 1, G5
(Superseded to 703800)

$3.99

$

In Stock, Qty 19

0

0320

Simplicity 1727982BM

SUPPORT, Muffler & Hood Pivot Ecoat
(Superseded to 1727982ASM)

$74.99

$

Usually ships in 2-12 days

0

0330

Simplicity 1728959

PIPE, Exhaust 1-1/8OD With Flange
(Superseded to 1728959SM)

$

$

Not available

0340

Simplicity 1727996BM

HEAT SHIELD, Single
(Superseded to 1727996BMYP)

$45.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1727993

MUFFLER, B&S Single
(Superseded to 1727993SM)

$96.99

$

In Stock, only 2 left!

0
