AC 23420 (2690874) - Allis-Chalmers 42" Lawn Tractor, 23hp Wheels & Tires Group Parts Diagram

42" Lawn Tractor, 23hp

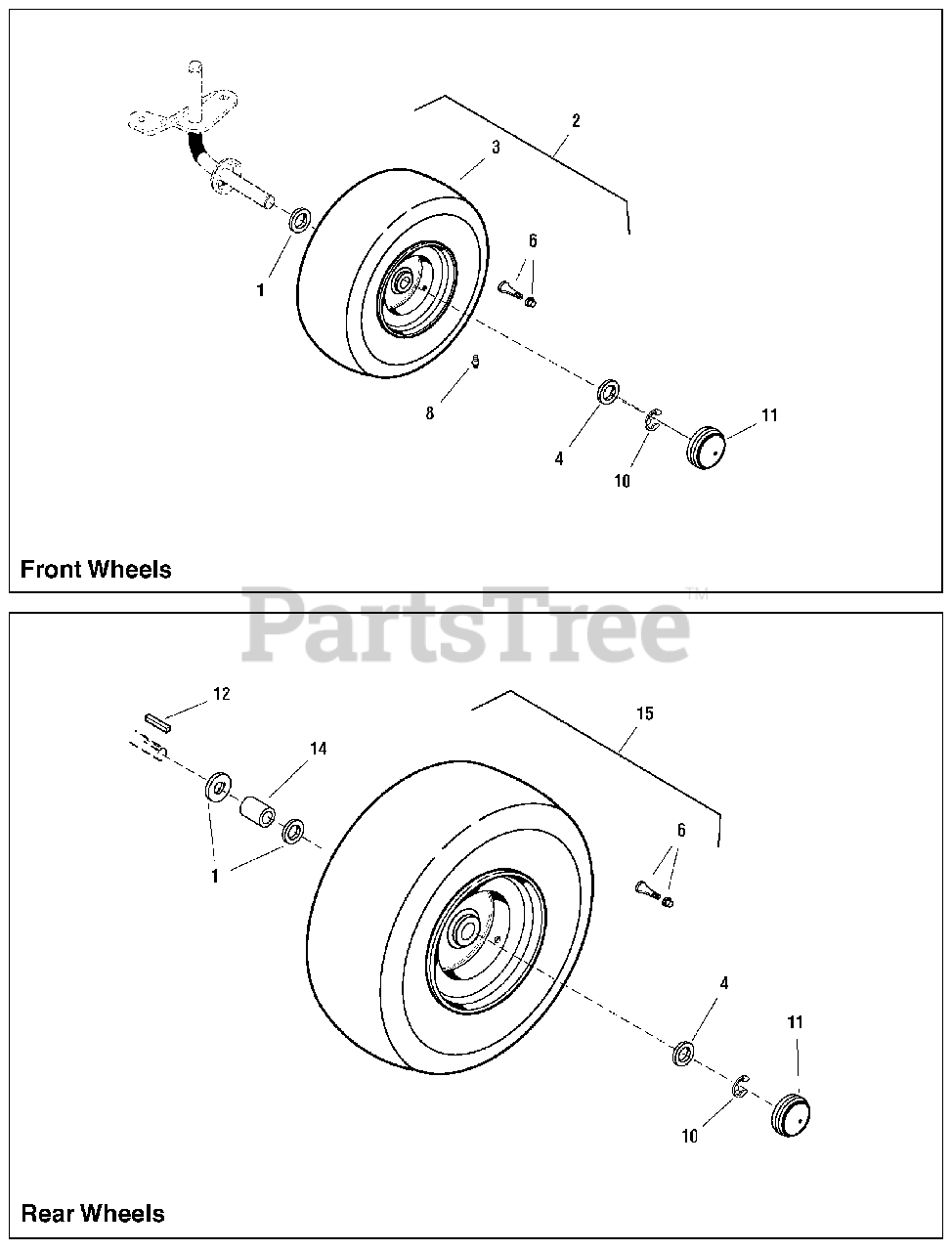

Wheels & Tires Group Parts Diagram

  • Title

1

Simplicity 722598

WASHER, Flat, 3/4 x 1-1/4 OD
(Superseded to 17X160MA)

$4.99

$

In Stock, only 4 left!

0

2

Simplicity 1729708SM

WHEEL&TIRE ASSEMBLY, Front

$168.99

$

Usually ships in 2-12 days

0

3

Simplicity 1731951SM

TIRE, 15 X 6.00 - 6 Turf Rider

$134.99

$

In Stock, Qty 7

0

4

Simplicity 722620

WASHER, Flat, .765 x 1.862
(Superseded to 17X195MA)

$4.99

$

In Stock, Qty 20+

0

6

Simplicity 2172353SM

VALVE STEM AND CAP
(Superseded to 024373MA)

$8.49

$

Usually ships in 2-12 days

0

8

Simplicity 2812808SM

FITTING, Lube

$4.99

$

In Stock, Qty 20+

0

10

Simplicity 720010

E-RING
(Superseded to 0011X3MA)

$5.99

$

In Stock, Qty 17

0

11

Simplicity 721318

HUB CAP
(Superseded to 094618MA)

$5.99

$

In Stock, Qty 20+

0

12

Simplicity 720258

KEY, Square, 3/16
(Superseded to 021553MA)

$5.49

$

In Stock, Qty 14

0

14

Simplicity 1730181SM

SPACER

$9.99

$

Usually ships in 2-12 days

0

15

Simplicity 7101563YP

WHEEL & TIRE ASSEMBLY, 20X10.0-8, Rear

$290.99

$

Usually ships in 2-12 days

0
